NexperiaDatasheet (PDF)

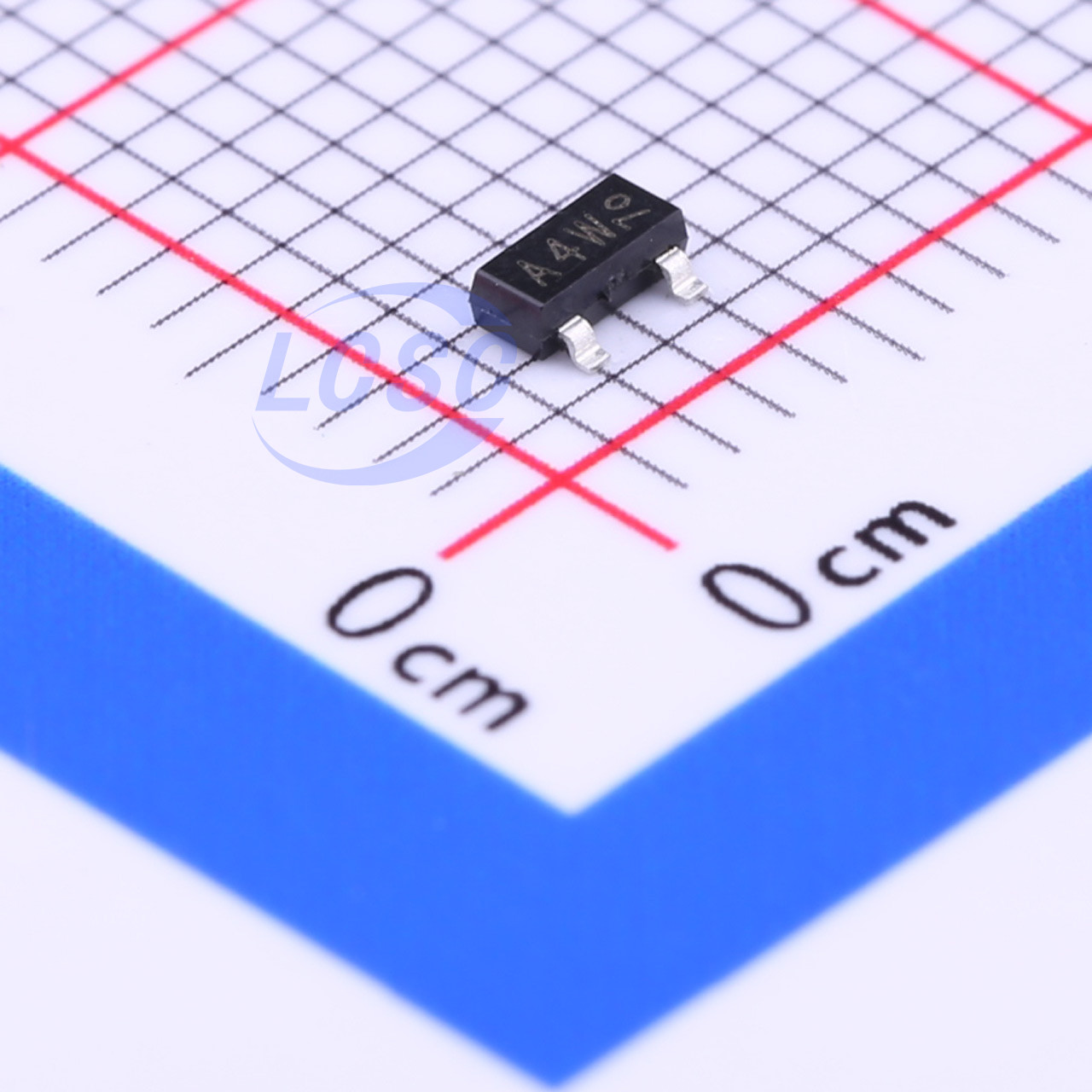

BAV70,215
Diode Array 1 Pair Common Cathode 100V 215mA Surface Mount SOT-23
PopularSOT-23ROHS3 CompliantActive
DIODE ARR GP 100V 215mA SOT-23
- Manufacturer
- Nexperia
- Manufacturer part #
- BAV70,215
- Store part #
- C2501
- Package / case
- SOT-23
- Category
- Diode Arrays
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,27,600 in stock
#C2501
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.51 | ₹75.50 |
| 500+ | ₹1.12 | ₹560.00 |
| 3,000+ | ₹0.9658 | ₹2,897.40 |
| 6,000+ | ₹0.8335 | ₹5,001.00 |
| 24,000+ | ₹0.7806 | ₹18,734.40 |
| 51,000+ | ₹0.7409 | ₹37,785.90 |
50 × ₹1.51
₹75.50
excl. GST
₹89.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAV70,215
₹75.50 for 50 + GST
Specifications
- Non-Repetitive Peak Forward Surge Current
- 4A
- Diode Configuration
- 1 Pair Common Cathode
- Current - Rectified
- 215mA
- Reverse Recovery Time (trr)
- 4ns
- Pd - Power Dissipation
- 250mW
- Voltage - DC Reverse(Vr)
- 100V
- Reverse Leakage Current (Ir)
- 500nA@80V
- Voltage - Forward(Vf@If)
- 1.25V@150mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.017 g
Overview
High-speed switching double diode, encapsulated in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
Applications
- High-speed switching
- General-purpose switching
Key features
- High switching speed: tr ≤ 4 ns
- Low capacitance: Cd ≤ 1.5 pF
- Low leakage current
- Reverse voltage: VR ≤ 100 V
- Small SMD plastic package
