NexperiaDatasheet (PDF)

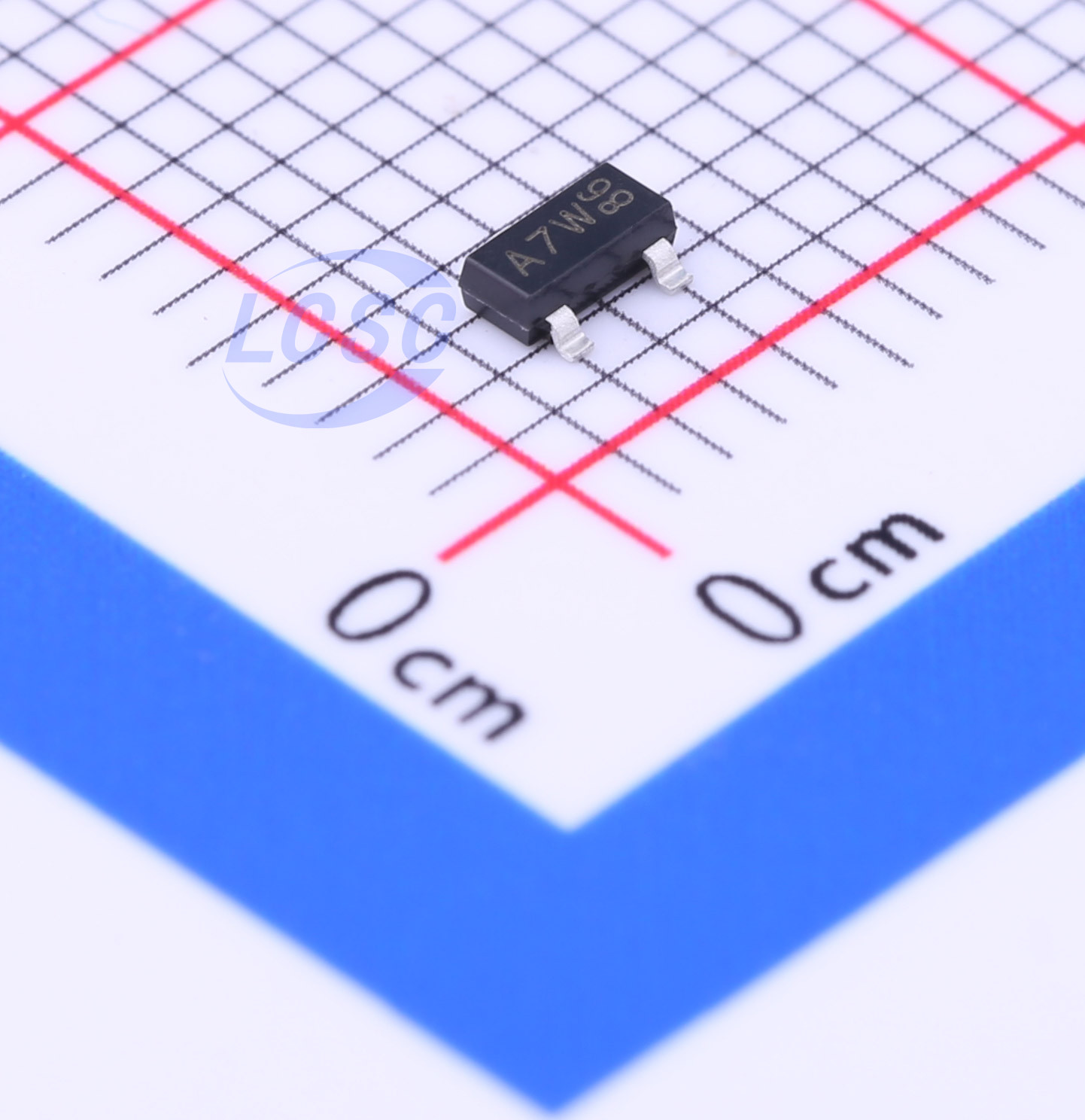

BAV99,215
Diode Array 1 Pair Series Connection 100V 215mA Surface Mount SOT-23
PopularSOT-23ROHS3 CompliantActive
DIODE ARR GP 100V 215mA SOT-23
- Manufacturer
- Nexperia
- Manufacturer part #
- BAV99,215
- Store part #
- C2500
- Package / case
- SOT-23
- Category
- Diode Arrays
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,87,650 in stock
#C2500
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.63 | ₹81.50 |
| 500+ | ₹1.23 | ₹615.00 |
| 3,000+ | ₹1.05 | ₹3,150.00 |
| 6,000+ | ₹0.9129 | ₹5,477.40 |
| 24,000+ | ₹0.860 | ₹20,640.00 |
| 51,000+ | ₹0.8203 | ₹41,835.30 |
50 × ₹1.63
₹81.50
excl. GST
₹96.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAV99,215
₹81.50 for 50 + GST
Specifications
- Non-Repetitive Peak Forward Surge Current
- 4A
- Diode Configuration
- 1 Pair Series Connection
- Current - Rectified
- 125mA
- Reverse Recovery Time (trr)
- 4ns
- Pd - Power Dissipation
- 250mW
- Voltage - DC Reverse(Vr)
- 100V
- Reverse Leakage Current (Ir)
- 500nA@80V
- Voltage - Forward(Vf@If)
- 1.25V@150mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.082 g
Overview
High-speed switching diode in a small SOT23 (TO-236AB) SMD plastic package.
Applications
- High-speed switching
- Reverse polarity protection
- General-purpose switching
Key features
- High switching speed: trr ≤ 4 ns
- Low capacitance: Cd ≤ 1.5 pF
- Low leakage current
- Reverse voltage: VR ≤ 100V
- Compact SMD plastic package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMBD7000,235#C552694Nexperia · SOT-23 | Nexperia | SOT-23 | 25 | ₹13.28 · 25 in stock | View |
 | PMBD7000,215#C81174Nexperia · SOT-23 | Nexperia | SOT-23 | 45,000 | ₹2.87 · 45,000 in stock | View |
 | BAV199#C699080YANGJIE · SOT-23(TO-236) | YANGJIE | SOT-23(TO-236) | 14,160 | ₹4.90 · 14,160 in stock | View |
 | MMBD7000_R1_00301#C47088740PANJIT · SOT-23 | PANJIT | SOT-23 | 2,700 | ₹2.26 · 2,700 in stock | View |
 | BAV99LT1G#C5178965FUXINSEMI · SOT-23 | FUXINSEMI | SOT-23 | 1,09,750 | ₹1.91 · 1,09,750 in stock | View |
