JSMSEMIDatasheet (PDF)

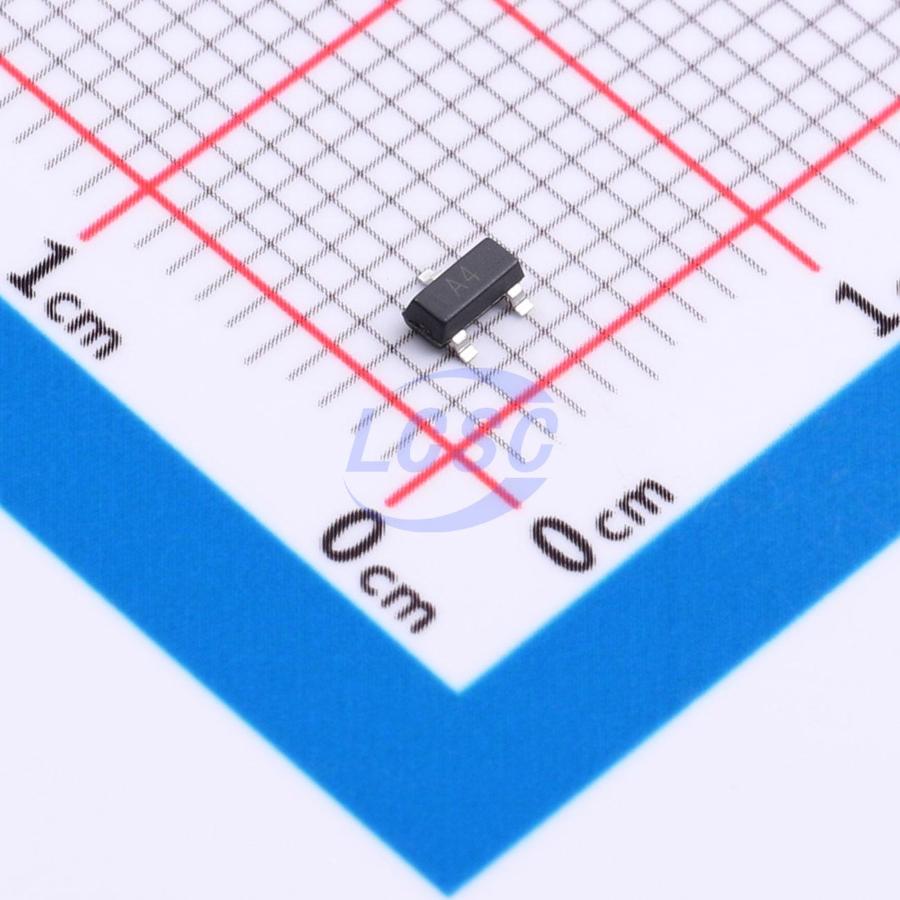

BAV70,215-JSM
6ns 1 Pair Common Cathode 70V 1.25V@150mA 200mA SOT-23 Single Diodes RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- BAV70,215-JSM
- Store part #
- C49369794
- Package / case
- SOT-23
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,350 in stock
#C49369794
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.23 | ₹61.50 |
| 500+ | ₹0.979 | ₹489.50 |
| 3,000+ | ₹0.8335 | ₹2,500.50 |
| 6,000+ | ₹0.7409 | ₹4,445.40 |
| 24,000+ | ₹0.6483 | ₹15,559.20 |
| 51,000+ | ₹0.6086 | ₹31,038.60 |
50 × ₹1.23
₹61.50
excl. GST
₹72.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAV70,215-JSM
₹61.50 for 50 + GST
Specifications
- Reverse Recovery Time (trr)
- 6ns
- Diode Configuration
- 1 Pair Common Cathode
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 70V
- Voltage - Forward(Vf@If)
- 1.25V@150mA
- Reverse Leakage Current (Ir)
- 2.5uA@70V
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.031 g
Overview
Key features
- AEC-Q101 qualified and PPAP capable
- S prefix denotes suitability for automotive and other applications requiring controlled production site and change requirements
- Lead-free, halogen-free/bromine-free flame retardant, RoHS compliant
