ROHM

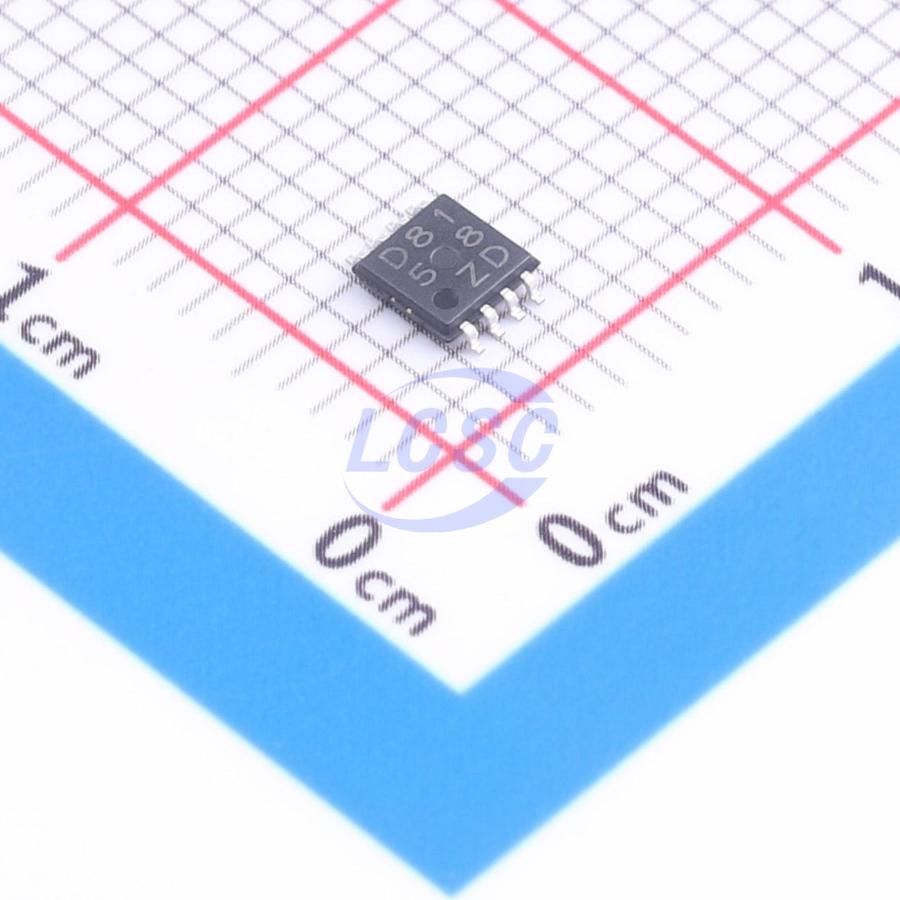

BD8158FVM-TR

600kHz Boost Adjustable 2.1V~15V 1.4A MSOP-8-2.8mm Voltage Regulators - DC DC Switching Regulators RoHS

MSOP-8-2.8mmROHS3 CompliantActive

Manufacturer: ROHM
Manufacturer part #: BD8158FVM-TR
Store part #: C2070812
Package / case: MSOP-8-2.8mm
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25 in stock

#C2070812

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹125.76	₹125.76
10+	₹122.72	₹1,227.20
30+	₹120.55	₹3,616.50
100+	₹118.38	₹11,838.00

Quantity (min 1)

1 × ₹125.76

₹125.76

excl. GST

₹148.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

BD8158FVM-TR

₹125.76 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TA)
Frequency - Switching: 600kHz
Function: Boost
Number of Outputs: 1
Features: Overcurrent Protection;Adjustable soft-start;External compensation
Topology: Boost;SEPIC
Output Type: Adjustable
Operating Voltage: 2.1V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 2.1V~15V
Output Current: 1.4A
Quiescent Current: 0uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.43 g

Overview

BD8152FVM and BD8158FVM are 1-Channel boost converter which uses low voltage FET. The input voltage is 2.5V to 5.5V for BD8152FVM and 2.1V to 5.5V for BD8158FVM achieving a low power consumption. The high accuracy feedback voltage (±1%) is established and the brightness dispersion of TFT-LCD panel is suppressed.
