ROHM

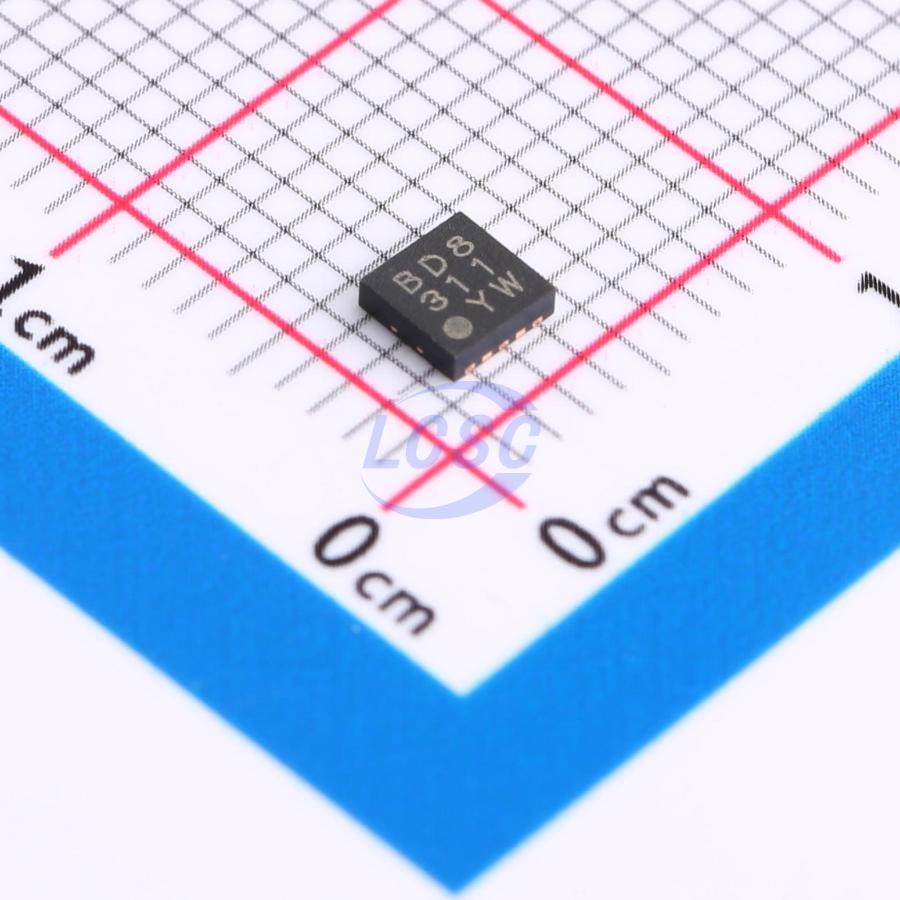

BD8311NUV-E2

1.2MHz Boost Adjustable 2.5A 4V~11V VSON-10-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS

VSON-10-EP(3x3)ROHS3 CompliantActive

3.5V to 11V, Integrated 2.5A MOSFET Boost Converter

Manufacturer: ROHM
Manufacturer part #: BD8311NUV-E2
Store part #: C2071971
Package / case: VSON-10-EP(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

44 in stock

#C2071971

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹410.75	₹410.75
10+	₹350.30	₹3,503.00
30+	₹312.47	₹9,374.10
100+	₹273.77	₹27,377.00
500+	₹256.16	₹1,28,080.00
1,000+	₹248.76	₹2,48,760.00

Quantity (min 1)

1 × ₹410.75

₹410.75

excl. GST

₹484.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

BD8311NUV-E2

₹410.75 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -25℃~+85℃
Frequency - Switching: 1.2MHz
Function: Boost
Number of Outputs: 1
Features: Protection latch;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 3.5V~11V
Switch tube (built-in/external): Built-in
Output Current: 2.5A
Output Voltage: 4V~11V
Quiescent Current: 600uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.057 g

Overview

BD8311NUV is a high-efficiency step-up switching regulator with built-in power MOSFET that can output 8V or 10V from a 4-battery voltage supply such as Li2cell or a 5V fixed power supply line. The built-in 80mΩ N-Channel FET switch is capable of handling output current up to 2.5A. This IC has a flexible phase compensation system and a switching frequency of 1.2MHz allowing the use of smaller external output inductor and capacitor making the construction of a compact power supply really easy.

Applications

General Portable Equipment like DSC/DVC Powered by 4 dry Batteries or Li2cell
Typical Application Circuit Input: 3.5V to 10V, Output: 10V / 500 mA

Key features

Built-In 2.5A/14V N-Channel FET Switch
On-Chip Phase Compensation Between Input and Output of ERROR AMP.
Output Current: 600mA at 10V (3.5V to 10V input), 800mA at 8V (3.5V to 8V input)
Built-In Soft-Start Function.
Built-In Timer Latch System for Short Circuit Protection Function.
