ROHMDatasheet (PDF)

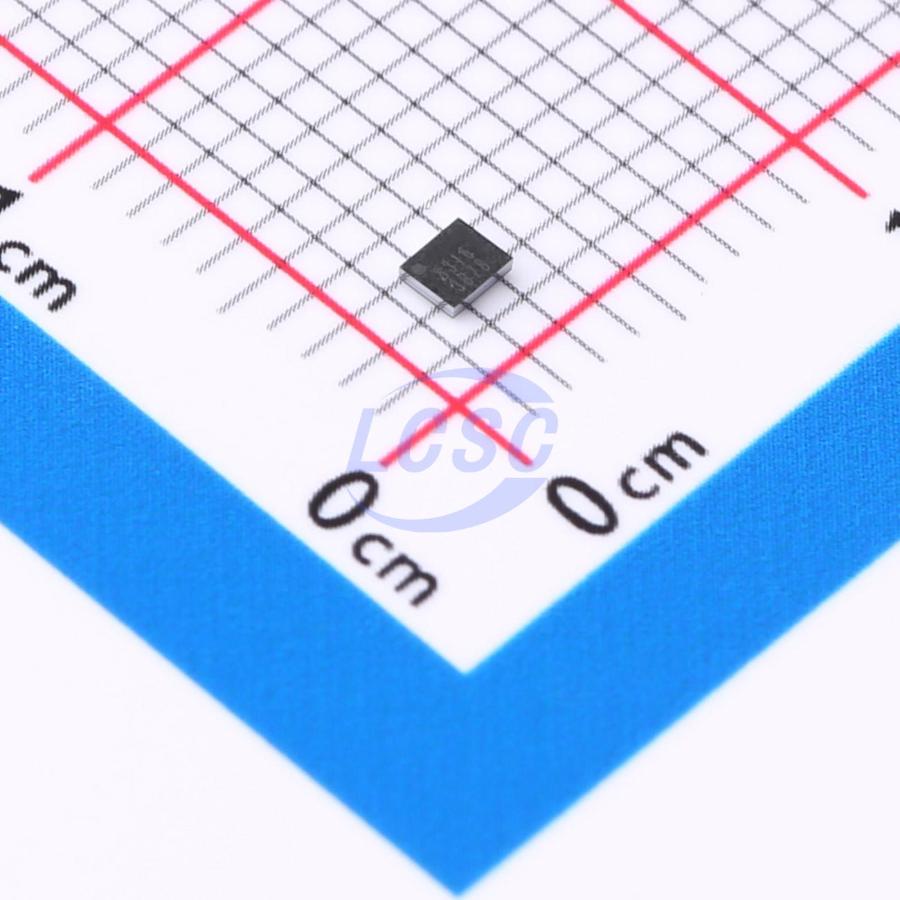

BD8316GWL-E2
1.6MHz Boost Adjustable 200mA UFBGA-11 Voltage Regulators - DC DC Switching Regulators RoHS
UFBGA-11ROHS3 CompliantActive
2-Channel Step-Up and Inverted Switching Regulator with Built-in Power MOSFET
- Manufacturer
- ROHM
- Manufacturer part #
- BD8316GWL-E2
- Store part #
- C2071640
- Package / case
- UFBGA-11
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,936 in stock
#C2071640
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.03 | ₹64.03 |
| 10+ | ₹62.51 | ₹625.10 |
| 30+ | ₹61.43 | ₹1,842.90 |
| 100+ | ₹60.57 | ₹6,057.00 |
1 × ₹64.03
₹64.03
excl. GST
₹75.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD8316GWL-E2
₹64.03 for 1 + GST
Specifications
- Operating Temperature
- -35℃~+85℃
- Frequency - Switching
- 1.6MHz
- Number of Outputs
- 2
- Function
- Boost
- Features
- Output discharge;Protection latch;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost;Inverting
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- -9V~-1V;2.5V~18V
- Output Current
- 200mA
- Quiescent Current
- 450uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
The BD8316GWL is step-up and inverted 2-channel switching regulator with integrated internal high-side MOSFET. With wide input range from 2.5~5.5V, it suitable for application of portable item. In addition, The small package design is ideal for miniaturizing the power supply.
Applications
- LCD battery
- CCD battery
- Portable items that are represented by mobile phone and DSC
Key features
- Wide input voltage range of 2.5V to 5.5V
- High frequency operation 1.6MHz
- Incorporates Nch FET of 230mΩ/22V and Pch Pow FET of 230mΩ/15V
- Incorporates Soft Start (4.2msec(typ)) and high side switch of boost channel
- Independent ON/OFF signal(STB). Built-in discharge SW for step up channel
- Small package UCSP50L1(1.8mm×1.5mm, 4×3 grid, 11pin, WLCSP)
- Circuits protection OCP,SCP,UVLO,TSD
