ROHM

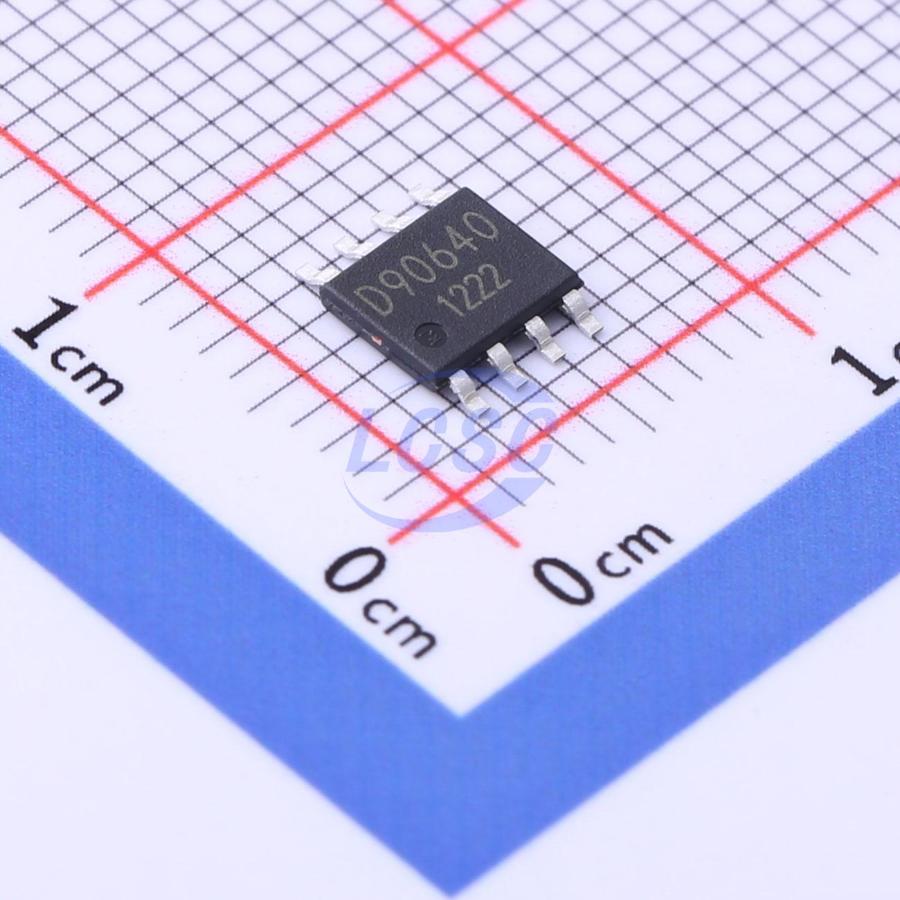

BD90640EFJ-CE2

50kHz~600kHz Step-down type Adjustable 4A 800mV~36V ESOP-8 Voltage Regulators - DC DC Switching Regulators RoHS

ESOP-8ROHS3 CompliantActive

Wide Input Voltage Range Buck Switching Regulator

Manufacturer: ROHM
Manufacturer part #: BD90640EFJ-CE2
Store part #: C2072067
Package / case: ESOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,400 in stock

#C2072067

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹212.62	₹212.62
10+	₹174.00	₹1,740.00
30+	₹152.95	₹4,588.50
100+	₹129.10	₹12,910.00
500+	₹118.46	₹59,230.00
1,000+	₹113.47	₹1,13,470.00

Quantity (min 1)

1 × ₹212.62

₹212.62

excl. GST

₹250.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

BD90640EFJ-CE2

₹212.62 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TA)
Frequency - Switching: 50kHz~600kHz
Function: Step-down type
Number of Outputs: 1
Features: Frequency synchronization;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3.5V~36V
Switch tube (built-in/external): Built-in
Output Current: 4A
Output Voltage: 800mV~36V
Quiescent Current: 2.2mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.233 g

Overview

BD906xx-C series is a step-down switching regulator with integrated POWER MOS FET and have the capability to withstand high input voltage, providing a free setting function of operating switching frequency with external resistor. This switching regulator features a wide input voltage range (3.5 V to 36 V, Absolute maximum 42 V) and operating temperature range (-40 °C to +125 °C). Furthermore, an external synchronization input pin enables synchronous operation with external clock.

Applications

Automotive Battery Powered Supplies (Cluster Panels, Car Multimedia)
Industrial / Consumer Supplies
Other electronic equipment

Key features

AEC-Q100 Qualified
Integrated Pch POWER MOS FET
Low Dropout: 100% ON Duty Cycle
External Synchronization Function
Soft Start Function: 1.38 ms (f_SW = 500 kHz)
Current Mode Control
Over Current Protection
Low Supply Voltage Error Prevention
Thermal Shut Down Protection
Short Circuit Protection
High power HRP7 package mounted
Compact and High power HTSOP-J8 package mounted
Load dump up to 42 V
