ROHMDatasheet (PDF)

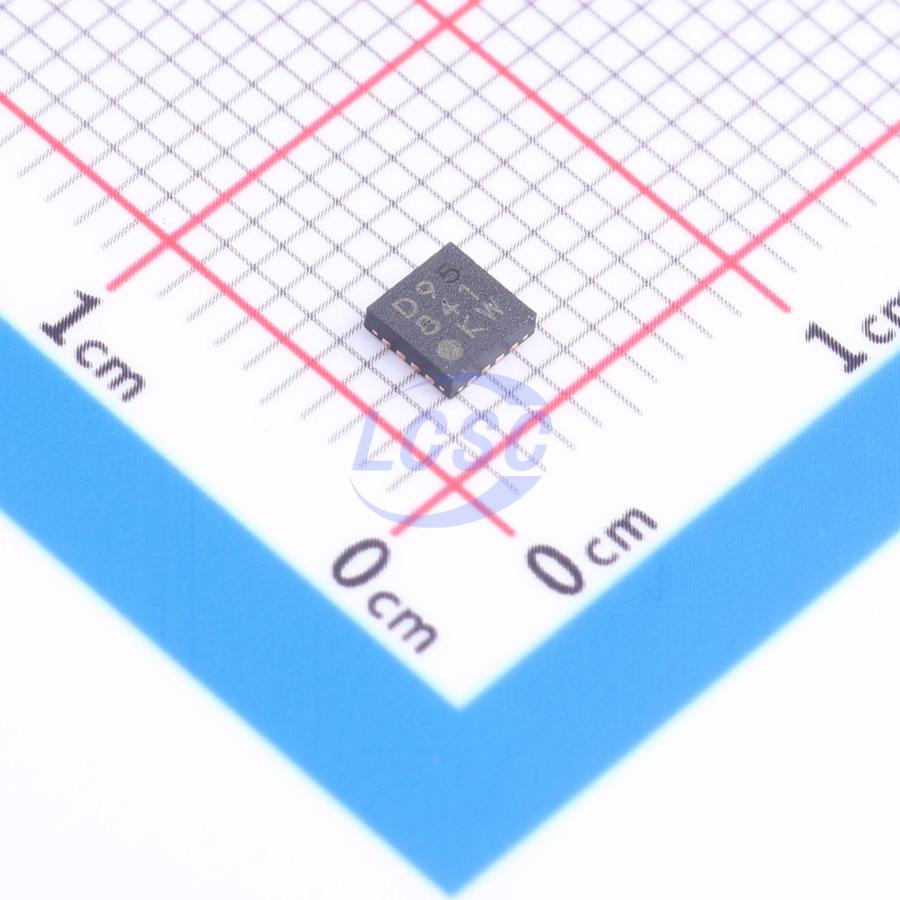

BD95841MUV-E2
500kHz~800kHz Step-down type Adjustable 4A 800mV~5.5V VFQFN-16-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
VFQFN-16-EP(3x3)ROHS3 CompliantActive
7.5V to 15V, 4A Synchronous Buck Converter
- Manufacturer
- ROHM
- Manufacturer part #
- BD95841MUV-E2
- Store part #
- C2071906
- Package / case
- VFQFN-16-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C2071906
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹155.11 | ₹155.11 |
| 10+ | ₹151.68 | ₹1,516.80 |
| 30+ | ₹149.31 | ₹4,479.30 |
| 100+ | ₹146.75 | ₹14,675.00 |
1 × ₹155.11
₹155.11
excl. GST
₹183.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD95841MUV-E2
₹155.11 for 1 + GST
Specifications
- Operating Temperature
- -20℃~+100℃
- Frequency - Switching
- 500kHz~800kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Protection latch;Output discharge;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 7.5V~15V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 4A
- Output Voltage
- 800mV~5.5V
- Quiescent Current
- 2uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
BD95841MUV is a 1ch synchronous buck converter that can generate output voltage (0.8V to 5.5V) at the input voltage range (7.5V to 15V). Space-saving and high efficient switching regulator can be achieved due to built-in N-MOSFET power transistors. The IC also incorporates H³Reg technology, a proprietary constant ON TIME control mode which facilitates ultra-high transient response against changes in load without external compensation components. Fixed soft start function, power good function, and short circuit / over voltage protection with timer latch functions are incorporated. The BD95841MUV is designed for power supplies for Digital AV Equipment.
Applications
- LCD TVs
- Set Top Boxes (STB)
- DVD/Blu-ray players/recorders
- Broadband Network and Communication Interface
- Amusement, other
Key features
- Input Voltage Range: 7.5V to 15.0V
- Reference Voltage: 0.8V ±1.5%
- Output Voltage Range: 0.8V to 5.5V
- Output Current: 4.0A (Max.)
- Switching Frequency: 500kHz to 800kHz
- Built-in Power MOS FET
- High-side Nch FET ON resistance: 65mΩ(typ.)
- Low-side Nch FET ON resistance: 45mΩ(typ.)
- Fast Transient Responses due to H³Reg control
- Over Current Protection (OCP) – Cycle-by-Cycle
- Thermal Shut Down (TSD)
- Under-Voltage Lock-Out (UVLO)
- Short Circuit Protection (SCP)
- Over Voltage Protection (OVP)
- Fixed Soft Start (1msec ; typ)
- Power Good function
