ROHM

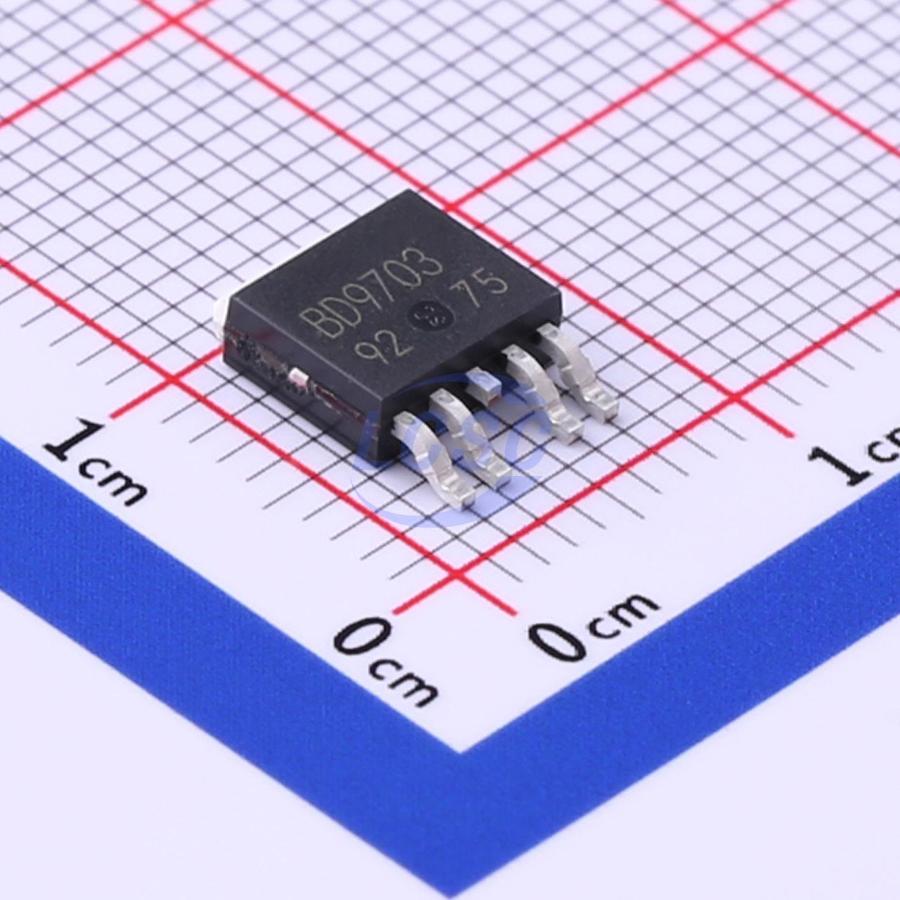

BD9703FP-E2

300kHz Step-down type Adjustable 1V~32V 1.5A TO-252-5 Voltage Regulators - DC DC Switching Regulators RoHS

TO-252-5ROHS3 CompliantActive

8V to 35V, 1.5A 1ch Buck Converter

Manufacturer: ROHM
Manufacturer part #: BD9703FP-E2
Store part #: C600854
Package / case: TO-252-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

675 in stock

#C600854

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹89.53	₹89.53
10+	₹72.58	₹725.80
30+	₹64.32	₹1,929.60
100+	₹55.86	₹5,586.00
500+	₹50.86	₹25,430.00
1,000+	₹48.25	₹48,250.00

Quantity (min 1)

1 × ₹89.53

₹89.53

excl. GST

₹105.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

BD9703FP-E2

₹89.53 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 300kHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 8V~35V
Switch tube (built-in/external): Built-in
Output Voltage: 1V~32V
Output Current: 1.5A
Quiescent Current: 4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.475 g

Overview

The BD9703xx is a series of single-channel step-down switching regulators capable of PWM operation. It has a built-in P-Channel MOSFET making its efficiency high at small loads. It has lower power consumption because it is made under Bi-CMOS process. Its operating current is only 4mA (Typ) and standby current is 0μA (Typ).
