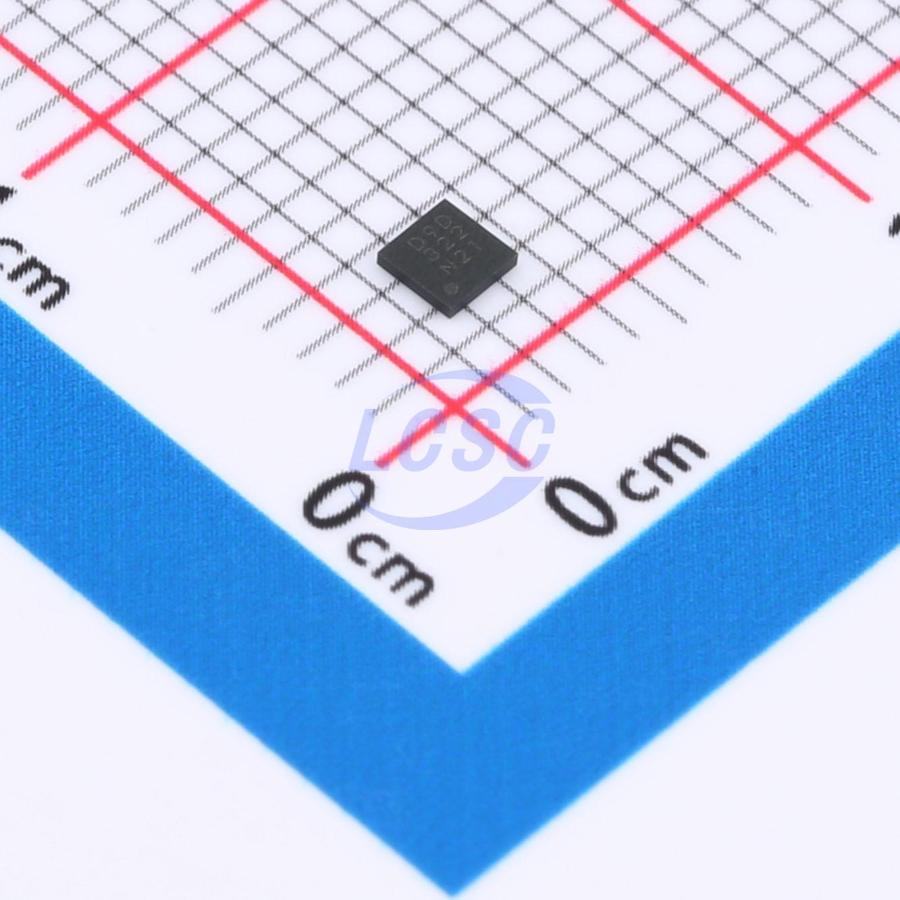

BD9D322QWZ-E2
700kHz Step-down type Adjustable 765mV~7V 3A UMMP-8-EP(2x2) Voltage Regulators - DC DC Switching Regulators RoHS
UMMP-8-EP(2x2)ROHS3 CompliantActive
4.5V to 18V Input, 3.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter
- Manufacturer
- ROHM
- Manufacturer part #
- BD9D322QWZ-E2
- Store part #
- C2071128
- Package / case
- UMMP-8-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C2071128
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.85 | ₹71.85 |
| 10+ | ₹69.96 | ₹699.60 |
| 30+ | ₹68.70 | ₹2,061.00 |
| 100+ | ₹67.45 | ₹6,745.00 |
1 × ₹71.85
₹71.85
excl. GST
₹84.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BD9D322QWZ-E2
₹71.85 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 700kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable soft-start;Light load efficient mode;Overcurrent Protection;Cycle-by-cycle current limiting
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 765mV~7V
- Output Current
- 3A
- Quiescent Current
- 2uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.193 g
Overview
BD9D322QWZ is a synchronous buck DC/DC convertor with built-in low on-resistance power MOSFETs. This IC is capable of providing current up to 3A. The SLLMTM control provides excellent efficiency characteristics in light-load conditions which make the product ideal for equipment and devices that demand minimal standby power consumption. External phase compensation circuit is not necessary for it is a constant ON-Time control DC/DC converter with fast transient response.
Applications
- Step-down Power Supply for DSPs, FPGAs, Microprocessors, etc.
- Set-top Box
- LCD TVs
- DVD / Blu-ray Player / Recorder
- POL Power Supply, etc.
Key features
- Single Synchronous DC/DC Converter
- Constant ON-Time Control
- SLLMTM (Simple Light Load Mode) Control
- Over Current Protection
- Thermal Shutdown Protection
- Under Voltage Lockout Protection
- Adjustable Soft Start
- UMMP008Z2020 Package (Backside Heat Dissipation)
