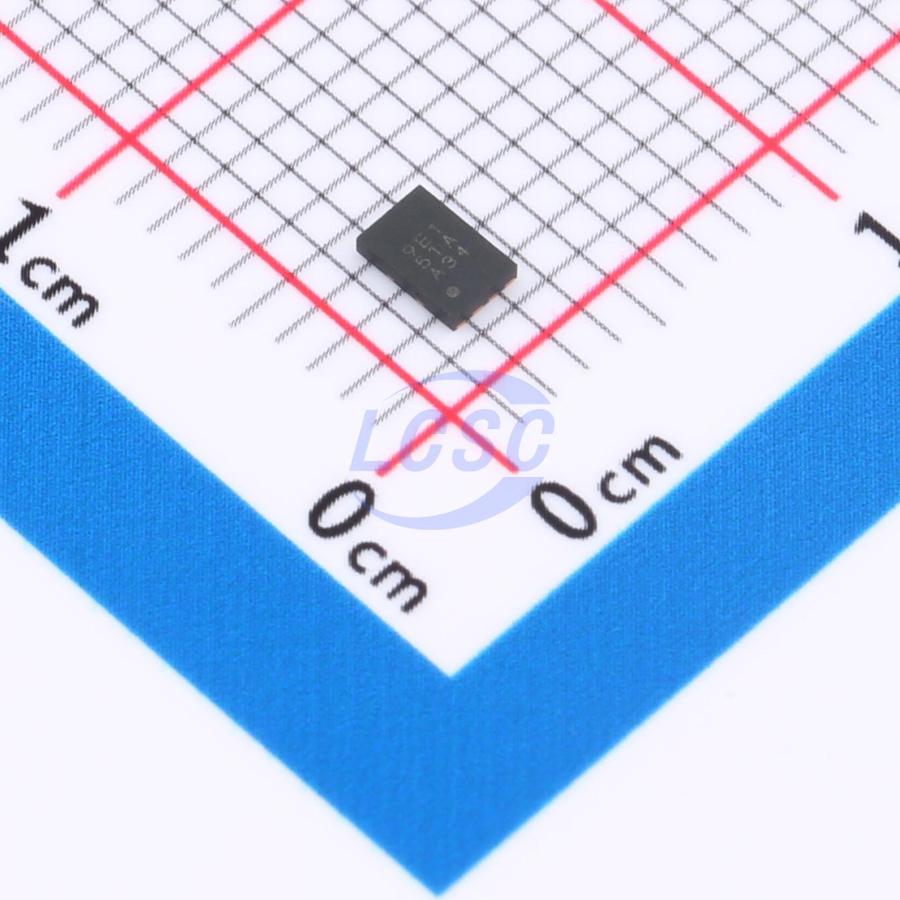

ROHM

BD9E151ANUX-TR

600kHz Step-down type Adjustable 1V~23V 1.2A VSON008X2030 Voltage Regulators - DC DC Switching Regulators RoHS

VSON008X2030ROHS3 CompliantActive

6V to 28V, 1.2A 1ch Step-Down Switching Integrated Power MOSFET

Manufacturer: ROHM
Manufacturer part #: BD9E151ANUX-TR
Store part #: C7219970
Package / case: VSON008X2030
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

24 in stock

#C7219970

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹85.84	₹85.84
10+	₹83.88	₹838.80
30+	₹82.58	₹2,477.40
100+	₹81.27	₹8,127.00

Quantity (min 1)

1 × ₹85.84

₹85.84

excl. GST

₹101.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

BD9E151ANUX-TR

₹85.84 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 600kHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Overcurrent Protection;Protection latch;External compensation;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 6V~28V
Switch tube (built-in/external): Built-in
Output Voltage: 1V~23V
Output Current: 1.2A
Quiescent Current: 800uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.027 g

Overview

BD9E151ANUX is diode-rectification buck converter of high input voltage 28V with integrated Power MOSFET. Because of diode-rectification, a pulse skips in light load automatically and it maintains high efficiency. In addition, it is available for battery powered application because supply current is small with 0 uA at shutdown. It can easily make a small power supply with the external parts of the wide range, because the use of ceramic capacitor is possible, and because it has high speed road response by current mode control and has the external setting phase compensation.

Applications

Surveillance Camera Applications
Consumer 12 V, 24 V BUS-Line Systems
OA Applications

Key features

Wide Input Range (VIN = 6V to 28V)
30V/80mΩ Integrated Power MOSFET
600kHz (Typ) High Frequency Operation
Built in Reference Voltage (1.0V ± 1.0%)
Built in Over Current Protection (OCP), Under Voltage Lockout (UVLO), Over Voltage Protection (OVP), Thermal Shutdown (TSD)
Stand-by mode (IIN = 0uA)
VSON008X2030 Small Package
