ROHMDatasheet (PDF)

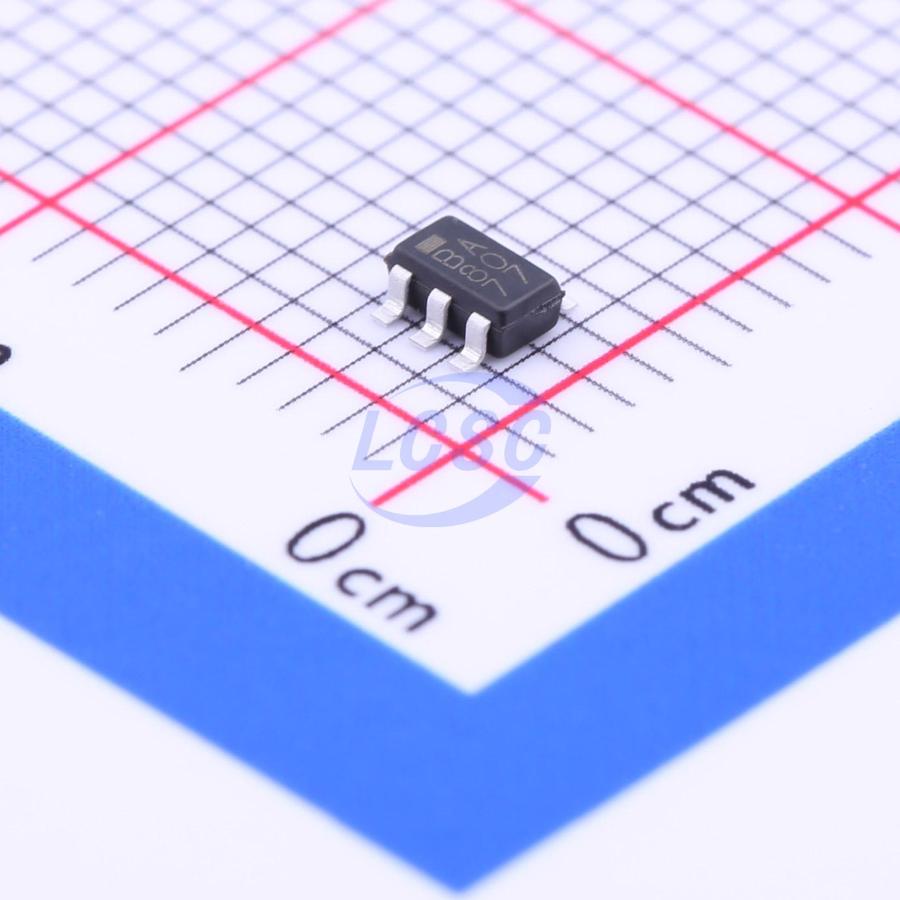

BD9G101G-TR
1.5MHz Step-down type Adjustable 1V~29.4V 500mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS3 CompliantActive
Built-in MOSFET DC-DC Converter
- Manufacturer
- ROHM
- Manufacturer part #
- BD9G101G-TR
- Store part #
- C108761
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,680 in stock
#C108761
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.15 | ₹255.75 |
| 50+ | ₹40.75 | ₹2,037.50 |
| 150+ | ₹36.30 | ₹5,445.00 |
| 500+ | ₹30.75 | ₹15,375.00 |
| 3,000+ | ₹25.41 | ₹76,230.00 |
| 6,000+ | ₹23.92 | ₹1,43,520.00 |
5 × ₹51.15
₹255.75
excl. GST
₹301.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD9G101G-TR
₹255.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+105℃@(TA)
- Frequency - Switching
- 1.5MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 6V~42V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1V~29.4V
- Output Current
- 500mA
- Quiescent Current
- 700uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The BD9G101G is switching regulator with integrated internal high-side 42V Power MOSFET. It provides 0.5A DC output with small SSOP6 package. Operating frequency is fixed 1.5MHz, allowing the use of small inductor and ceramic capacitor. The components of phase compensation is built in.
Applications
- Industrial distributed power applications
- Automotive Applications
- Battery powered equipment
- OA instruments
Key features
- High and Wide Input Range (VCC = 6V ~ 42V)
- 45V/800mΩ Internal Power MOSFET
- 1.5MHz Fixed Operating Frequency
- Feedback Pin Voltage 0.75V ± 1.5%
- Internal compensated
- Internal Over Current protection, Under Voltage Locked Out, Thermal shutdown
- 0μA Shutdown Supply Current (Ist = 0uA)
- Small package SSOP6
