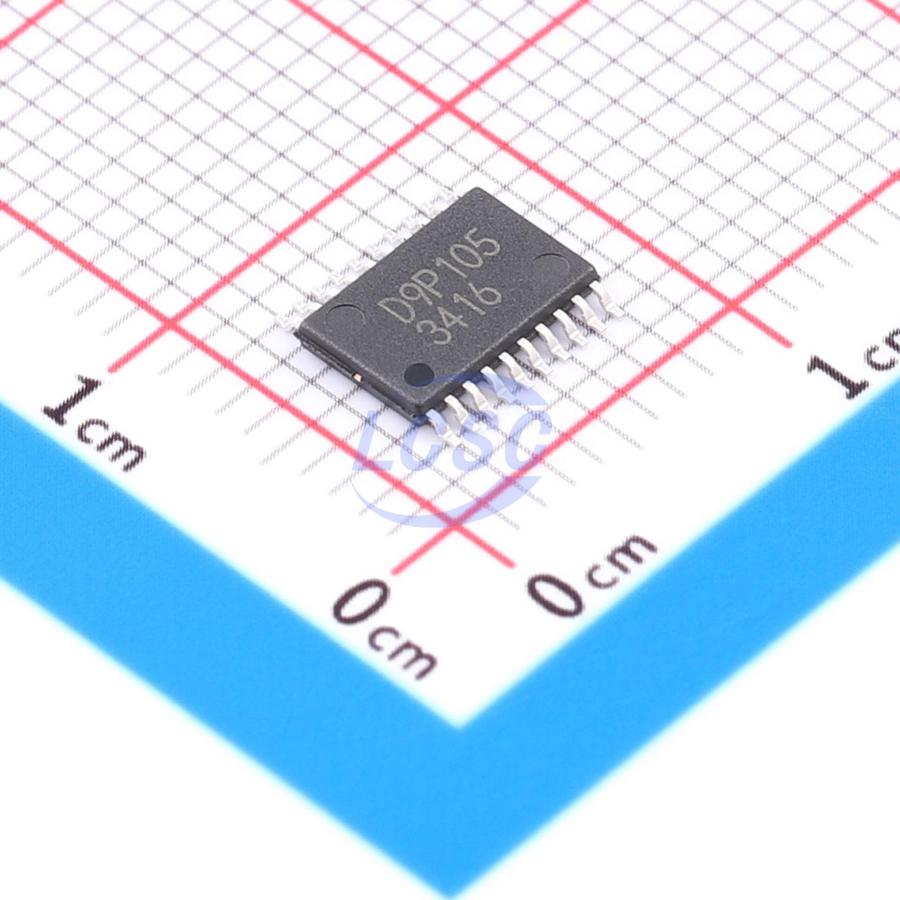

BD9P105EFV-CE2 ROHM

BD9P105EFV-CE2

Step-down type 2.2MHz Adjustable 800mV~8.5V 1A HTSSOP-20-EP Voltage Regulators - DC DC Switching Regulators RoHS

HTSSOP-20-EPROHS3 CompliantActive

Manufacturer: ROHM
Manufacturer part #: BD9P105EFV-CE2
Store part #: C1518758
Package / case: HTSSOP-20-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

105 in stock

#C1518758

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹226.29	₹226.29
10+	₹220.65	₹2,206.50
30+	₹216.75	₹6,502.50
100+	₹212.84	₹21,284.00

Quantity (min 1)

1 × ₹226.29

₹226.29

excl. GST

₹267.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

BD9P105EFV-CE2

₹226.29 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TA)
Function: Step-down type
Frequency - Switching: 2.2MHz
Number of Outputs: 1
Features: Adjustable current limiting;Output discharge;Frequency synchronization;EMI optimization (spread spectrum);Light load efficient mode;Overcurrent Protection;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3.5V~40V
Switch tube (built-in/external): Built-in
Output Voltage: 800mV~8.5V
Output Current: 1A
Quiescent Current: 10uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 4.263 g

Overview

BD9P1x5EFV-C Series are current mode synchronous buck DC/DC converter integrating POWER MOSFETs.

Applications

Automotive Powered Supplies
Consumer Powered Supplies

Key features

Nano Pulse ControlTM
AEC-Q100 Qualified
Minimum ON Pulse 50 ns (Max)
Synchronous Buck DC/DC Converter Integrating POWER MOSFETs
Soft Start Function
Current Mode Control
Reset Function
Quiescent Current 10 μA (Typ) with 12 V Input to 5.0 V Output
Light Load Mode (LLM)
Forced Pulse Wide Modulation (PWM) Mode
Phase Compensation Included
Selectable Spread Spectrum Switching
External Synchronization Function
Selectable Over Current Protection (OCP)
Input Under Voltage Lockout (UVLO) Protection
Thermal Shut Down (TSD) Protection
Output Over Voltage Protection (OVP)
Short Circuit Protection (SCP)
Grade 1
