ROHMDatasheet (PDF)

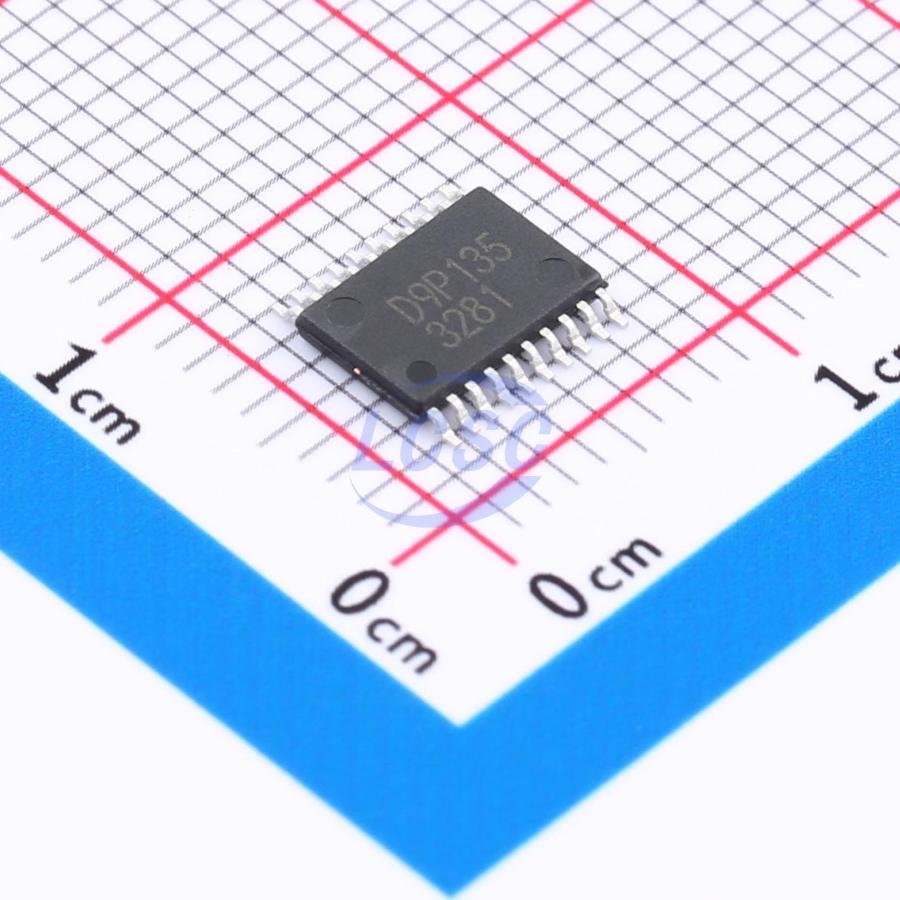

BD9P135EFV-CE2
Step-down type 2.2MHz Fixed 3.3V 1A HTSSOP-20-EP Voltage Regulators - DC DC Switching Regulators RoHS
HTSSOP-20-EPROHS CompliantActive
3.5 V to 40 V Input, 1 A Single 2.2 MHz Buck DC/DC Converter for Automotive
- Manufacturer
- ROHM
- Manufacturer part #
- BD9P135EFV-CE2
- Store part #
- C1518759
- Package / case
- HTSSOP-20-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1518759
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹372.69 | ₹372.69 |
| 10+ | ₹364.45 | ₹3,644.50 |
| 30+ | ₹358.81 | ₹10,764.30 |
| 100+ | ₹353.40 | ₹35,340.00 |
1 × ₹372.69
₹372.69
excl. GST
₹439.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD9P135EFV-CE2
₹372.69 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Function
- Step-down type
- Frequency - Switching
- 2.2MHz
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Light load efficient mode;EMI optimization (spread spectrum);Frequency synchronization;Output discharge;Overcurrent Protection
- Output Type
- Fixed
- Topology
- Buck
- Operating Voltage
- 3.5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.3V
- Output Current
- 1A
- Quiescent Current
- 10uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
BD9P1x5EFV-C Series are current mode synchronous buck DC/DC converter integrating POWER MOSFETs.
Applications
- Automotive Powered Supplies
- Consumer Powered Supplies
Key features
- Nano Pulse ControlTM
- AEC-Q100 Qualified
- Minimum ON Pulse 50 ns (Max)
- Synchronous Buck DC/DC Converter Integrating POWER MOSFETs
- Soft Start Function
- Current Mode Control
- Reset Function
- Quiescent Current 10 μA (Typ) with 12 V Input to 5.0 V Output
- Light Load Mode (LLM)
- Forced Pulse Wide Modulation (PWM) Mode
- Phase Compensation Included
- Selectable Spread Spectrum Switching
- External Synchronization Function
- Selectable Over Current Protection (OCP)
- Input Under Voltage Lockout (UVLO) Protection
- Thermal Shut Down (TSD) Protection
- Output Over Voltage Protection (OVP)
- Short Circuit Protection (SCP)
- Grade 1
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BD9P235EFV-CE2#C1518752ROHM · HTSSOP-20-EP | ROHM | HTSSOP-20-EP | 100 | ₹403.07 · 100 in stock | View |
