ROHMDatasheet (PDF)

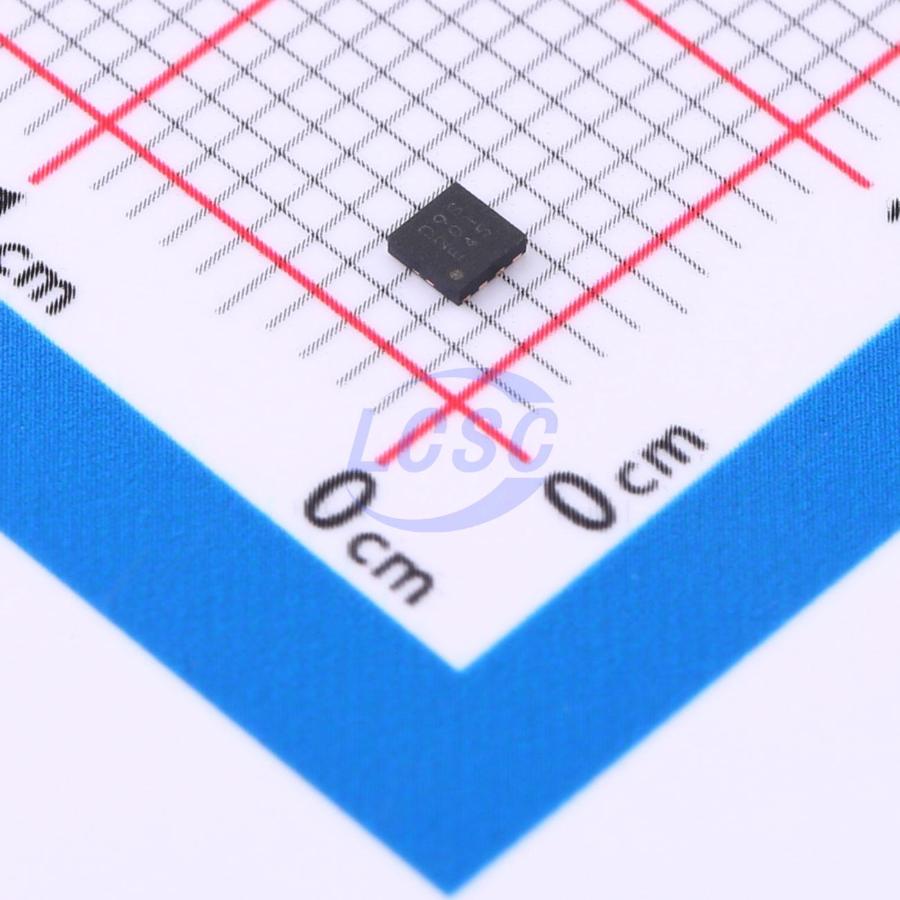

BD9S201NUX-CE2
2.2MHz Step-down type Adjustable 2A 800mV~5.5V VSON008X2020 Voltage Regulators - DC DC Switching Regulators RoHS
VSON008X2020ROHS3 CompliantActive
2.7 V to 5.5 V Input, 2 A Single Synchronous Buck DC/DC Converter
- Manufacturer
- ROHM
- Manufacturer part #
- BD9S201NUX-CE2
- Store part #
- C3194586
- Package / case
- VSON008X2020
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C3194586
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹179.31 | ₹179.31 |
| 10+ | ₹174.78 | ₹1,747.80 |
| 30+ | ₹171.77 | ₹5,153.10 |
| 100+ | ₹168.54 | ₹16,854.00 |
1 × ₹179.31
₹179.31
excl. GST
₹211.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BD9S201NUX-CE2
₹179.31 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Frequency - Switching
- 2.2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable soft-start;Output discharge;Operating status indication;Overcurrent Protection;Cycle-by-cycle current limiting
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.7V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Output Voltage
- 800mV~5.5V
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.295 g
Overview
BD9S201NUX-C is a synchronous buck DC/DC Converter with built-in low On Resistance power MOSFETs. It is capable of providing current up to 2 A. Small inductor is applicable due to high switching frequency of 2.2 MHz. It is a current mode control DC/DC Converter and features high-speed transient response. It has a built-in phase compensation circuit. Applications can be created with a few external components.
Applications
- Automotive Equipment
- Other Electronic Equipment
Key features
- AEC-Q100 Qualified
- Single Synchronous Buck DC/DC Converter
- Adjustable Soft Start Function
- Output Discharge Function
- Power Good Output
- Input Under Voltage Lockout Protection (UVLO)
- Short Circuit Protection (SCP)
- Output Over Voltage Protection (OVP)
- Over Current Protection (OCP)
- Thermal Shutdown Protection (TSD)
- Grade 1
