ROHMDatasheet (PDF)

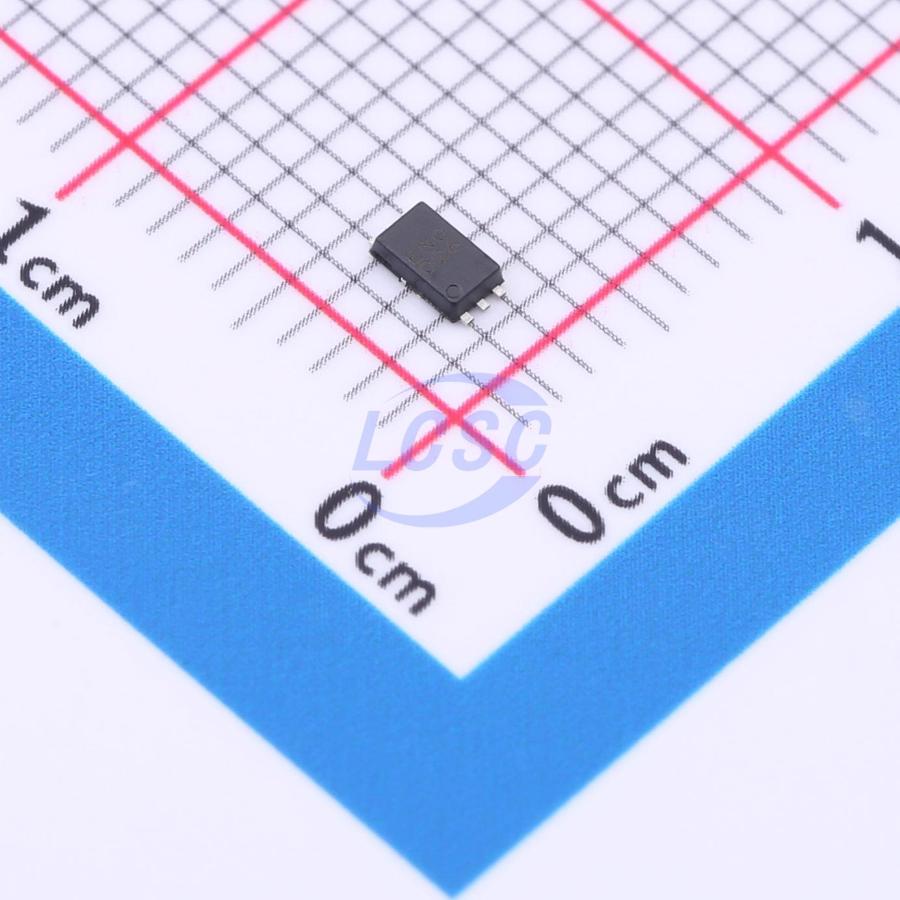

BH33M0AWHFV-TR
3.3V Positive Fixed HVSOF-6 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
HVSOF-6ROHS3 CompliantActive
CMOS LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BH33M0AWHFV-TR
- Store part #
- C3764368
- Package / case
- HVSOF-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C3764368
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹153.73 | ₹153.73 |
| 10+ | ₹128.29 | ₹1,282.90 |
| 30+ | ₹114.16 | ₹3,424.80 |
| 100+ | ₹98.51 | ₹9,851.00 |
| 500+ | ₹91.33 | ₹45,665.00 |
| 1,000+ | ₹88.28 | ₹88,280.00 |
1 × ₹153.73
₹153.73
excl. GST
₹181.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BH33M0AWHFV-TR
₹153.73 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 95uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Noise bypass terminal
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.02 g
Overview
BHxxM0A series are high- performance CMOS LDO regulators with output current ability of up to 300mA. These devices have excellent noise characteristics despite of their low circuit current consumption of 65μA. They are most appropriate for various applications such as power supplies for logic IC, RF, and camera modules.
Applications
- Battery- driven portable devices
- Other electronic devices using microcontrollers or logic circuits
Key features
- High Output Voltage Accuracy: ≤ 1% (± 25mV on VOUT < 2.5V products)
- Dropout voltage: 60mV (IOUT = 100mA)
- Compatible with small ceramic capacitor
- Output Voltage ON/OFF Control
- Built-in Over Current Protection Circuit (OCP)
- Built-in Thermal Shutdown Circuit (TSD)
- Ultra-small power package: HVSOF6
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BH33MA3WHFV-TR#C161951ROHM · HVSOF-6 | ROHM | HVSOF-6 | 21 | ₹56.11 · 21 in stock | View |
 | BD33IC0WHFV-GTR#C5952682ROHM · HVSOF-6 | ROHM | HVSOF-6 | 41 | ₹66.39 · 41 in stock | View |
