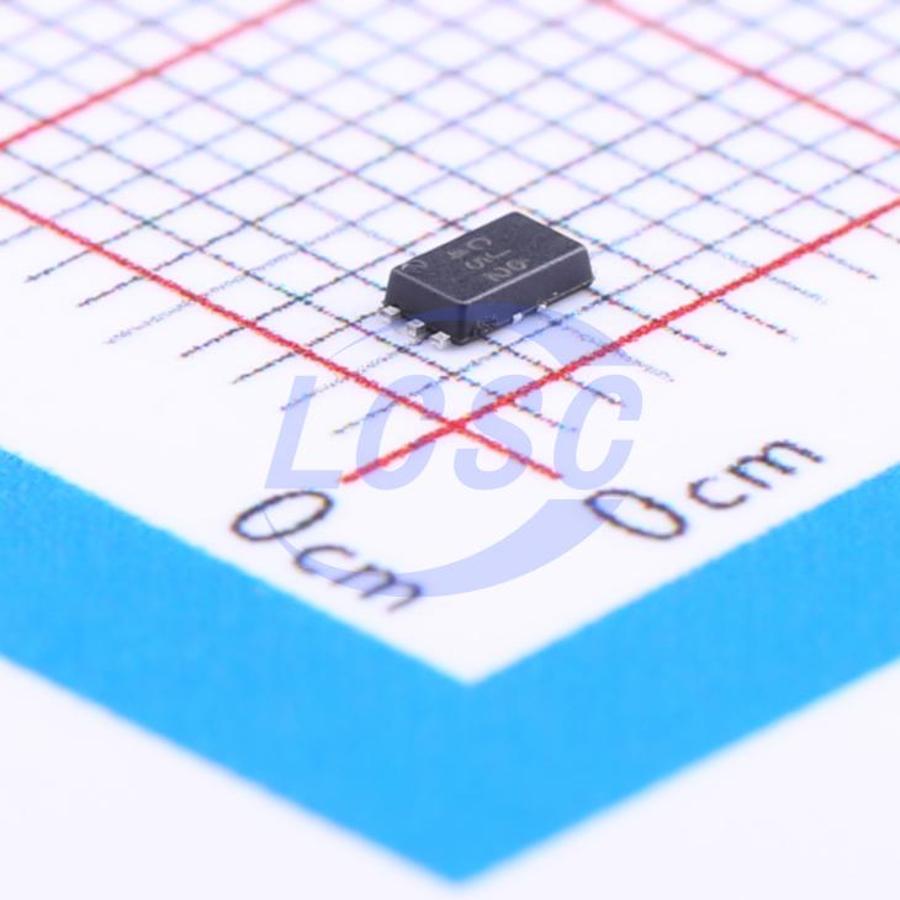

BH33MA3WHFV-TR
3.3V Positive Fixed HVSOF-6 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
HVSOF-6ROHS CompliantActive
CMOS LDO Regulators for Portable Equipments
- Manufacturer
- ROHM
- Manufacturer part #
- BH33MA3WHFV-TR
- Store part #
- C161951
- Package / case
- HVSOF-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21 in stock
#C161951
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.11 | ₹56.11 |
| 10+ | ₹43.42 | ₹434.20 |
| 30+ | ₹38.05 | ₹1,141.50 |
| 100+ | ₹31.38 | ₹3,138.00 |
| 500+ | ₹28.38 | ₹14,190.00 |
| 1,000+ | ₹26.45 | ₹26,450.00 |
1 × ₹56.11
₹56.11
excl. GST
₹66.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BH33MA3WHFV-TR
₹56.11 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 65uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Noise bypass terminal;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.034 g
Overview
BHxxMA3 series are high-performance CMOS LDO regulators with output current ability of up to 300mA. These devices have excellent noise characteristics despite of their low circuit current consumption of 65μA. They are most appropriate for various applications such as power supplies for logic IC, RF, and camera modules.
Applications
- Battery-driven portable devices
- Other electronic devices using microcontrollers or logic circuits
Key features
- High Output Voltage Accuracy: ±1 % ≤25mV on VOUT (1<2.5V products)
- Dropout voltage: 60mV (IOUT = 100mA)
- Compatible with small ceramic capacitor
- Output Voltage ON/OFF Control
- Built-in Over Current Protection Circuit (OCP)
- Built-in Thermal Shutdown Circuit (TSD)
- Ultra-small power package: HVSOF6
