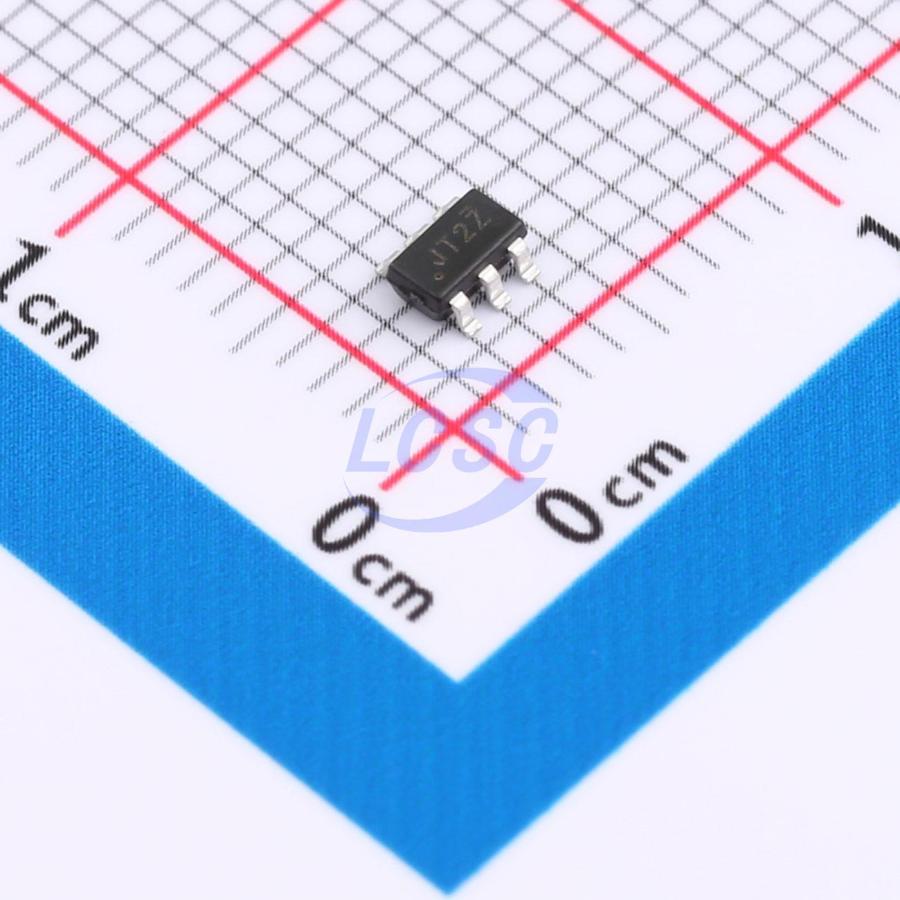

BL8032GCB6TR
500kHz Step-down type Adjustable 800mV~5V 2A SOT23-6 Voltage Regulators - DC DC Switching Regulators
SOT23-6RoHSActive
High-Efficiency 2A Synchronous Step-Down Converter
- Manufacturer
- BL
- Manufacturer part #
- BL8032GCB6TR
- Store part #
- C7436534
- Package / case
- SOT23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36,765 in stock
#C7436534
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.92 | ₹109.60 |
| 50+ | ₹17.75 | ₹887.50 |
| 150+ | ₹15.66 | ₹2,349.00 |
| 500+ | ₹14.10 | ₹7,050.00 |
| 3,000+ | ₹12.85 | ₹38,550.00 |
| 6,000+ | ₹12.22 | ₹73,320.00 |
5 × ₹21.92
₹109.60
excl. GST
₹129.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL8032GCB6TR
₹109.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~5V
- Output Current
- 2A
- Quiescent Current
- 5uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
The BL8032G is a fully integrated, high-efficiency 2A synchronous rectified step-down converter. The BL8032G operates at high efficiency over a wide output current load range. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load. The BL8032G requires a minimum number of readily available standard external components and is available in a 6-pin SOT23 ROHS compliant package.
Applications
- Distributed power systems
- Digital set top boxes
- Flat panel television and monitors
- Wireless and DSL modems
- Notebook computer
Key features
- High efficiency: up to 96%
- 500KHz frequency operation
- 2A output current
- No schottky diode required
- 4.5V to 18V input voltage range
- 0.8V reference
- Slope compensated current mode control for excellent line and load transient response
- Integrated internal compensation
- Stable with low ESR ceramic output capacitors
- Over current protection with hiccup-mode
- Thermal shutdown
- Inrush current limit and soft start
- Available in SOT23-6
- -40°C to +85°C temperature range
