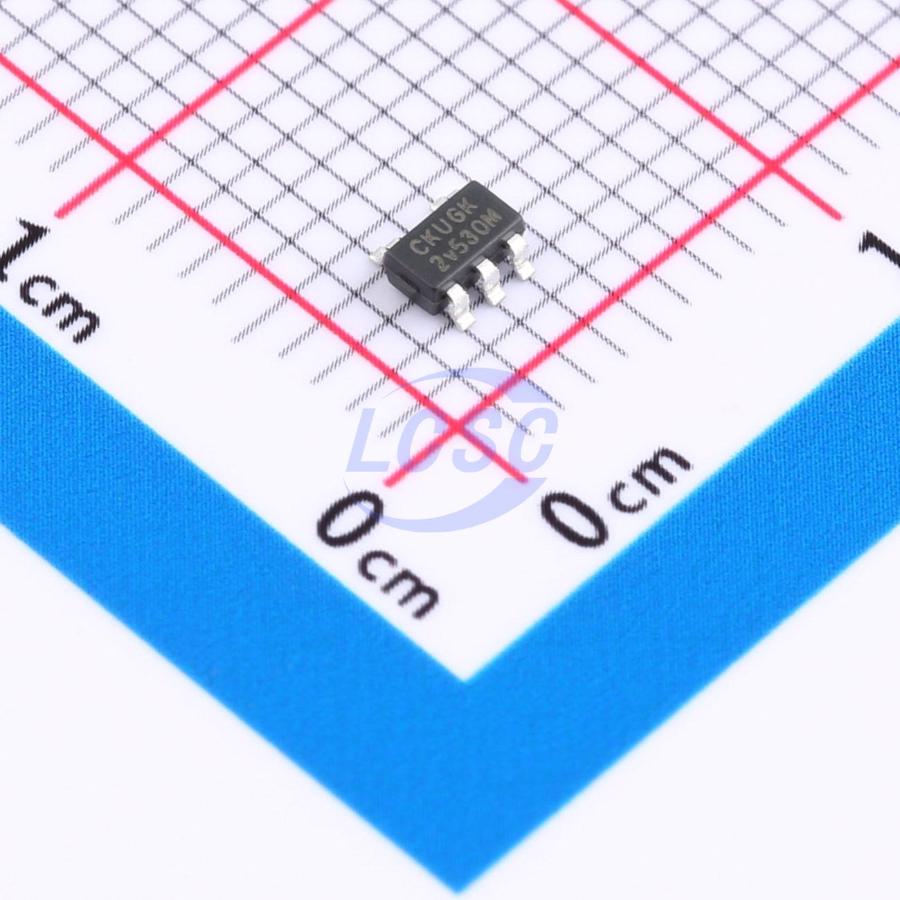

BL9161G-33BARN

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

300mA Ultra-low Noise, Ultra-Fast CMOS LDO Regulator

Manufacturer: BL
Manufacturer part #: BL9161G-33BARN
Store part #: C2902574
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

40,860 in stock

#C2902574

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
20+	₹5.53	₹110.60
200+	₹4.41	₹882.00
600+	₹3.78	₹2,268.00
3,000+	₹3.31	₹9,930.00
9,000+	₹2.98	₹26,820.00
21,000+	₹2.80	₹58,800.00

Quantity (min 20, multiples of 20)

20 × ₹5.53

₹110.60

excl. GST

₹130.51 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

BL9161G-33BARN

₹110.60 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 110uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 6V
Output Type: Fixed
Features: Enable control;Output discharge;Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.024 g

Overview

The BL9161G is designed for portable applications with demanding performance and space requirements. The BL9161G performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The BL9161G also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The BL9161G consumes only 0.01μA current in shutdown mode and has fast turn-on time (Typical 50μs). The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.

Applications

Cellular and Smart Phones
Cordless Telephones
Battery-Powered Equipment
Laptop, Palmtops, Notebook Computers
Hand-Held Instruments
PCMCIA Cards
MP3/MP4/MP5 Players
Portable Information Appliances

Key features

Ultra-low Noise
Ultra-Fast Response in Line/Load Transient
0.01μA Standby Current When Shutdown
Low Dropout: 205mV@300mA
Wide Operating Voltage Ranges: 2.2V to 6V
Low Temperature Coefficient
Current Limiting Protection
Thermal Shutdown Protection
Only 1μF Output Capacitor Required for Stability
High Power Supply Rejection Ratio
Fast output discharge
Available in SOT23-5, SOT23-3, SC70-5 and DFN1×1 -4L Package
