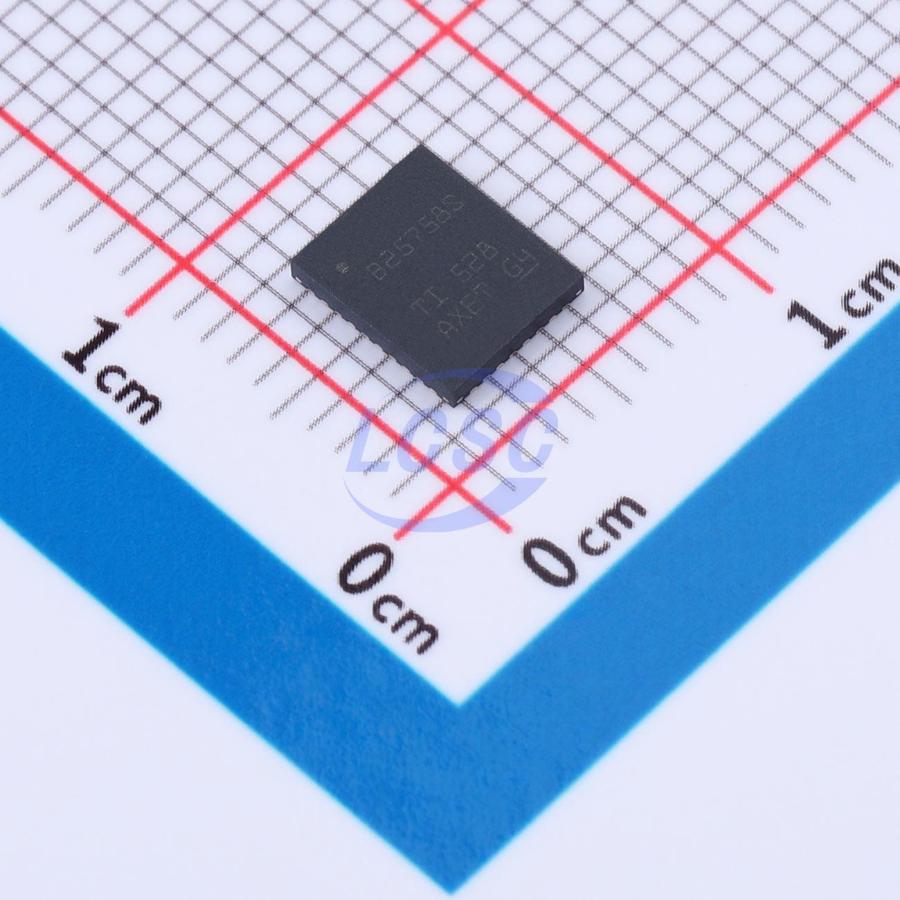

BQ25758SRRVR

Buck-Boost 200kHz~600kHz Adjustable 20A 3.3V~26V VQFN-36 Voltage Regulators - DC DC Switching Regulators RoHS

VQFN-36ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: BQ25758SRRVR
Store part #: C41940265
Package / case: VQFN-36
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C41940265

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹689.93	₹689.93
10+	₹672.36	₹6,723.60
30+	₹660.44	₹19,813.20
100+	₹648.73	₹64,873.00

Quantity (min 1)

1 × ₹689.93

₹689.93

excl. GST

₹814.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

BQ25758SRRVR

₹689.93 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+105℃
Function: Buck-Boost
Frequency - Switching: 200kHz~600kHz
Number of Outputs: 1
Features: Adjustable current limiting;Frequency synchronization;Light load efficient mode;Overcurrent Protection;Operating status indication;Built-in LDO regulator
Output Type: Adjustable
Topology: Buck-Boost
Operating Voltage: 4.4V~26V
Switch tube (built-in/external): External
Output Current: 20A
Output Voltage: 3.3V~26V
Quiescent Current: 750uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

BQ25758S is a bidirectional switch-mode buck/boost controller. The device enables highly efficient power conversion over a wide voltage range via output CC-CV control. All loop compensation for the buck/boost converter is integrated, providing an easy-to-use, high-density solution. In reverse mode, the device draws power from the output supply and regulates the input terminal voltage through an added constant-current loop for protection. In addition to I2C host control mode, the device supports programmable hardware limits. The input current and output current regulation targets can be set individually via a single resistor on the IIN and IOUT pins respectively. By default, the device is programmed to provide a 5V output, and the target output voltage can be adjusted via the VOUT_REG register bits.

Applications

Hub Station
Monitor
USB-PD SPR (Standard Power Range)
Buck/Boost and Buck-Only Operation

Key features

Wide input voltage operating range: 4.4V ~ 26V
Synchronous buck-boost DC/DC controller with NFET drivers
Adjustable switching frequency range: 200kHz ~ 600kHz
Optional synchronization to external clock
Integrated loop compensation with soft-start
Optional PFM operation for improved light-load efficiency
Optional gate driver supply input for improved efficiency
USB-PD Standard Power Range (SPR) support for forward and reverse power directions
Adjustable input and output voltage regulation range: 3.3V ~ 26V in 20mV steps
Adjustable input and output current regulation (RAC_SNS, ROUT_SNS) using 5mΩ resistors: 400mA ~ 20A in 50mA steps
Bypass mode for excellent efficiency at VOUT = VAC
Buck-only mode
High accuracy
±2% output voltage regulation
±3% output current regulation
±2% input voltage regulation
±3% input current regulation
I2C control for superior system performance with battery-programmable options
Hardware-adjustable input and output current limits
Integrated 16-bit ADC for voltage, current, and temperature monitoring
High safety integration
Adjustable input overvoltage and undervoltage protection
Output overvoltage and overcurrent protection
Thermal shutdown
Status outputs
Adapter present status (PG)
Switching operation status (STAT)
Package
36-pin 5mm × 6mm QFN package
