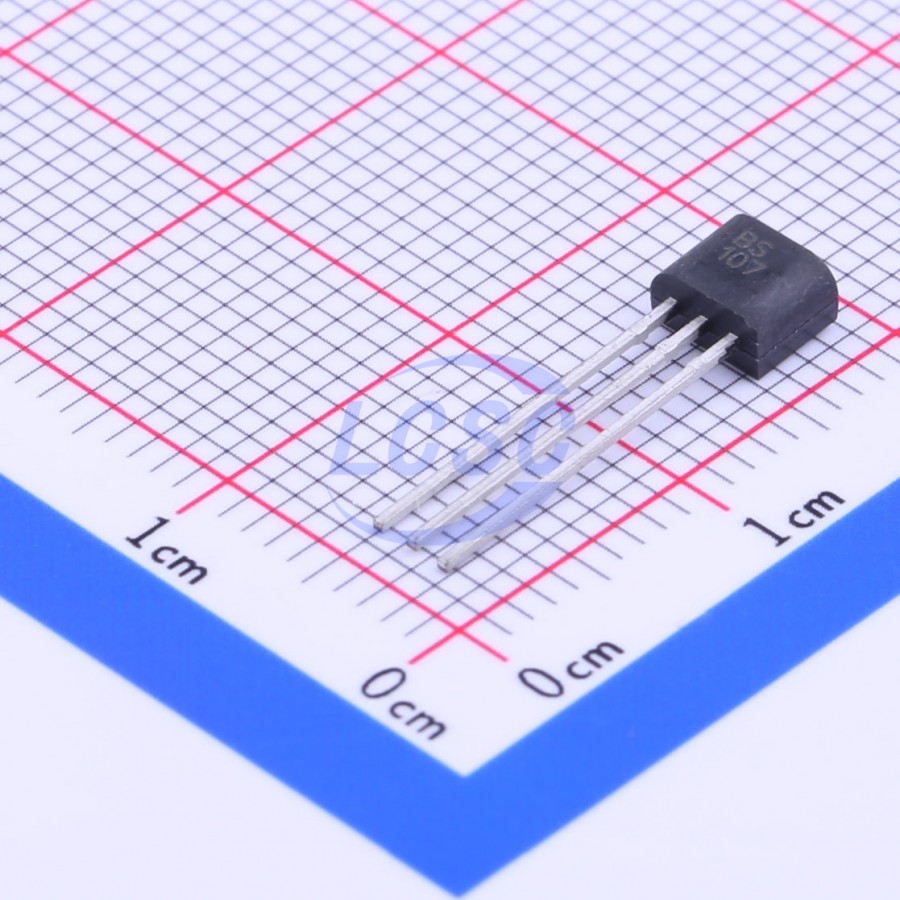

BS107P
N-Channel 200V 120mA 500mW Through Hole TO-92
TO-92ROHS3 CompliantActive
MOSFET N-CH 200V 120mA TO-92
- Manufacturer
- DIODES
- Manufacturer part #
- BS107P
- Store part #
- C156337
- Package / case
- TO-92
- Category
- Single FETs, MOSFETs
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
146 in stock
#C156337
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹122.02 | ₹122.02 |
| 10+ | ₹98.54 | ₹985.40 |
| 30+ | ₹86.79 | ₹2,603.70 |
| 100+ | ₹75.27 | ₹7,527.00 |
| 500+ | ₹68.31 | ₹34,155.00 |
| 1,000+ | ₹64.83 | ₹64,830.00 |
1 × ₹122.02
₹122.02
excl. GST
₹143.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per box
BS107P
₹122.02 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 20pF
- Current - Continuous Drain(Id)
- 120mA
- Ciss-Input Capacitance
- 85pF
- Pd - Power Dissipation
- 500mW
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 15Ω@2.6V;30Ω@5V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 4,000 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.221 g
Overview
Key features
- BV_DSS > 200V
- R_DSS(ON) ≤ 23Ω @ V_GS = 2.6V
- I_D = 120mA Maximum Continuous Drain Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC - Q101) for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BS107PSTZ#C5564703DIODES · TO-92-2.54mm | DIODES | TO-92-2.54mm | 172 | ₹138.21 · 172 in stock | View |
 | ZVN0124A#C526783DIODES · TO-92 | DIODES | TO-92 | 95 | ₹104.46 · 95 in stock | View |
 | ZVNL120A#C461801DIODES · TO-92 | DIODES | TO-92 | 237 | ₹102.11 · 237 in stock | View |
 | STQ1NK80ZR-AP#C501058ST · TO-92-3 | ST | TO-92-3 | 2,003 | ₹72.17 · 2,003 in stock | View |
 | STQ1NK60ZR-AP#C262966ST · TO-92 | ST | TO-92 | 1,045 | ₹34.15 · 1,045 in stock | View |
