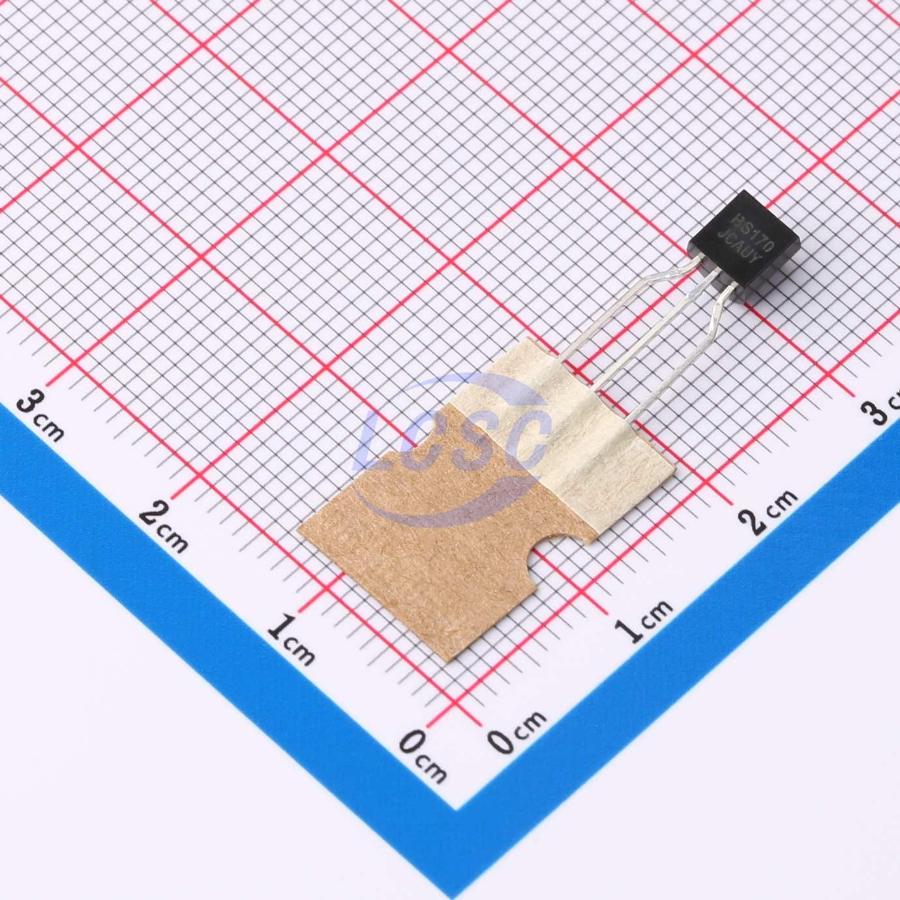

BS170-D27Z
N-Channel 60V 500mA 830mW Through Hole TO-92
TO-92ROHS3 CompliantActive
MOSFET N-CH 60V 500mA TO-92
- Manufacturer
- onsemi
- Manufacturer part #
- BS170-D27Z
- Store part #
- C900826
- Package / case
- TO-92
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C900826
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.71 | ₹148.55 |
| 50+ | ₹23.64 | ₹1,182.00 |
| 150+ | ₹21.05 | ₹3,157.50 |
| 500+ | ₹17.81 | ₹8,905.00 |
| 2,000+ | ₹16.35 | ₹32,700.00 |
| 4,000+ | ₹15.49 | ₹61,960.00 |
5 × ₹29.71
₹148.55
excl. GST
₹175.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BS170-D27Z
₹148.55 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 17pF
- Ciss-Input Capacitance
- 40pF
- Pd - Power Dissipation
- 830mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 500mA
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 5Ω@10V
- Number
- 1 N-channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.31 g
Overview
These N-Channel enhancement mode field effect transistors are produced using proprietary, high cell density, DMOS technology. These products have been designed to minimize on-state resistance while provide rugged, reliable, and fast switching performance. They can be used in most applications requiring up to 500mA DC. These products are particularly suited for low voltage, low current applications such as small servo motor control, power MOsFET gate drivers, and other switching applications.
Applications
- Small servo motor control
- Power MOsFET gate drivers
- Other switching applications
Key features
- High density cell design for low Rps(ON)
- Voltage controlled small signal switch
- Rugged and reliable
- High saturation current capability
