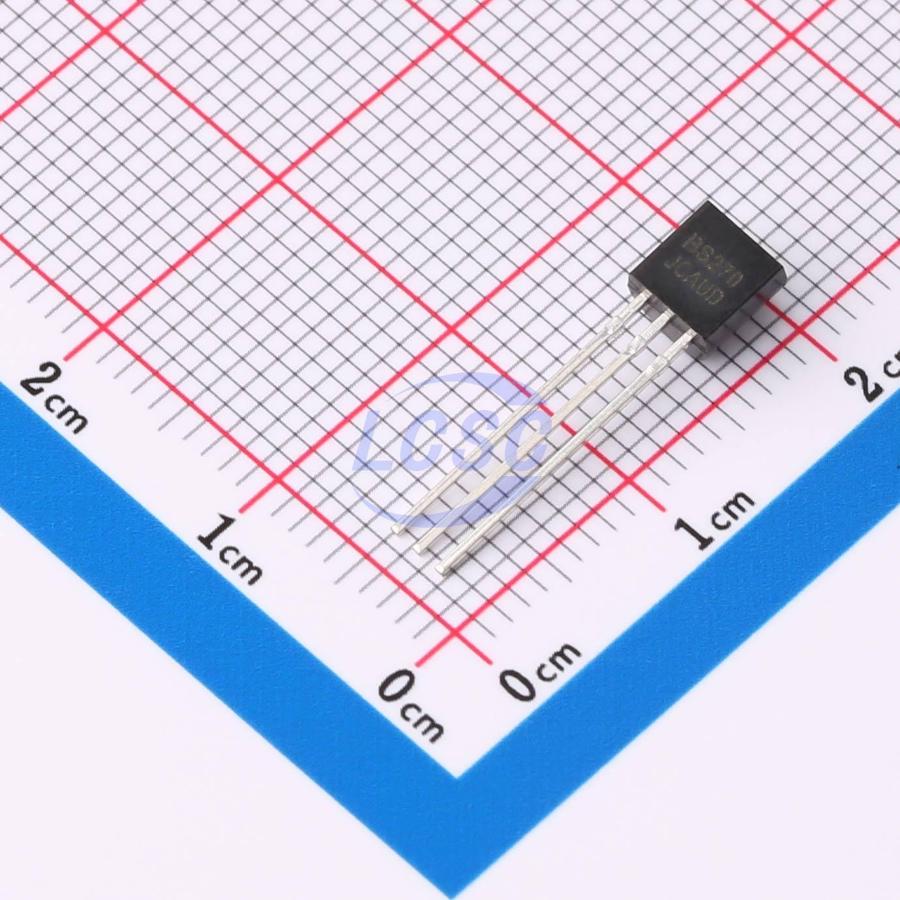

BS270
N-Channel 60V 400mA 625mW Through Hole TO-92
TO-92ROHS3 CompliantDiscontinued
MOSFET N-CH 60V 400mA TO-92
- Manufacturer
- onsemi
- Manufacturer part #
- BS270
- Store part #
- C896686
- Package / case
- TO-92
- Category
- Single FETs, MOSFETs
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C896686
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.64 | ₹69.64 |
| 10+ | ₹58.90 | ₹589.00 |
| 30+ | ₹54.18 | ₹1,625.40 |
| 100+ | ₹48.37 | ₹4,837.00 |
| 500+ | ₹45.79 | ₹22,895.00 |
| 1,000+ | ₹44.28 | ₹44,280.00 |
1 × ₹69.64
₹69.64
excl. GST
₹82.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per bag
BS270
₹69.64 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 11pF
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 625mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 400mA
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 2Ω@10V
- Number
- 1 N-channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 10,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
These N-Channel enhancement mode field effect transistors are produced using proprietary, high cell density, DMOS technology. These products have been designed to minimize on-state resistance while provide rugged, reliable, and fast switching performance. They can be used in most applications requiring up to 500mA DC. These products are particularly suited for low voltage, low current applications such as small servo motor control, power MOSFET gate drivers, and other switching applications.
Applications
- small servo motor control
- power MOSFET gate drivers
- other switching applications
Key features
- 400mA, 60V. RDS(ON)=2Ω @ VGS=10V.
- High density cell design for low RDS(ON).
- Voltage controlled small signal switch.
- Rugged and reliable.
- High saturation current capability.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZVN2106A#C500798DIODES · TO-92-3 | DIODES | TO-92-3 | 4,000 | ₹138.50 · 4,000 in stock | View |
 | VN10KN3-G#C632599MICROCHIP · TO-92-3 | MICROCHIP | TO-92-3 | 3 | ₹203.77 · 3 in stock | View |
 | VN2222LL-G#C152170MICROCHIP · TO-92 | MICROCHIP | TO-92 | 41 | ₹74.86 · 41 in stock | View |
 | ZVN4206A#C507846DIODES · TO-92 | DIODES | TO-92 | 9 | ₹130.83 · 9 in stock | View |
 | ZVN4206AV#C6338323DIODES · TO-92 | DIODES | TO-92 | 7 | ₹126.69 · 7 in stock | View |
