DIODESDatasheet (PDF)

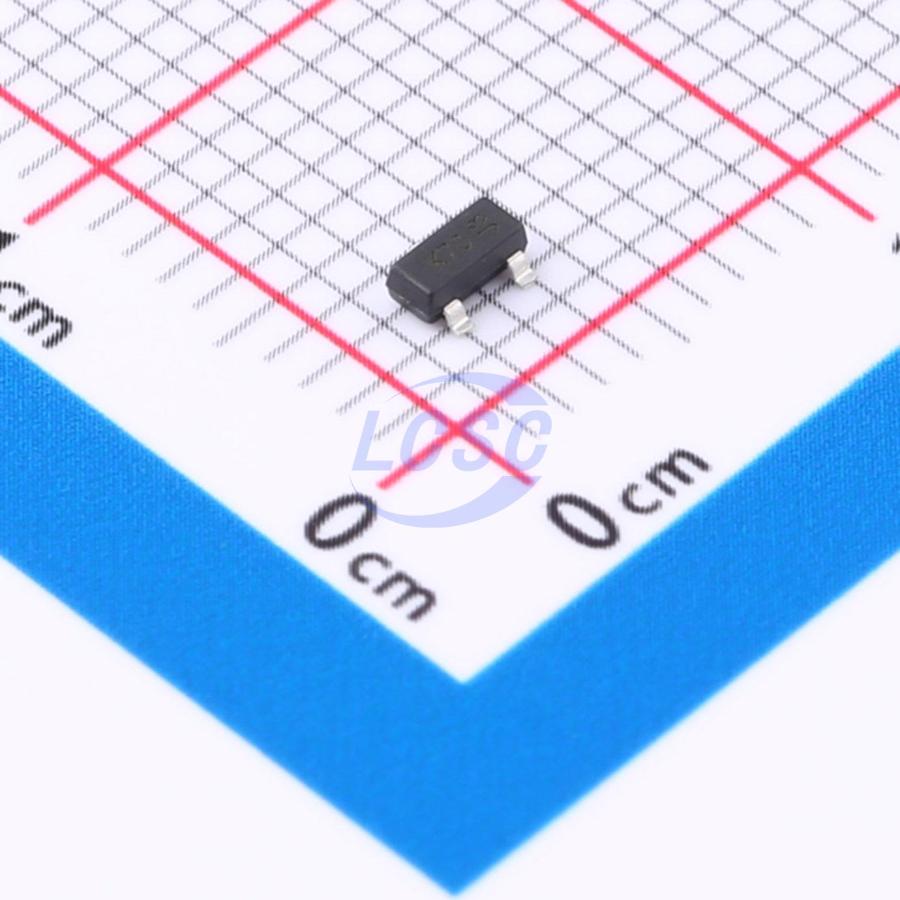

BS870Q-7-F
N-Channel 60V 250mA 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 60V 250mA SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- BS870Q-7-F
- Store part #
- C5248640
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C5248640
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.19 | ₹91.90 |
| 100+ | ₹7.47 | ₹747.00 |
| 300+ | ₹6.63 | ₹1,989.00 |
| 3,000+ | ₹5.98 | ₹17,940.00 |
| 6,000+ | ₹5.46 | ₹32,760.00 |
| 9,000+ | ₹5.21 | ₹46,890.00 |
10 × ₹9.19
₹91.90
excl. GST
₹108.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BS870Q-7-F
₹91.90 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 11pF
- Current - Continuous Drain(Id)
- 250mA
- Ciss-Input Capacitance
- 22pF
- Pd - Power Dissipation
- 300mW
- Reverse Transfer Capacitance (Crss)
- 2pF
- RDS(on)
- 3.5Ω@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.02 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It is AEC-Q101 qualified with PPAP support, making it ideal for the following applications: - Engine management systems - DC-DC converters - Body control electronics
Applications
- Engine Management Systems - DC-DC Converters - Body Control Electronics
Key features
- Low on-resistance
- Low gate threshold voltage
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- Fully lead-free and RoHS compliant
- Halogen and antimony free, "Green" device
- AEC-Q101 high reliability qualified
- PPAP capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSN20-7-F-VB#C18212459VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 200 | ₹9.23 · 200 in stock | View |
 | RK7002A-VB#C19188159VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹8.77 · 100 in stock | View |
 | AP2N7002K-HF-VB#C19190131VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 10 | ₹7.50 · 10 in stock | View |
 | BSS670S2L-VB#C20417443VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 30 | ₹9.18 · 30 in stock | View |
 | 5LN01C-TB-E-VB#C20755117VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 40 | ₹7.50 · 40 in stock | View |
