HXY MOSFETDatasheet (PDF)

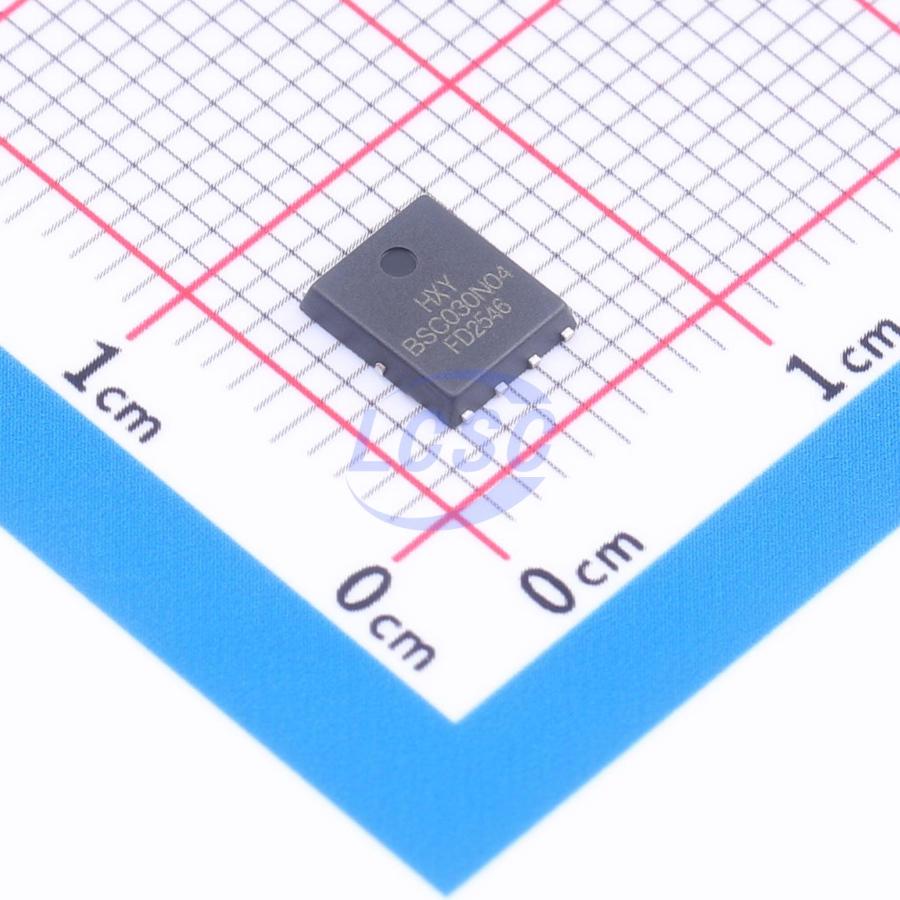

BSC030N04NSGATMA1-HXY
40V 130A 2.8mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- BSC030N04NSGATMA1-HXY
- Store part #
- C53262882
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C53262882
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.04 | ₹79.04 |
| 10+ | ₹63.15 | ₹631.50 |
| 30+ | ₹56.49 | ₹1,694.70 |
| 100+ | ₹48.12 | ₹4,812.00 |
| 500+ | ₹44.47 | ₹22,235.00 |
| 1,000+ | ₹42.10 | ₹42,100.00 |
1 × ₹79.04
₹79.04
excl. GST
₹93.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC030N04NSGATMA1-HXY
₹79.04 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 410pF
- Ciss-Input Capacitance
- 5.584nF
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 130A
- Reverse Transfer Capacitance (Crss)
- 338pF
- RDS(on)
- 2.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 64nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC032N04LSATMA1-HXY#C53262876HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 82 | ₹100.94 · 82 in stock | View |
 | IPC90N04S5L3R3ATMA1-HXY#C53262877HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 48 | ₹103.52 · 48 in stock | View |
 | NVMFS5C450NWFAFT1G-HXY#C53262878HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 48 | ₹86.34 · 48 in stock | View |
 | NTMFS5H431NLT1G-HXY#C53262879HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 48 | ₹97.73 · 48 in stock | View |
 | NVMFS5C450NAFT1G-HXY#C53262880HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 28 | ₹113.83 · 28 in stock | View |
