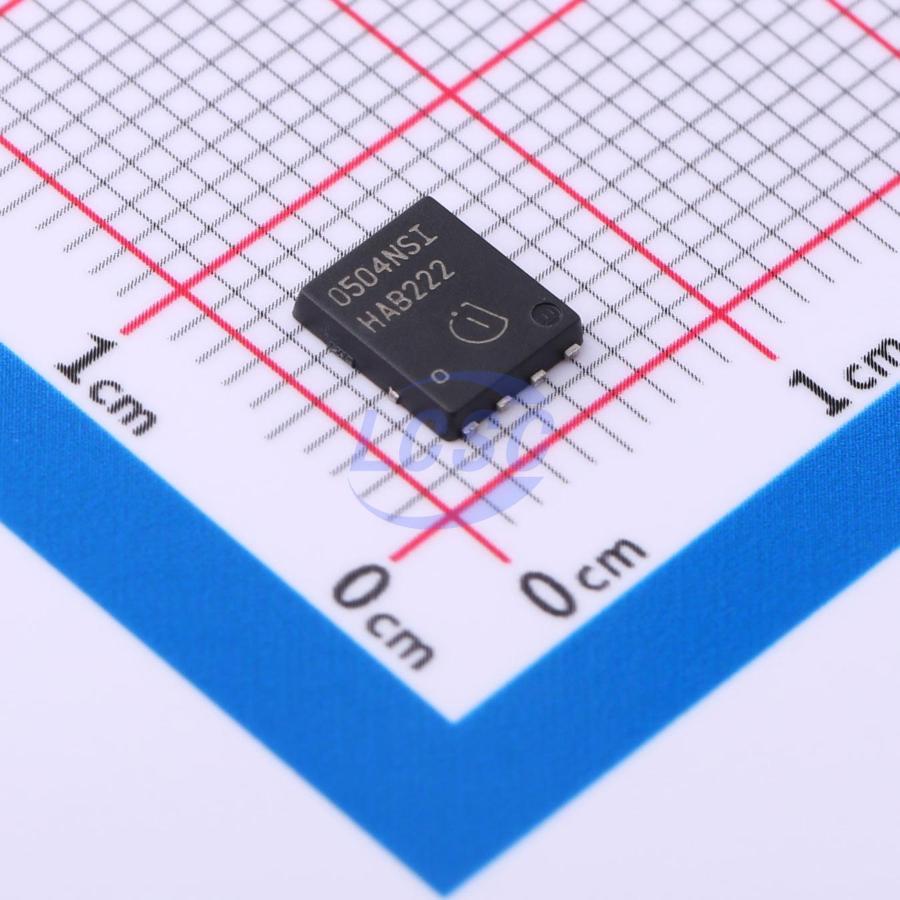

BSC0504NSI
N-Channel 30V 64A 30W Surface Mount TDSON-8(5x6)
TDSON-8(5x6)ROHS3 CompliantActive
MOSFET N-CH 30V 64A TDSON-8(5x6)
- Manufacturer
- Infineon
- Manufacturer part #
- BSC0504NSI
- Store part #
- C534345
- Package / case
- TDSON-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
194 in stock
#C534345
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.41 | ₹111.41 |
| 10+ | ₹92.44 | ₹924.40 |
| 30+ | ₹82.85 | ₹2,485.50 |
| 100+ | ₹73.25 | ₹7,325.00 |
| 500+ | ₹64.97 | ₹32,485.00 |
| 1,000+ | ₹62.14 | ₹62,140.00 |
1 × ₹111.41
₹111.41
excl. GST
₹131.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC0504NSI
₹111.41 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 250pF
- Ciss-Input Capacitance
- 960pF
- Pd - Power Dissipation
- 30W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 64A
- Reverse Transfer Capacitance (Crss)
- 29pF
- RDS(on)
- 3.7mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.2nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
Key features
- Optimized for high performance buck converters
- Monolithic integrated Schottky-like diode
- Very low on-resistance Rps(on) @ V05 = 4.5 V
- 100% avalanche tested
- N-channel
- Qualified according to JEDEC for target applications
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
