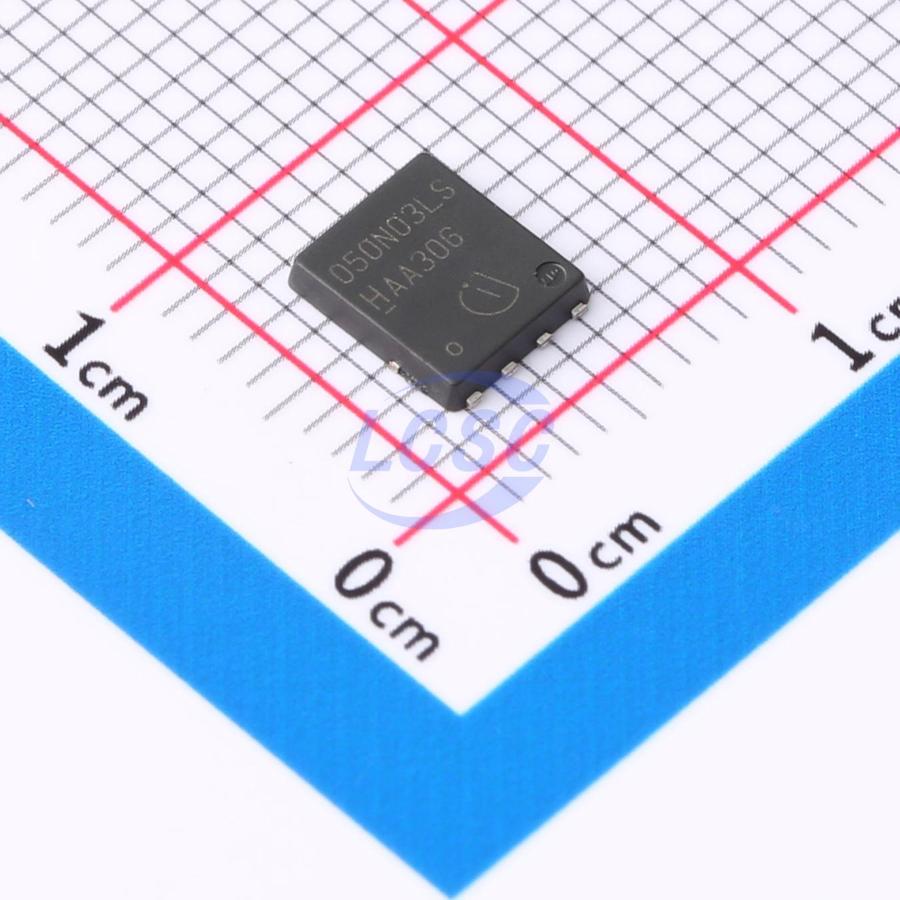

BSC050N03LSGATMA1
N-Channel 30V 80A 50W Surface Mount TDSON-8
TDSON-8ROHS3 CompliantSold out at source
MOSFET N-CH 30V 80A TDSON-8
- Manufacturer
- Infineon
- Manufacturer part #
- BSC050N03LSGATMA1
- Store part #
- C7220843
- Package / case
- TDSON-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C7220843
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹115.96 | ₹115.96 |
| 10+ | ₹92.85 | ₹928.50 |
| 30+ | ₹81.40 | ₹2,442.00 |
| 100+ | ₹69.95 | ₹6,995.00 |
| 500+ | ₹63.20 | ₹31,600.00 |
| 1,000+ | ₹59.52 | ₹59,520.00 |
1 × ₹115.96
₹115.96
excl. GST
₹136.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC050N03LSGATMA1
₹115.96 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 790pF
- Ciss-Input Capacitance
- 2.8nF
- Pd - Power Dissipation
- 50W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 4.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.142 g
Overview
Key features
- Fast switching MOSFET for SMPS
- Technology optimized for DC/DC converters
- JEDEC compliant for target applications
- N-channel; logic level
- Excellent gate charge × RDS(on) figure of merit (FOM)
- Ultra-low on-resistance RDS(on)
- Superior thermal resistance
- Avalanche rated
- Lead-free plating; RoHS compliant
- Halogen-free per IEC61249-2-21
