HXY MOSFETDatasheet (PDF)

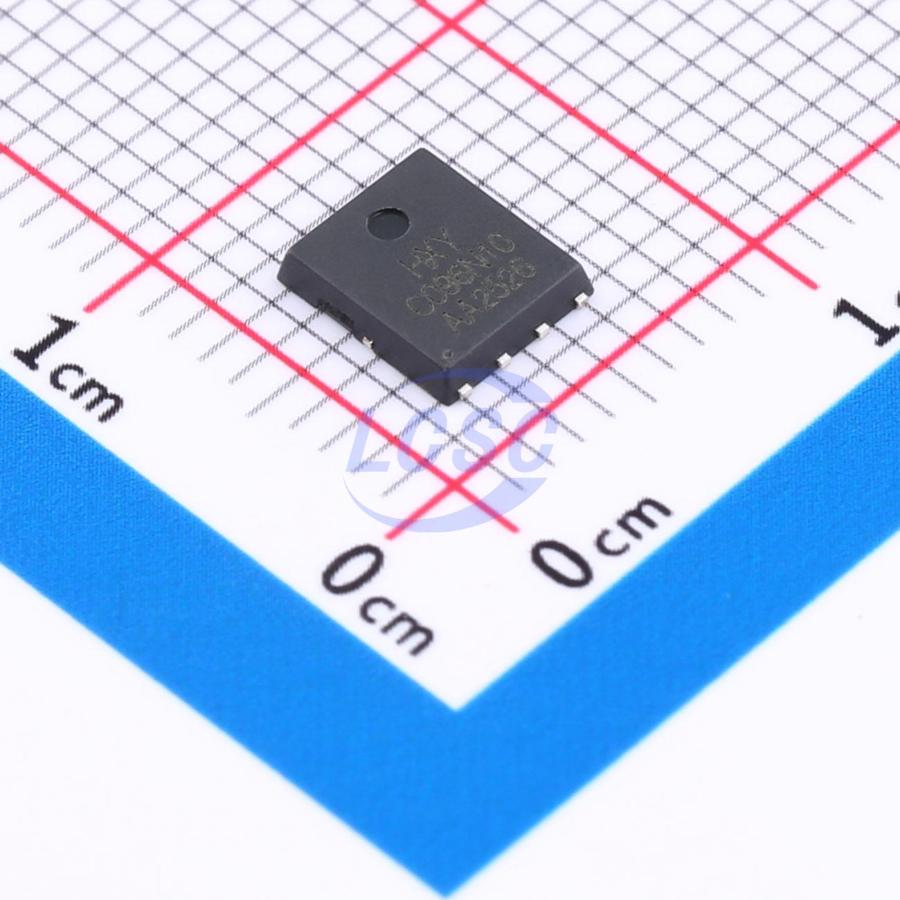

BSC096N10LS5ATMA1-HXY
100V 80A 97W 6.4mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
MOSFET 100V 75A DFN-8L(5x6)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- BSC096N10LS5ATMA1-HXY
- Store part #
- C49420409
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
109 in stock
#C49420409
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.37 | ₹92.37 |
| 10+ | ₹90.41 | ₹904.10 |
| 30+ | ₹89.12 | ₹2,673.60 |
| 100+ | ₹87.82 | ₹8,782.00 |
1 × ₹92.37
₹92.37
excl. GST
₹109.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC096N10LS5ATMA1-HXY
₹92.37 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 80A
- Output Capacitance(Coss)
- 736pF
- Ciss-Input Capacitance
- 2.944nF
- Pd - Power Dissipation
- 97W
- Reverse Transfer Capacitance (Crss)
- 2.04pF
- RDS(on)
- 6.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 39.4nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.145 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HBSC098N10NS5ATMA1#C42401096HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 93 | ₹91.31 · 93 in stock | View |
| HFDMS86101#C42401236HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 46 | ₹128.23 · 46 in stock | View | |
 | HCSD19533Q5A#C42401347HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 98 | ₹86.22 · 98 in stock | View |
 | BSC0805LSATMA1-HXY#C48972106HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 261 | ₹65.05 · 261 in stock | View |
 | BSC070N10LS5ATMA1-HXY#C48972107HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 144 | ₹146.14 · 144 in stock | View |
