VBsemi ElecDatasheet (PDF)

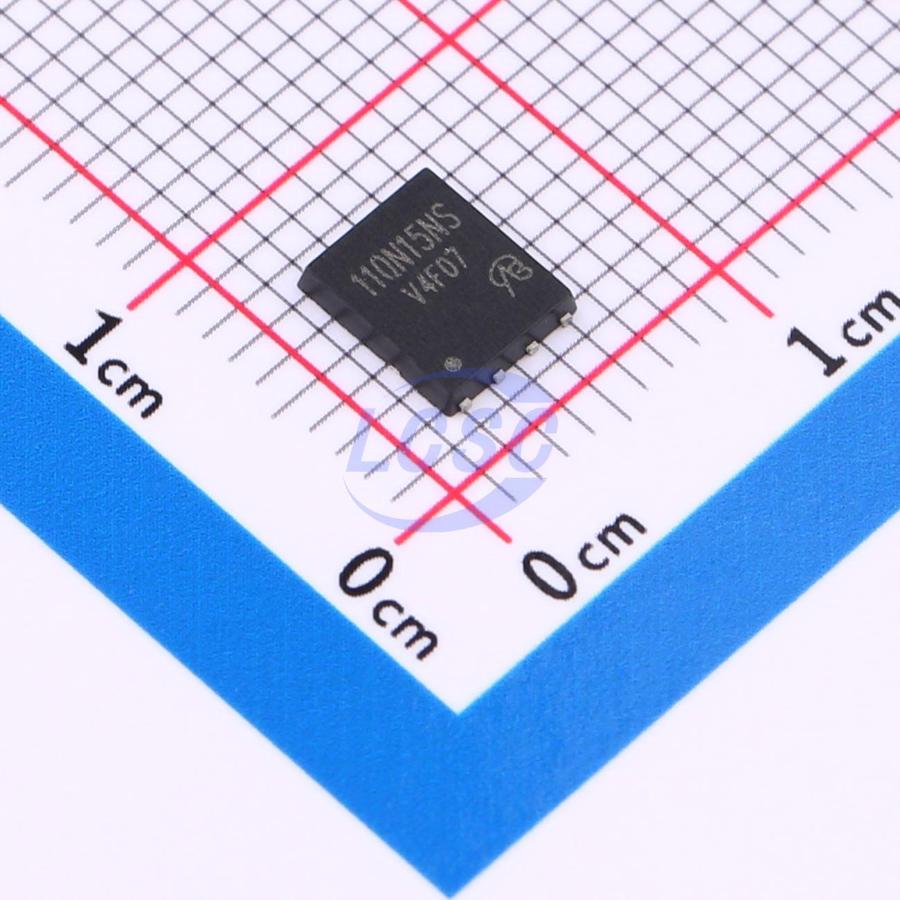

BSC110N15NS5-VB
N-Channel 150V 70A 136W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET N-CH 150V 70A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BSC110N15NS5-VB
- Store part #
- C22395968
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22395968
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹313.55 | ₹313.55 |
| 10+ | ₹275.46 | ₹2,754.60 |
| 30+ | ₹251.58 | ₹7,547.40 |
| 100+ | ₹176.47 | ₹17,647.00 |
| 500+ | ₹165.49 | ₹82,745.00 |
| 1,000+ | ₹160.76 | ₹1,60,760.00 |
1 × ₹313.55
₹313.55
excl. GST
₹369.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC110N15NS5-VB
₹313.55 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 150V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 7.3nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 15mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.8 g
Overview
Applications
- Primary-side switching - Synchronous rectification - DC/AC inverter
Key features
- 175°C Junction Temperature SGT technology Power MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC093N15NS5ATMA1-VB#C22395970VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 1 | ₹232.53 · 1 in stock | View |
| SIR696DP-T1-GE3-VB#C22396005VBsemi Elec · DFN-8-EP(5x6) | VBsemi Elec | DFN-8-EP(5x6) | 60 | ₹332.50 · 60 in stock | View | |
 | BSC110N15NS5ATMA1-VB#C22395967VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | On request | ₹241.99 · 0 in stock | View |
| BSC093N15NS5-VB#C22395971VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | On request | ₹263.41 · 0 in stock | View | |
| VBGQA1151N#C42412661VBsemi Elec · DFN-8(5x6) | VBsemi Elec | DFN-8(5x6) | On request | ₹289.42 · 0 in stock | View | |
