TECH PUBLICDatasheet (PDF)

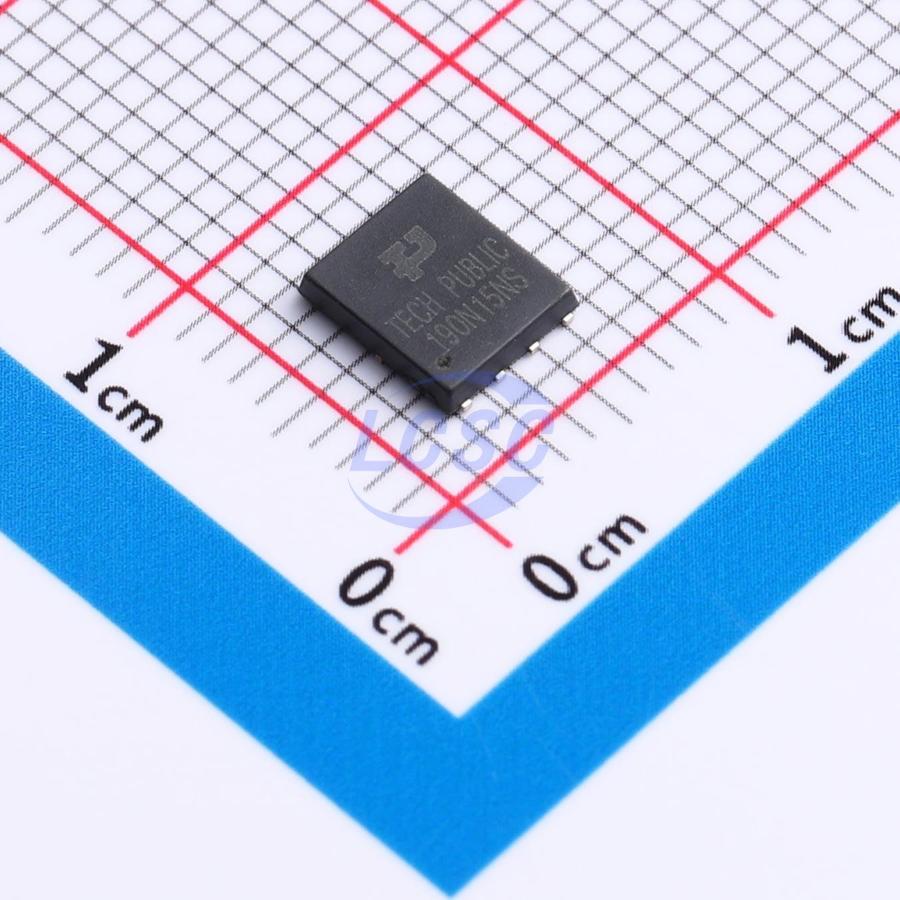

BSC190N15NS3G-TP
150V 50A 120W 13mΩ@10V 1 N-channel PDFN-8(5x6) Single FETs, MOSFETs RoHS
PDFN-8(5x6)ROHS CompliantActive
MOSFET 150V 50A PDFN-8(5x6)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- BSC190N15NS3G-TP
- Store part #
- C49375117
- Package / case
- PDFN-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,559 in stock
#C49375117
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹108.67 | ₹108.67 |
| 10+ | ₹87.99 | ₹879.90 |
| 30+ | ₹77.75 | ₹2,332.50 |
| 100+ | ₹67.30 | ₹6,730.00 |
| 500+ | ₹61.20 | ₹30,600.00 |
| 1,000+ | ₹58.16 | ₹58,160.00 |
1 × ₹108.67
₹108.67
excl. GST
₹128.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC190N15NS3G-TP
₹108.67 for 1 + GST
Specifications
- Drain to Source Voltage
- 150V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 293pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 2.23nF
- Pd - Power Dissipation
- 120W
- Reverse Transfer Capacitance (Crss)
- 22pF
- RDS(on)
- 13mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 30nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.177 g
Overview
Applications
- Load switch
- High-frequency switching and synchronous rectification
- Active clamp in intermediate-stage DC-DC power supplies
Key features
- Drain-Source Voltage (VDS): 150 V
- Drain-Source Current (IDS, VGS = 10V): 50A
- On-State Resistance RDS(ON) (VGS = 10V) ≤ 13mΩ (typical)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFH5015TRPBF-TP#C49374626TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 466 | ₹90.19 · 466 in stock | View |
 | FDMS2572-TP#C49374627TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 435 | ₹90.19 · 435 in stock | View |
 | SI7738DP-TP#C49374628TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 332 | ₹90.19 · 332 in stock | View |
 | SI7430DP-TP#C49374629TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 4,616 | ₹89.10 · 4,616 in stock | View |
 | FDMS86255-TP#C49375113TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 475 | ₹89.92 · 475 in stock | View |
