VBsemi ElecDatasheet (PDF)

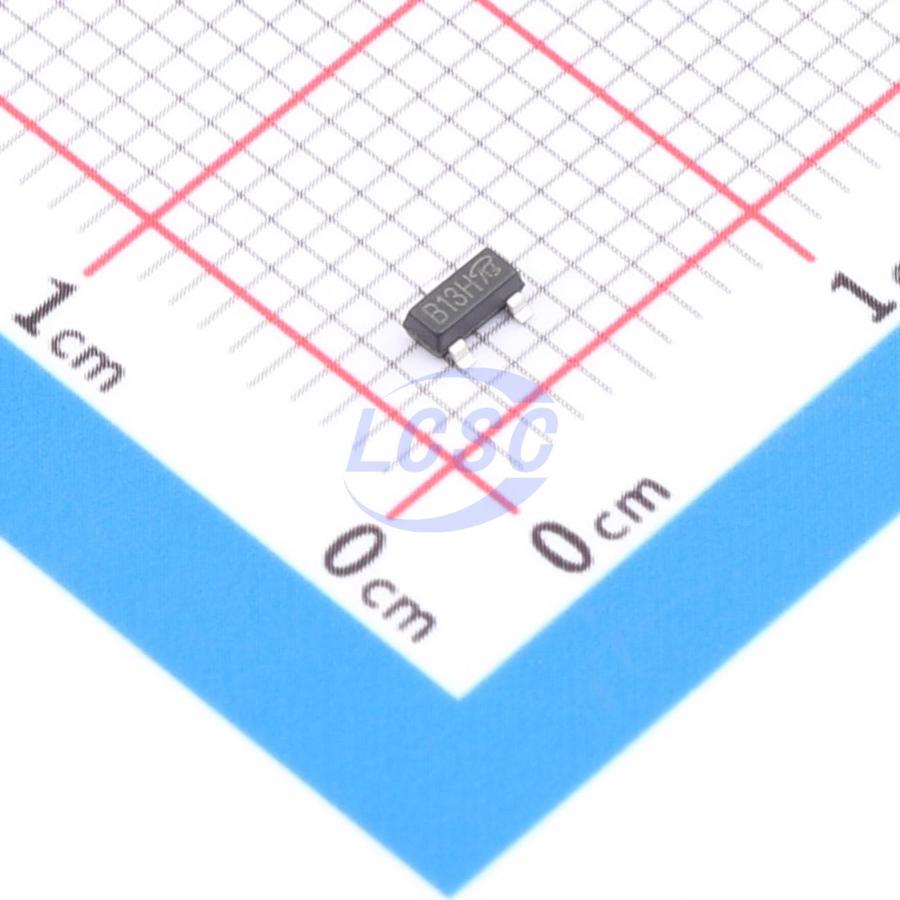

BSH103,215-VB
1.7W 30V 6.5A 30mΩ@10V 1 N-channel N-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BSH103,215-VB
- Store part #
- C52148519
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C52148519
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.51 | ₹72.55 |
| 50+ | ₹11.74 | ₹587.00 |
| 150+ | ₹10.36 | ₹1,554.00 |
| 500+ | ₹9.31 | ₹4,655.00 |
| 3,000+ | ₹7.63 | ₹22,890.00 |
| 6,000+ | ₹7.22 | ₹43,320.00 |
5 × ₹14.51
₹72.55
excl. GST
₹85.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BSH103,215-VB
₹72.55 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 45pF
- Ciss-Input Capacitance
- 335pF
- Pd - Power Dissipation
- 1.7W
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6.5A
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 30mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.5nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.28 g
Overview
Applications
- DC-DC Converter
Key features
- Meets halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- Compliant with RoHS Directive 2002/95/EC
- RoHS compliant
- Halogen-free
