TECH PUBLICDatasheet (PDF)

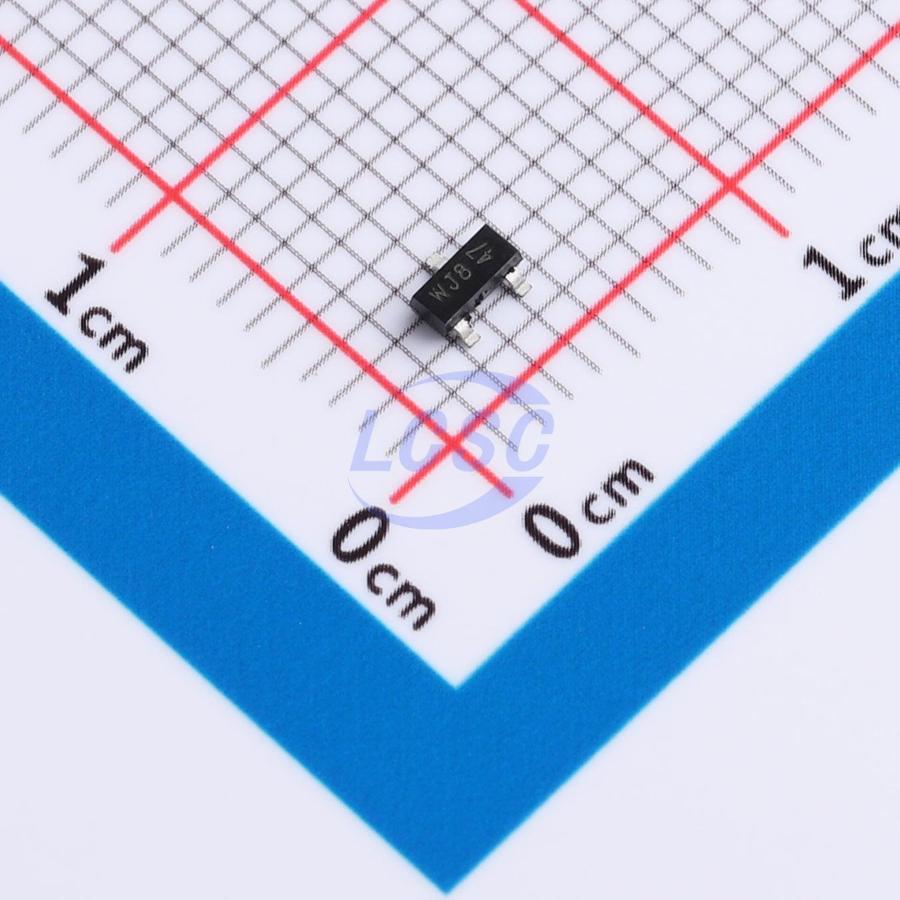

BSH203(TP)
1.25W 30V 1.2A 300mΩ@4.5V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- BSH203(TP)
- Store part #
- C52817073
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,870 in stock
#C52817073
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.82 | ₹54.10 |
| 50+ | ₹8.53 | ₹426.50 |
| 150+ | ₹7.38 | ₹1,107.00 |
| 500+ | ₹6.52 | ₹3,260.00 |
| 3,000+ | ₹5.83 | ₹17,490.00 |
| 6,000+ | ₹5.49 | ₹32,940.00 |
5 × ₹10.82
₹54.10
excl. GST
₹63.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BSH203(TP)
₹54.10 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 80pF
- Ciss-Input Capacitance
- 200pF
- Pd - Power Dissipation
- 1.25W
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 1.2A
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 300mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 6nC
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 700mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.018 g
Overview
Applications
- Interface switching circuits - Portable devices and batteries - Load switches
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AO3401#C5370945TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 1,440 | ₹5.24 · 1,440 in stock | View |
 | SI2319DDS(TP)#C53100530TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 5,940 | ₹10.62 · 5,940 in stock | View |
 | DMP4065S#C5122018TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,750 | ₹17.24 · 1,750 in stock | View |
 | SI2319CDS#C5122036TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,755 | ₹13.31 · 3,755 in stock | View |
 | SI2319DS#C5122037TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 7,620 | ₹11.14 · 7,620 in stock | View |
