HXY MOSFETDatasheet (PDF)

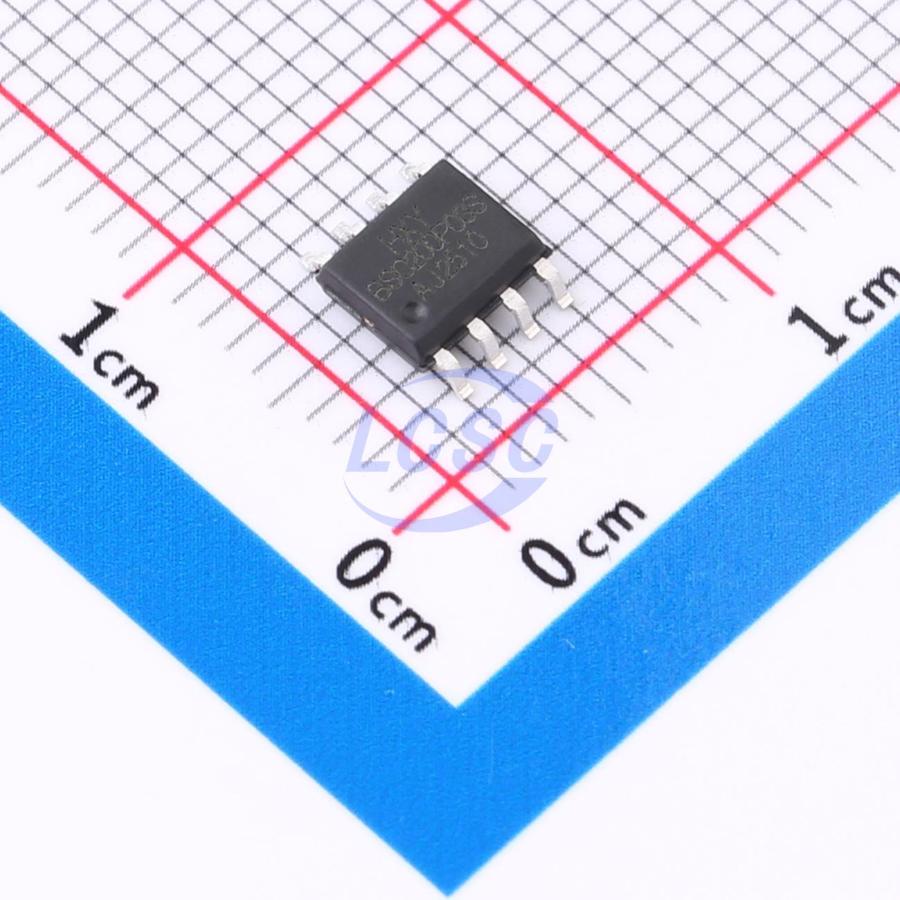

BSO200P03S-HXY
30V 11A 3.7W Surface Mount SOP-8
SOP-8ROHS CompliantActive
MOSFET 30V 11A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- BSO200P03S-HXY
- Store part #
- C48972158
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C48972158
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.07 | ₹170.35 |
| 50+ | ₹26.75 | ₹1,337.50 |
| 150+ | ₹23.62 | ₹3,543.00 |
| 500+ | ₹19.71 | ₹9,855.00 |
| 3,000+ | ₹17.97 | ₹53,910.00 |
| 6,000+ | ₹16.92 | ₹1,01,520.00 |
5 × ₹34.07
₹170.35
excl. GST
₹201.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BSO200P03S-HXY
₹170.35 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 183pF
- Current - Continuous Drain(Id)
- 11A
- Ciss-Input Capacitance
- 1.33nF
- Pd - Power Dissipation
- 3.7W
- Reverse Transfer Capacitance (Crss)
- 156pF
- RDS(on)
- 13mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 22nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.127 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOSP21321-HXY#C22367181HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 90 | ₹14.39 · 90 in stock | View |
 | HXY4435S#C3033411HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 3,780 | ₹14.01 · 3,780 in stock | View |
 | HSTS9P3LLH6#C42401319HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 45 | ₹77.95 · 45 in stock | View |
 | AO4435-HXY#C4748736HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 1,610 | ₹14.24 · 1,610 in stock | View |
 | IRF9332TRPBF-HXY#C48972129HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 450 | ₹52.38 · 450 in stock | View |
