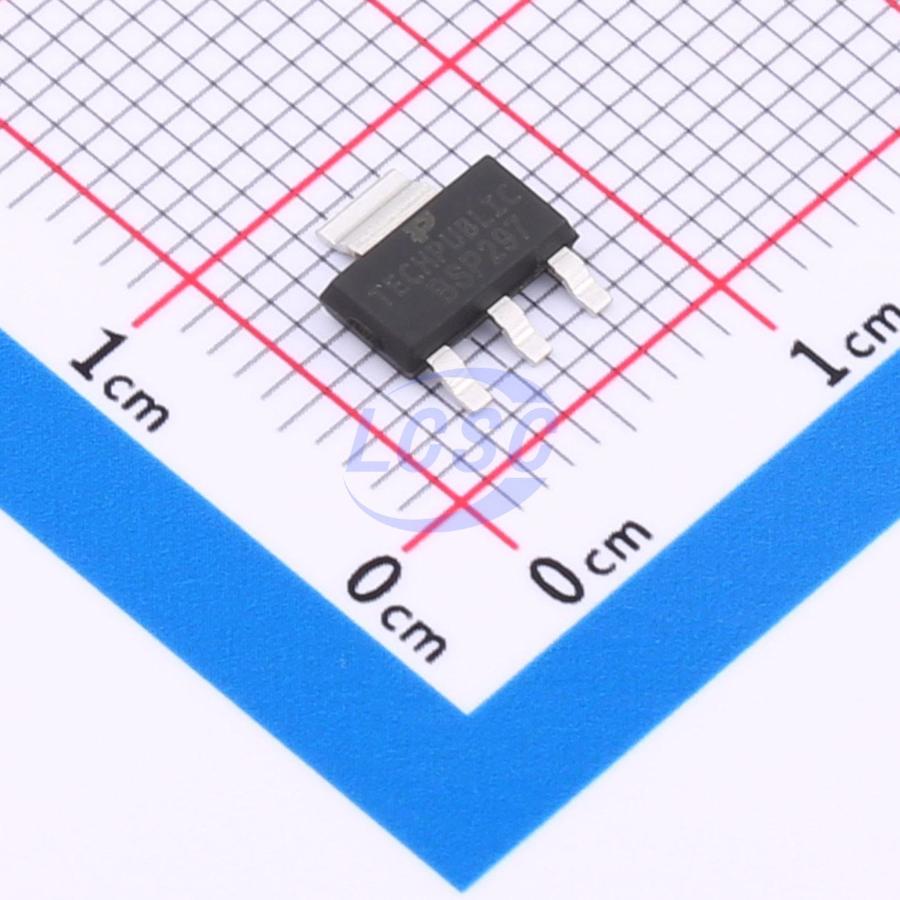

BSP297
200V 1A 2.1W Surface Mount SOT-223
SOT-223RoHSActive
MOSFET 200V 1A SOT-223
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- BSP297
- Store part #
- C7603338
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,325 in stock
#C7603338
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.70 | ₹168.50 |
| 50+ | ₹26.47 | ₹1,323.50 |
| 150+ | ₹23.36 | ₹3,504.00 |
| 500+ | ₹19.50 | ₹9,750.00 |
| 2,500+ | ₹17.78 | ₹44,450.00 |
| 5,000+ | ₹16.75 | ₹83,750.00 |
5 × ₹33.70
₹168.50
excl. GST
₹198.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BSP297
₹168.50 for 5 + GST
Specifications
- Drain to Source Voltage
- 200V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 1A
- Ciss-Input Capacitance
- 148pF
- Pd - Power Dissipation
- 2.1W
- Reverse Transfer Capacitance (Crss)
- 11.3pF
- RDS(on)
- 1.35Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 3.2nC@5V
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.736 g
Overview
Applications
- Power Supply
- Power Factor Correction (PFC)
- LED TV
Key features
- Drain-Source Voltage (VDS) = 200V
- Drain Current (ID) = 1.0A
- On-Resistance (RDS(ON)) ≤ 1.35Ω
- SOT-223 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSP122#C41348144TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 1,770 | ₹37.48 · 1,770 in stock | View |
 | IRFL210TRPBF-TP#C41348194TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 4,630 | ₹27.10 · 4,630 in stock | View |
 | ZVN2120GTA-TP#C41348308TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,685 | ₹38.31 · 2,685 in stock | View |
 | BSP149#C7603335TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,282 | ₹66.49 · 2,282 in stock | View |
 | STN4NF20L#C7603336TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 4,195 | ₹43.94 · 4,195 in stock | View |
