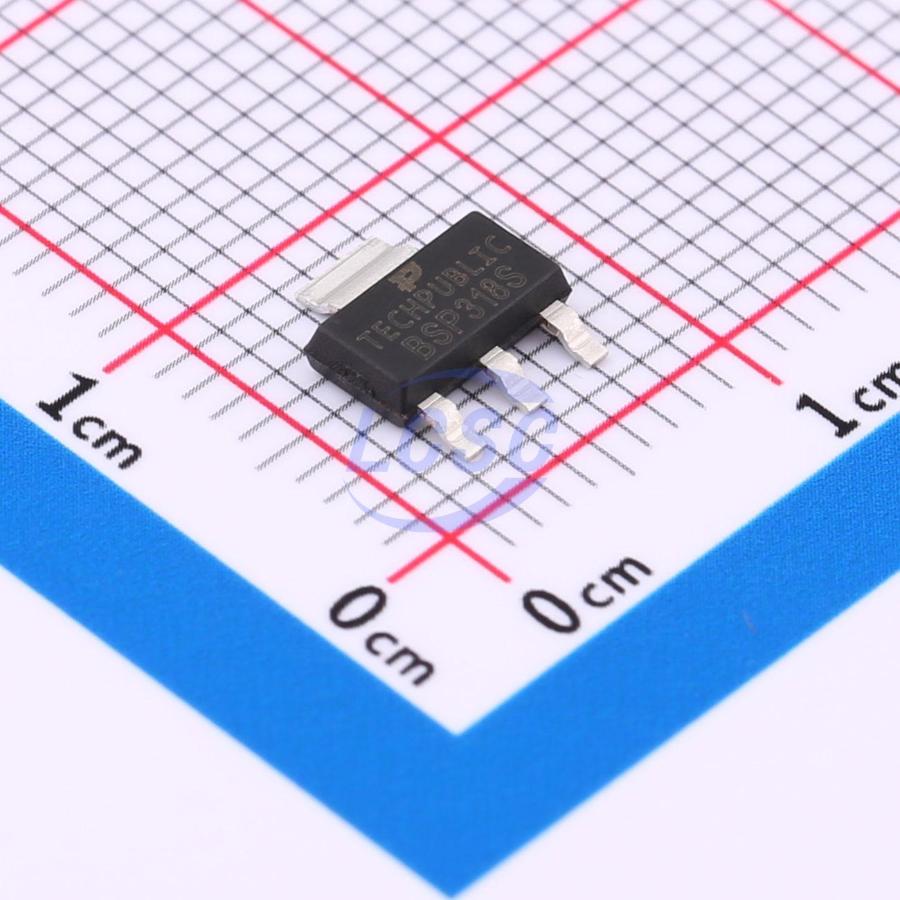

BSP318S
60V 4A 3W Surface Mount SOT-223
SOT-223RoHSActive
MOSFET 60V 4A SOT-223
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- BSP318S
- Store part #
- C7472941
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,045 in stock
#C7472941
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.87 | ₹194.35 |
| 50+ | ₹31.18 | ₹1,559.00 |
| 150+ | ₹27.89 | ₹4,183.50 |
| 500+ | ₹23.79 | ₹11,895.00 |
| 2,500+ | ₹20.00 | ₹50,000.00 |
| 5,000+ | ₹18.91 | ₹94,550.00 |
5 × ₹38.87
₹194.35
excl. GST
₹229.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BSP318S
₹194.35 for 5 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 70pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 530pF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 85mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13nC@30V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.225 g
Overview
Applications
- Load/power switch
- Interface switch
- Logic level translation
Key features
- 60V, 4A, R<sub>DS(ON)</sub> = 85mΩ at V<sub>GS</sub> = 10V, R<sub>DS(ON)</sub> = 100mΩ at V<sub>GS</sub> = 4.5V.
- High-density cell design for ultra-low R<sub>DS(ON)</sub>.
- Robust and reliable.
- Lead-free compliant.
- SOT-223 package.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLL014NTRPBF-TP#C41407976TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,565 | ₹36.01 · 2,565 in stock | View |
 | NTF3055L108T1G#C7472933TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 5,335 | ₹37.80 · 5,335 in stock | View |
 | STN3NF06L#C7472935TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 1,820 | ₹31.65 · 1,820 in stock | View |
 | TPM604NY3-1#C7472937TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 390 | ₹16.59 · 390 in stock | View |
 | TPM604NY3-2#C7472938TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 540 | ₹16.59 · 540 in stock | View |
