VBsemi ElecDatasheet (PDF)

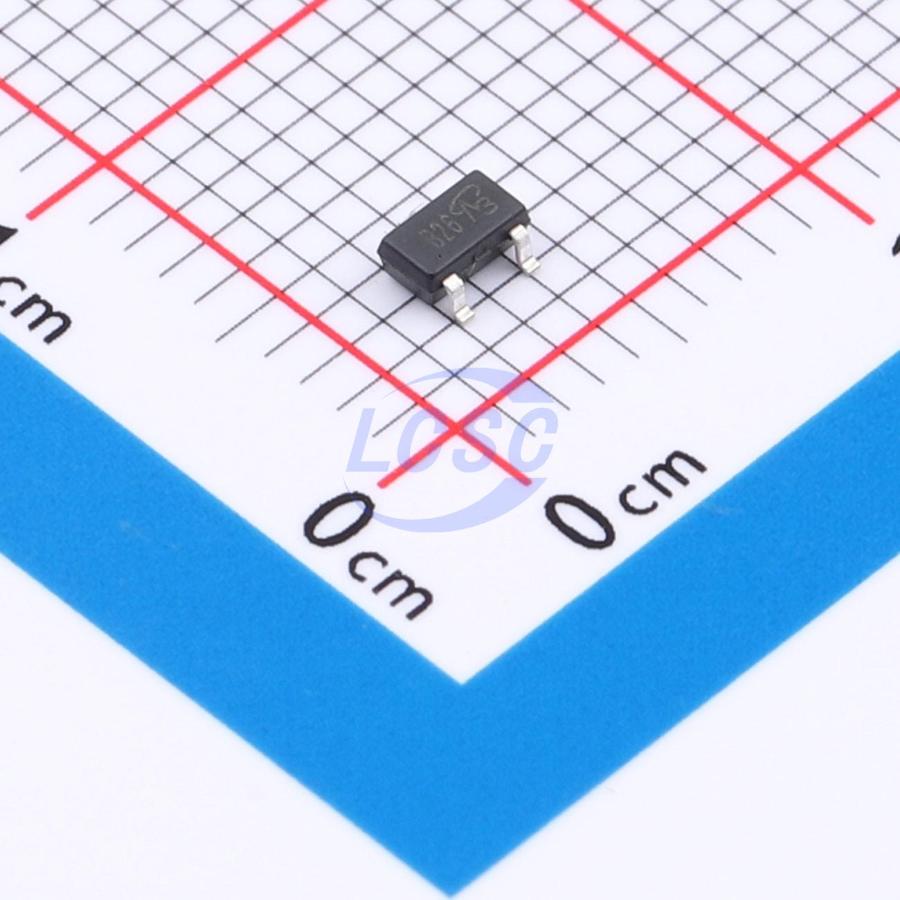

BSP613PH6327-VB
60V 5.2A 27W 50mΩ@10V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
MOSFET P-CH 60V 5.2A SOT-23
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BSP613PH6327-VB
- Store part #
- C50387031
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C50387031
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.23 | ₹251.15 |
| 50+ | ₹40.54 | ₹2,027.00 |
| 150+ | ₹36.38 | ₹5,457.00 |
| 500+ | ₹31.20 | ₹15,600.00 |
| 3,000+ | ₹28.89 | ₹86,670.00 |
| 6,000+ | ₹27.51 | ₹1,65,060.00 |
5 × ₹50.23
₹251.15
excl. GST
₹296.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BSP613PH6327-VB
₹251.15 for 5 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 170pF
- Current - Continuous Drain(Id)
- 5.2A
- Ciss-Input Capacitance
- 270pF
- Pd - Power Dissipation
- 27W
- Reverse Transfer Capacitance (Crss)
- 31pF
- RDS(on)
- 50mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.62 g
Overview
Key features
- Isolated package
- High voltage isolation = 2.5 kV RMS (t = 60 s; f = 60 Hz)
- Drain-to-pin creepage distance = 4.8 mm
- P-channel
- Operating temperature 175 °C
- Dynamic dV/dt rating
- Low thermal resistance
- Available in Pb-free versions
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDN5618P-NL-VB#C20626320VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 55 | ₹37.98 · 55 in stock | View |
 | AM2359PE-T1-PF-VB#C20626322VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 5 | ₹37.98 · 5 in stock | View |
 | AM2359P-T1-PF-VB#C20755036VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 45 | ₹43.92 · 45 in stock | View |
 | AM2361P-T1-PF-VB#C20755220VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 20 | ₹36.49 · 20 in stock | View |
 | CPH3351-TL-H-VB#C22389085VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 85 | ₹54.86 · 85 in stock | View |
