DIODESDatasheet (PDF)

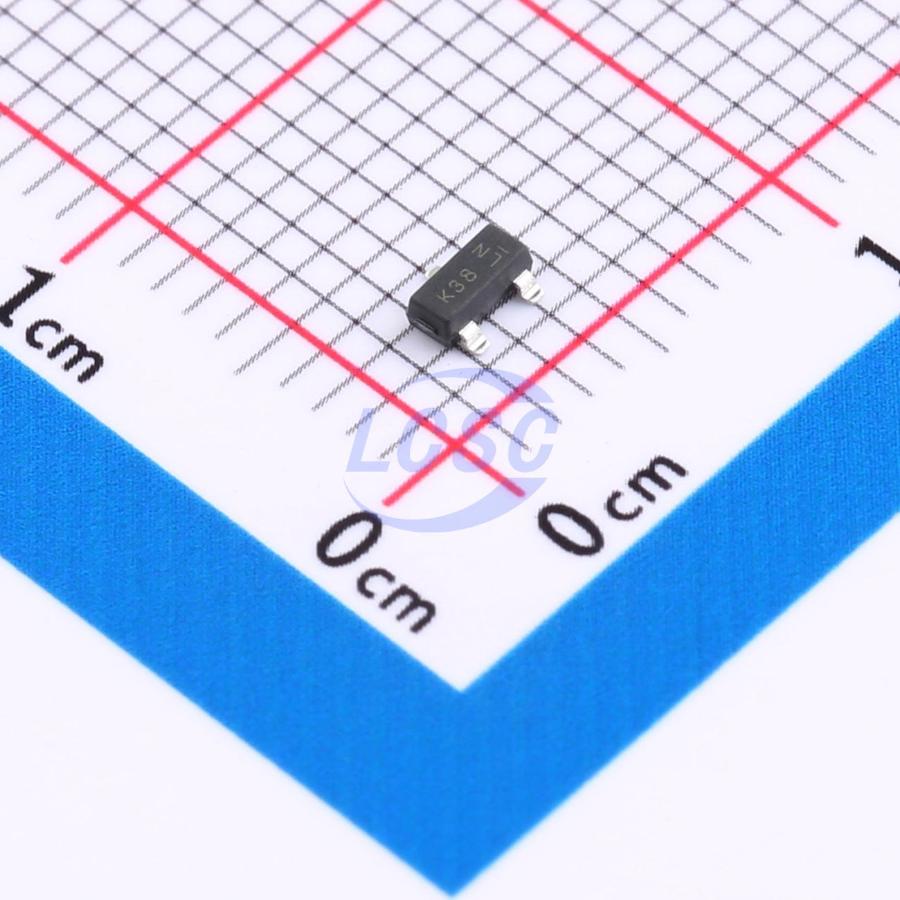

BSS138-7-F
N-Channel 50V 200mA 300mW Surface Mount SOT-23
PopularSOT-23ROHS3 CompliantActive
MOSFET N-CH 50V 200mA SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- BSS138-7-F
- Store part #
- C40912
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,39,500 in stock
#C40912
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.91 | ₹59.10 |
| 100+ | ₹4.66 | ₹466.00 |
| 300+ | ₹4.04 | ₹1,212.00 |
| 3,000+ | ₹3.53 | ₹10,590.00 |
| 6,000+ | ₹3.15 | ₹18,900.00 |
| 9,000+ | ₹2.96 | ₹26,640.00 |
10 × ₹5.91
₹59.10
excl. GST
₹69.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BSS138-7-F
₹59.10 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 50V
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 200mA
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 300mW
- Reverse Transfer Capacitance (Crss)
- 8pF
- RDS(on)
- 1.4Ω@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
This MOSFET is designed to minimize on-resistance RDS(ON) while maintaining exceptional switching performance, making it ideal for high-efficiency power management applications.
Applications
- System/load switch
- High-efficiency power management applications
Key features
- Low on-resistance
- Low gate threshold voltage
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "green" device
- JEDEC-compliant (ref. AEC-Q) with high reliability
- Automotive-grade version (BSS138Q) has a separate datasheet
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSS138#C347484UMW · SOT-23 | UMW | SOT-23 | 18,140 | ₹3.36 · 18,140 in stock | View |
 | BSS138#C2938375GOODWORK · SOT-23 | GOODWORK | SOT-23 | 12,800 | ₹3.08 · 12,800 in stock | View |
 | BSS138#C426569Slkor · SOT-23 | Slkor | SOT-23 | 9,900 | ₹3.04 · 9,900 in stock | View |
 | BSS138#C193019AnBon · SOT-23 | AnBon | SOT-23 | 3,020 | ₹3.60 · 3,020 in stock | View |
 | BSS138#C52895onsemi · SOT-23 | onsemi | SOT-23 | 57,790 | ₹9.57 · 57,790 in stock | View |
