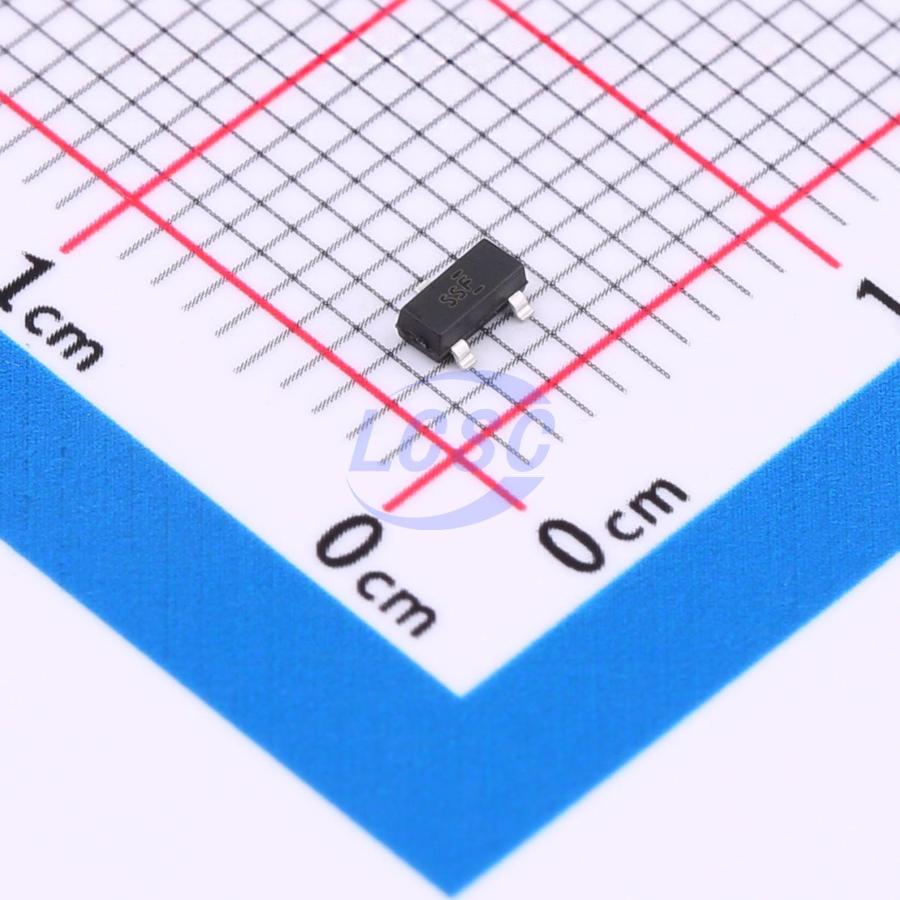

BSS138-G
50V 0.22A 0.36W Surface Mount SOT-23-3
SOT-23-3ROHS3 CompliantActive
MOSFET 50V 0.22A SOT-23-3
- Manufacturer
- onsemi
- Manufacturer part #
- BSS138-G
- Store part #
- C890264
- Package / case
- SOT-23-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,585 in stock
#C890264
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.74 | ₹163.70 |
| 50+ | ₹25.38 | ₹1,269.00 |
| 150+ | ₹22.23 | ₹3,334.50 |
| 500+ | ₹18.30 | ₹9,150.00 |
| 3,000+ | ₹16.54 | ₹49,620.00 |
| 6,000+ | ₹15.49 | ₹92,940.00 |
5 × ₹32.74
₹163.70
excl. GST
₹193.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BSS138-G
₹163.70 for 5 + GST
Specifications
- Drain to Source Voltage
- 50V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 220mA
- Ciss-Input Capacitance
- 27pF
- Pd - Power Dissipation
- 360mW
- RDS(on)
- 6Ω@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 2.4nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
These N−Channel enhancement mode field effect transistors are produced using onsemi’s proprietary, high cell density, DMOS technology. These products have been designed to minimize on−state resistance while provide rugged, reliable, and fast switching performance. These products are particularly suited for low voltage, low current applications such as small servo motor control, power MOSFET gate drivers, and other switching applications.
Applications
- small servo motor control
- power MOSFET gate drivers
- other switching applications
Key features
- RDS(on)=3.5 Ω @ VGS=10 V
- RDS(on)=6.0 Ω @ VGS=4.5 V
- High Density Cell Design for Extremely Low RDS(on)
- Rugged and Reliable
- Compact Industry Standard SOT−23 Surface Mount Package
- This Device is Pb−Free and Halogen Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSS138#C2874697JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 1,49,700 | ₹2.12 · 1,49,700 in stock | View |
 | BSS138#C52895onsemi · SOT-23 | onsemi | SOT-23 | 57,790 | ₹9.57 · 57,790 in stock | View |
 | BSS138#C3040446FUXINSEMI · SOT-23 | FUXINSEMI | SOT-23 | 5,880 | ₹2.21 · 5,880 in stock | View |
 | BSS138#C5279927JUXING · SOT-23 | JUXING | SOT-23 | 340 | ₹3.33 · 340 in stock | View |
| BSS138#C19626400YFW · SOT-23 | YFW | SOT-23 | 2,980 | ₹3.16 · 2,980 in stock | View | |
