JSMSEMIDatasheet (PDF)

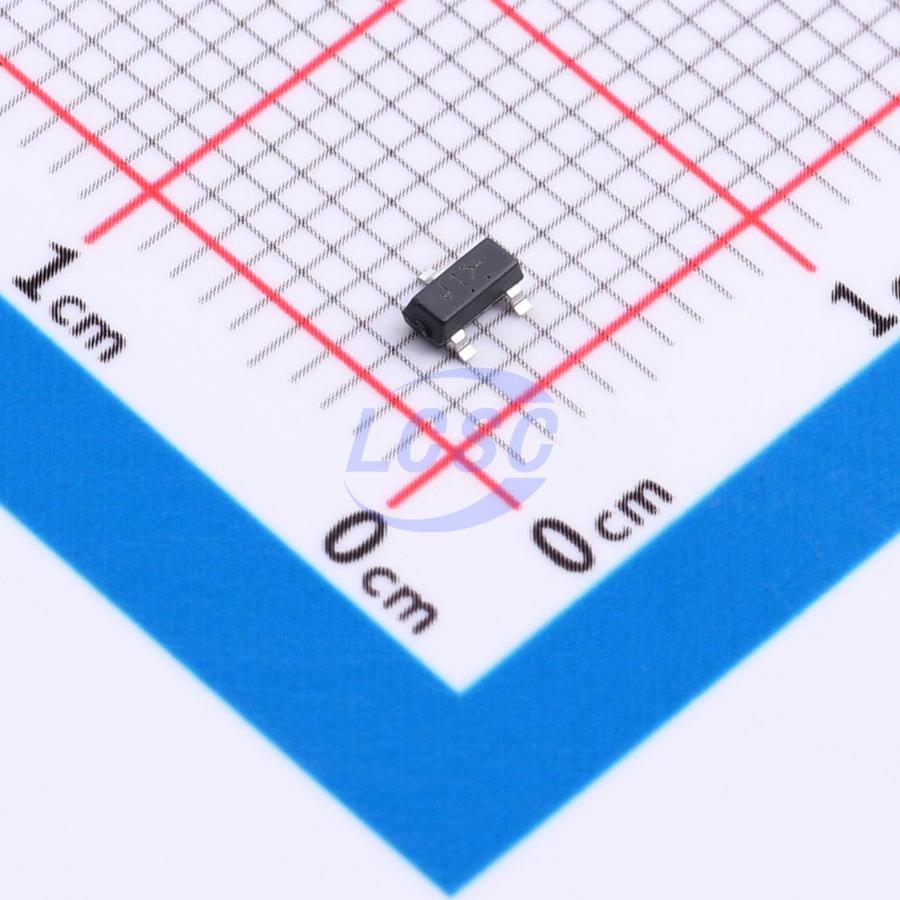

BSS138P-JSM
830mW 60V 500mA 1.9Ω@10V 1 N-channel N-Channel SOT-23 Single FETs, MOSFETs RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- BSS138P-JSM
- Store part #
- C53114025
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,250 in stock
#C53114025
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.65 | ₹82.50 |
| 500+ | ₹1.28 | ₹640.00 |
| 3,000+ | ₹1.08 | ₹3,240.00 |
| 6,000+ | ₹0.9658 | ₹5,794.80 |
| 24,000+ | ₹0.860 | ₹20,640.00 |
| 51,000+ | ₹0.7938 | ₹40,483.80 |
50 × ₹1.65
₹82.50
excl. GST
₹97.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BSS138P-JSM
₹82.50 for 50 + GST
Specifications
- Output Capacitance(Coss)
- 4.2pF
- Ciss-Input Capacitance
- 30pF
- Pd - Power Dissipation
- 830mW
- Drain to Source Voltage
- 60V
- Configuration
- Standalone
- Current - Continuous Drain(Id)
- 500mA
- Reverse Transfer Capacitance (Crss)
- 3pF
- RDS(on)
- 1.9Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 305pC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.032 g
Overview
Key features
- Surface mount package
- Advanced trench cell design
- Ultra-low threshold voltage
- ESD protection (HBM > 2KV)
- BV = 60V
- Ptot = 0.83W
- ID = 0.5A
- RDs(ON) ≤ 3 Ω @ VGs = 10V
- RDs(ON) = 4 Ω @ VGs = 4.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2N7002BK-JSM#C18190203JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 2,940 | ₹2.92 · 2,940 in stock | View |
 | 2N7002P,215-JSM#C53113838JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 2,960 | ₹3.28 · 2,960 in stock | View |
 | 2N7002,215-JSM#C53113848JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 2,350 | ₹2.28 · 2,350 in stock | View |
 | 2N7002BK,215-JSM#C53113861JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 2,440 | ₹2.92 · 2,440 in stock | View |
 | BSS138P,215-JSM#C53113863JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 1,050 | ₹1.77 · 1,050 in stock | View |
