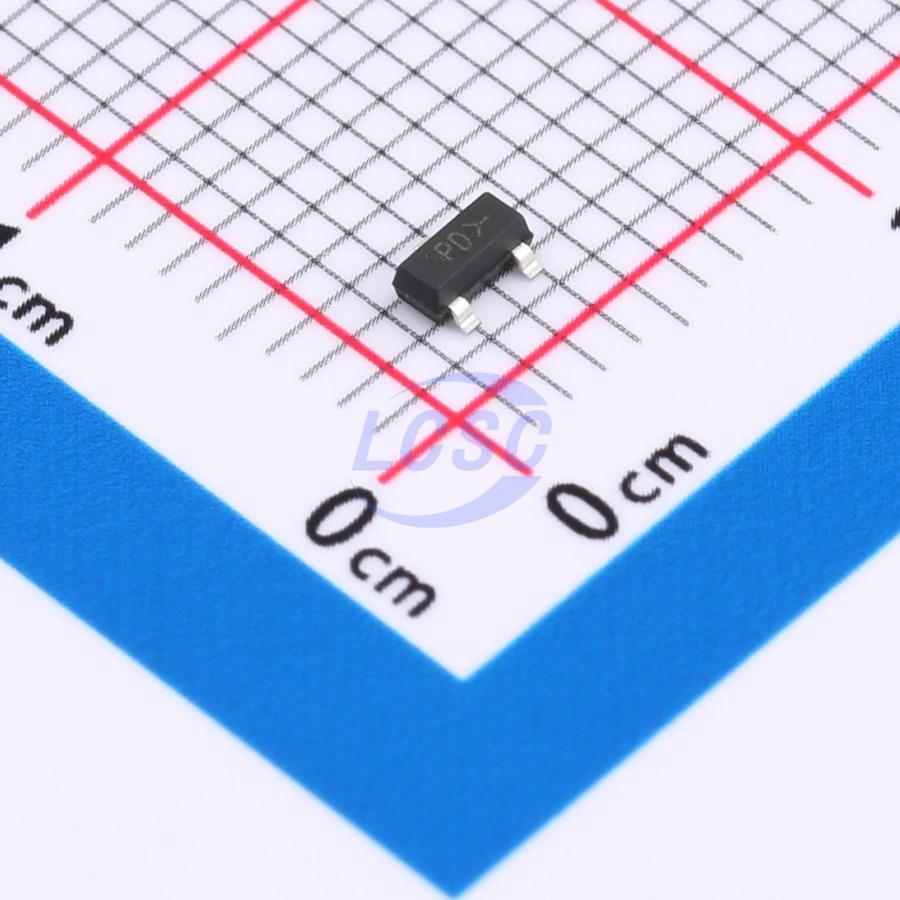

BSS84AK-VB
P-Channel 60V 500mA 460mW Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 60V 500mA SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BSS84AK-VB
- Store part #
- C18212582
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C18212582
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.99 | ₹99.90 |
| 100+ | ₹8.11 | ₹811.00 |
| 300+ | ₹7.17 | ₹2,151.00 |
| 3,000+ | ₹5.45 | ₹16,350.00 |
| 6,000+ | ₹4.88 | ₹29,280.00 |
| 9,000+ | ₹4.60 | ₹41,400.00 |
10 × ₹9.99
₹99.90
excl. GST
₹117.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BSS84AK-VB
₹99.90 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 10pF
- Current - Continuous Drain(Id)
- 500mA
- Ciss-Input Capacitance
- 23pF
- Pd - Power Dissipation
- 460mW
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 4Ω@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 2nC@15V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
Key features
- Halogen-free According to IEC 61249-2-2 Definition TrenchFET Power MOSFET
- High-Side Switching
- Low On-Resistance: 3
- Low Threshold: - 2 V (typ.)
- Fast Swtiching Speed: 20 ns (typ.)
- Low Input Capacitance: 20 pF (typ.)
- Compliant to RoHS Directive 2002/95/EC
