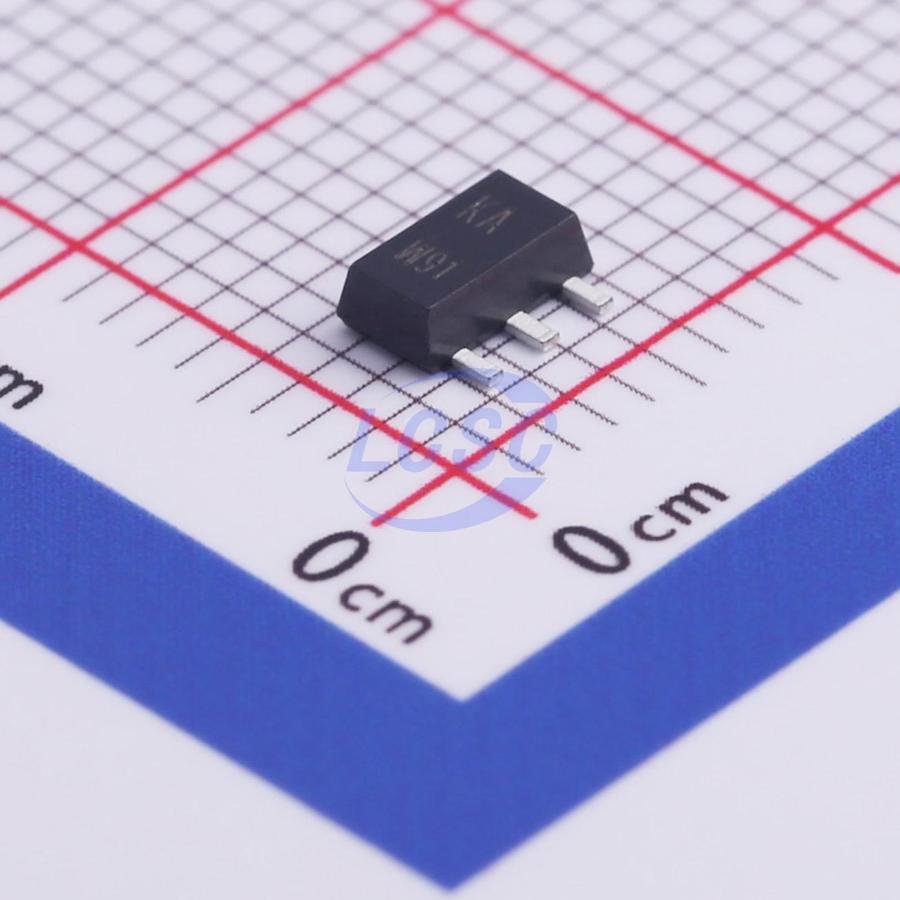

BSS87,115
N-Channel 200V 400mA 580mW 12.5W Surface Mount SOT-89
SOT-89ROHS3 CompliantActive
MOSFET N-CH 200V 400mA SOT-89
- Manufacturer
- Nexperia
- Manufacturer part #
- BSS87,115
- Store part #
- C455067
- Package / case
- SOT-89
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
394 in stock
#C455067
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.24 | ₹76.24 |
| 10+ | ₹59.52 | ₹595.20 |
| 30+ | ₹52.35 | ₹1,570.50 |
| 100+ | ₹43.22 | ₹4,322.00 |
| 500+ | ₹39.32 | ₹19,660.00 |
| 1,000+ | ₹36.92 | ₹36,920.00 |
1 × ₹76.24
₹76.24
excl. GST
₹89.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
BSS87,115
₹76.24 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 20pF
- Ciss-Input Capacitance
- 120pF
- Pd - Power Dissipation
- 580mW;12.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 400mA
- Reverse Transfer Capacitance (Crss)
- 10pF
- RDS(on)
- 3Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.5nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
N-channel enhancement mode vertical Double-Diffused Field-Effect Transistor (DMOSFET) in a SOT89 (SC-62) medium power and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- Relay driver
- High-speed line driver
- Load-side loadswitch Switching circuits
Key features
- Direct interface to Complementary (C-MOS) transistor and Transistor-Transistor Logic (TTL) devices.
- Very fast switching
- No secondary breakdown
