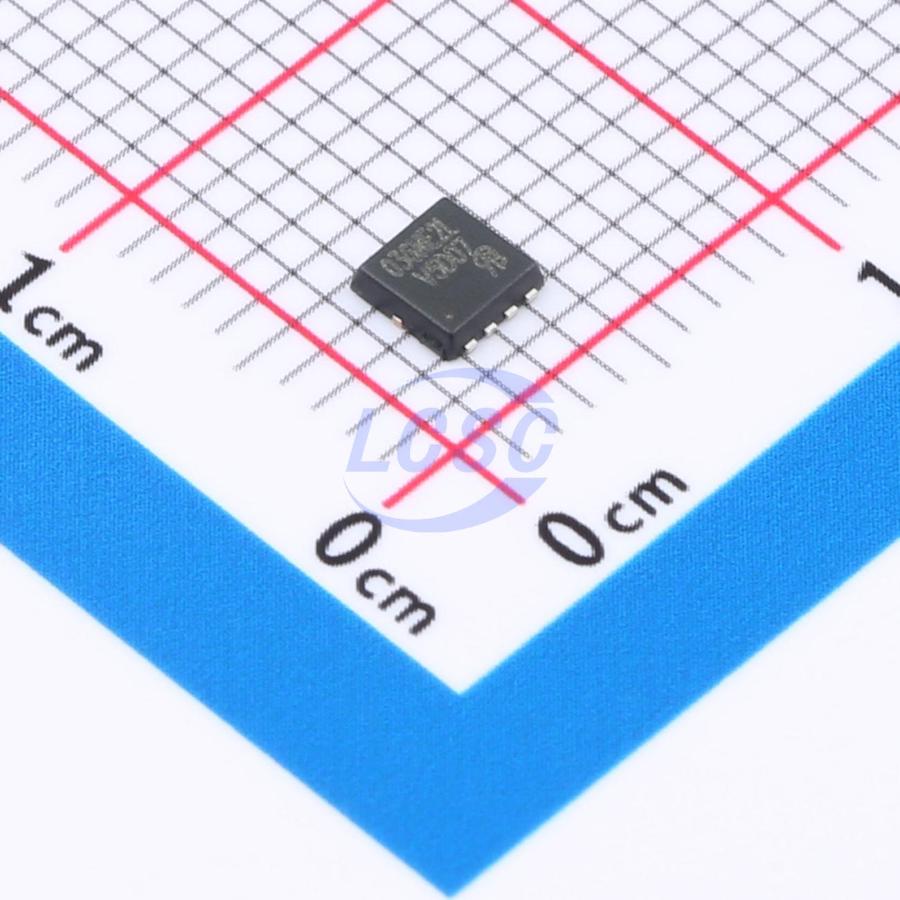

BSZ036NE2LS-VB
N-Channel 20V 100A 250W Surface Mount DFN3x3-8
DFN3x3-8RoHSActive
MOSFET N-CH 20V 100A DFN3x3-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BSZ036NE2LS-VB
- Store part #
- C47993999
- Package / case
- DFN3x3-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C47993999
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.88 | ₹98.88 |
| 10+ | ₹82.15 | ₹821.50 |
| 30+ | ₹73.89 | ₹2,216.70 |
| 100+ | ₹65.63 | ₹6,563.00 |
| 500+ | ₹47.38 | ₹23,690.00 |
| 1,000+ | ₹44.77 | ₹44,770.00 |
1 × ₹98.88
₹98.88
excl. GST
₹116.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSZ036NE2LS-VB
₹98.88 for 1 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 1.725nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 6.5nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 81.5pF
- RDS(on)
- 2.5mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 257nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.31 g
Overview
Applications
- OR gate function - Server - DC/DC conversion
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDMC2D8N025S-VB#C47993843VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹116.25 · 10 in stock | View |
 | BSZ033NE2LS5-VB#C47993863VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 20 | ₹104.50 · 20 in stock | View |
 | BSZ018NE2LSI-VB#C47993864VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹98.88 · 10 in stock | View |
 | BSZ018NE2LS-VB#C47993865VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 135 | ₹104.50 · 135 in stock | View |
 | CSD16327Q3-VB#C45662507VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹98.88 · 10 in stock | View |
