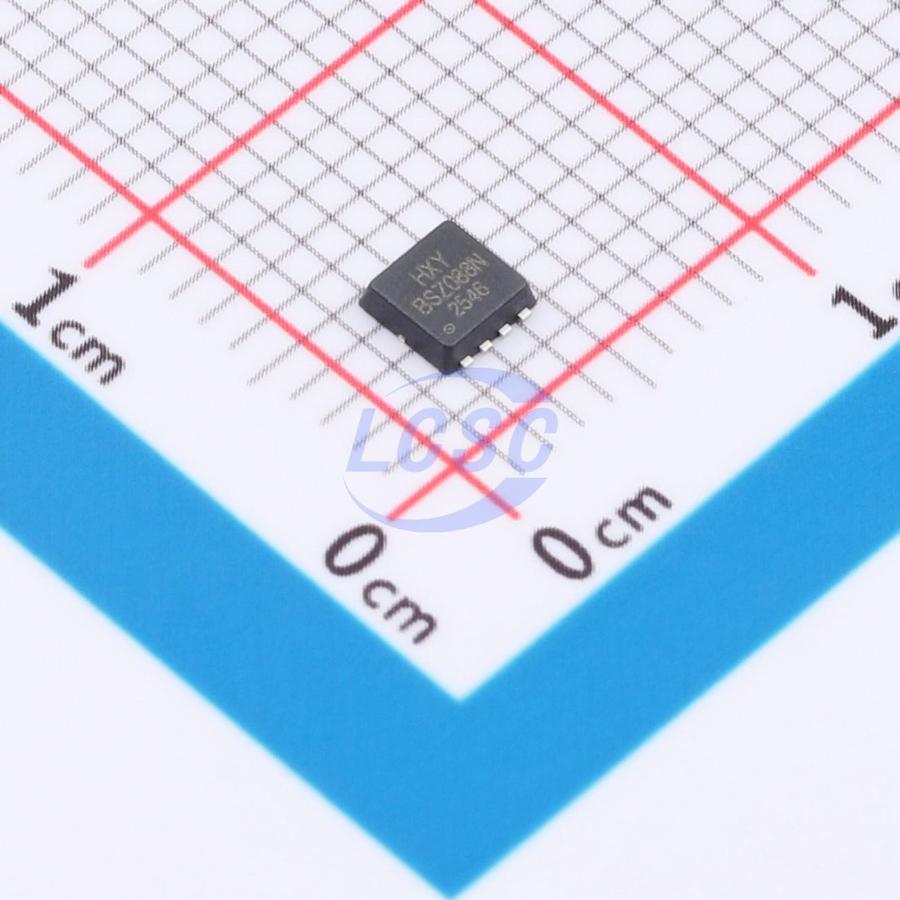

BSZ088N03MSGATMA1-HXY
37.5W 30V 35A 7.5mΩ@10V 1 N-channel N-Channel DFN-8L(3x3) Single FETs, MOSFETs
DFN-8L(3x3)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- BSZ088N03MSGATMA1-HXY
- Store part #
- C53263285
- Package / case
- DFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
77 in stock
#C53263285
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.26 | ₹82.26 |
| 10+ | ₹67.45 | ₹674.50 |
| 30+ | ₹60.14 | ₹1,804.20 |
| 100+ | ₹52.84 | ₹5,284.00 |
| 500+ | ₹48.54 | ₹24,270.00 |
| 1,000+ | ₹46.19 | ₹46,190.00 |
1 × ₹82.26
₹82.26
excl. GST
₹97.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSZ088N03MSGATMA1-HXY
₹82.26 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 131pF
- Ciss-Input Capacitance
- 940pF
- Pd - Power Dissipation
- 37.5W
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 35A
- Reverse Transfer Capacitance (Crss)
- 109pF
- RDS(on)
- 7.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.8nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.07 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SISA96DN-T1-GE3-HXY#C22366660HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 265 | ₹17.93 · 265 in stock | View |
 | CSD17578Q3A-HXY#C22367275HXY MOSFET · DFN-8(3x3) | HXY MOSFET | DFN-8(3x3) | 76 | ₹57.03 · 76 in stock | View |
 | CSD17579Q3A-HXY#C22367278HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 10 | ₹24.63 · 10 in stock | View |
 | PXN9R0-30QLJ-HXY#C51949290HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 60 | ₹41.33 · 60 in stock | View |
 | AONR32314-HXY#C51949294HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 5 | ₹36.98 · 5 in stock | View |
