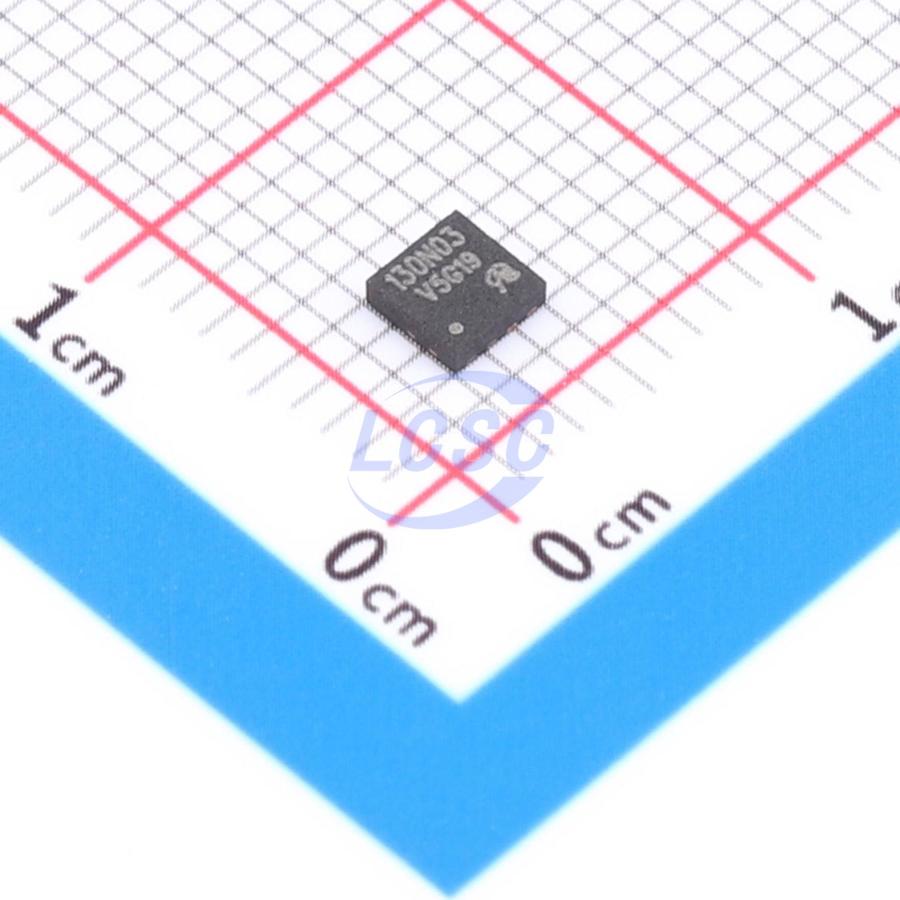

BSZ130N03MS G-VB
30V 30A 60W 1 N-channel N-Channel DFN-8(3x3) Single FETs, MOSFETs
DFN-8(3x3)RoHSActive
MOSFET N-CH 30V 30A DFN-8(3x3)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BSZ130N03MS G-VB
- Store part #
- C50313891
- Package / case
- DFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C50313891
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.96 | ₹66.96 |
| 10+ | ₹53.40 | ₹534.00 |
| 30+ | ₹47.59 | ₹1,427.70 |
| 100+ | ₹40.48 | ₹4,048.00 |
| 500+ | ₹37.26 | ₹18,630.00 |
| 1,000+ | ₹35.31 | ₹35,310.00 |
1 × ₹66.96
₹66.96
excl. GST
₹79.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSZ130N03MS G-VB
₹66.96 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 30A
- Output Capacitance(Coss)
- 236pF
- Ciss-Input Capacitance
- 900pF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 13mΩ@10V;19mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V;9nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
Applications
- DC-DC Conversion
- Low-Side Switching
- Notebook Computers
- Gaming Devices
Key features
- Halogen-free
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBQF1310#C481056VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 293 | ₹91.05 · 293 in stock | View |
 | SI7230DN-T1-GE3-VB#C50313882VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹66.96 · 10 in stock | View |
 | DMS3014SFGQ-7-VB#C50313900VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹66.96 · 10 in stock | View |
 | DMS3014SFGQ-13-VB#C50313902VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹66.96 · 10 in stock | View |
 | FDMC7692S-VB#C7524949VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 7 | ₹77.30 · 7 in stock | View |
