TECH PUBLICDatasheet (PDF)

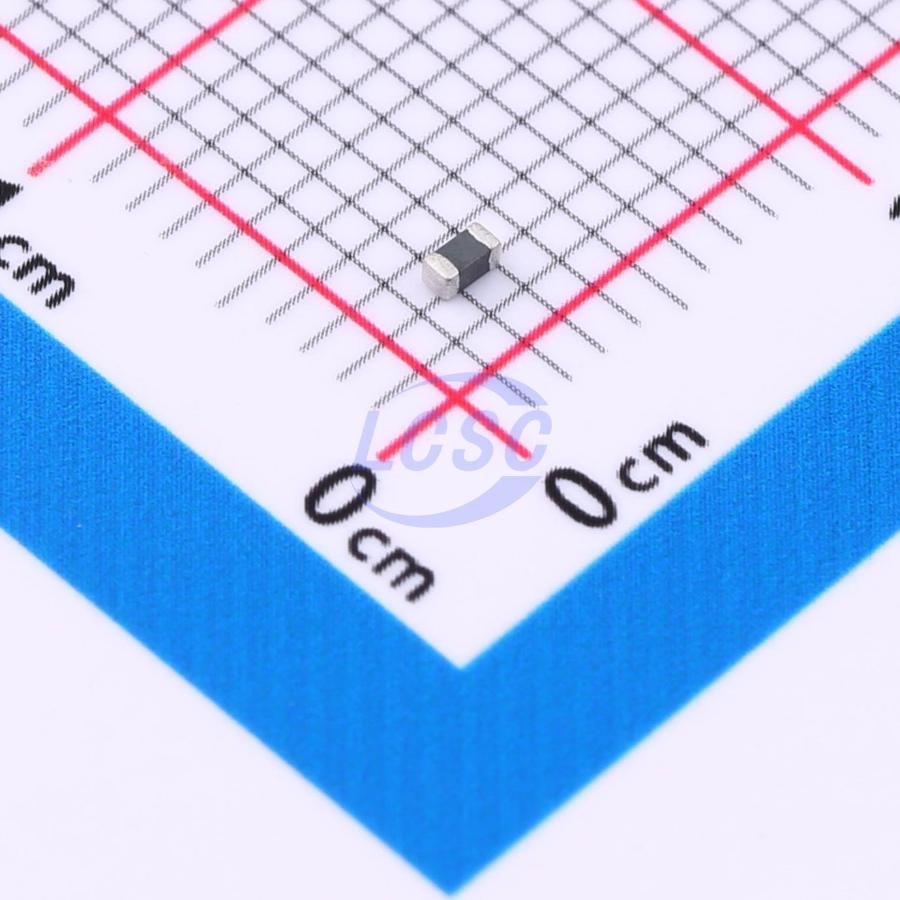

BTR06A5-TP
9V Bidirectional 5.5V 0603 TVS Diodes
0603RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- BTR06A5-TP
- Store part #
- C42406344
- Package / case
- 0603
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,800 in stock
#C42406344
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.01 | ₹80.20 |
| 200+ | ₹3.16 | ₹632.00 |
| 600+ | ₹2.70 | ₹1,620.00 |
| 4,000+ | ₹2.32 | ₹9,280.00 |
| 8,000+ | ₹2.06 | ₹16,480.00 |
| 20,000+ | ₹1.93 | ₹38,600.00 |
20 × ₹4.01
₹80.20
excl. GST
₹94.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BTR06A5-TP
₹80.20 for 20 + GST
Specifications
- Clamping Voltage
- 9V
- Operating Temperature
- -55℃~+125℃
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.039 g
Overview
Applications
- Notebook PCs and PC peripherals
- Home audio, car audio
- Monitors and flat panel displays
- Set-top boxes and OTT boxes, DVB-T
- Industrial equipment
Key features
- 0402 or 0603 package
- I/O line protection and more
- Low clamping voltage
- Low leakage current
- Solid-state silicon avalanche technology
- Response time typically less than 0.5ns
- Lead-free versions RoHS compliant
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 30A (5/50ns)
- IEC 61000-4-5 (Surge) 5A (8/20ns)
