ROHMDatasheet (PDF)

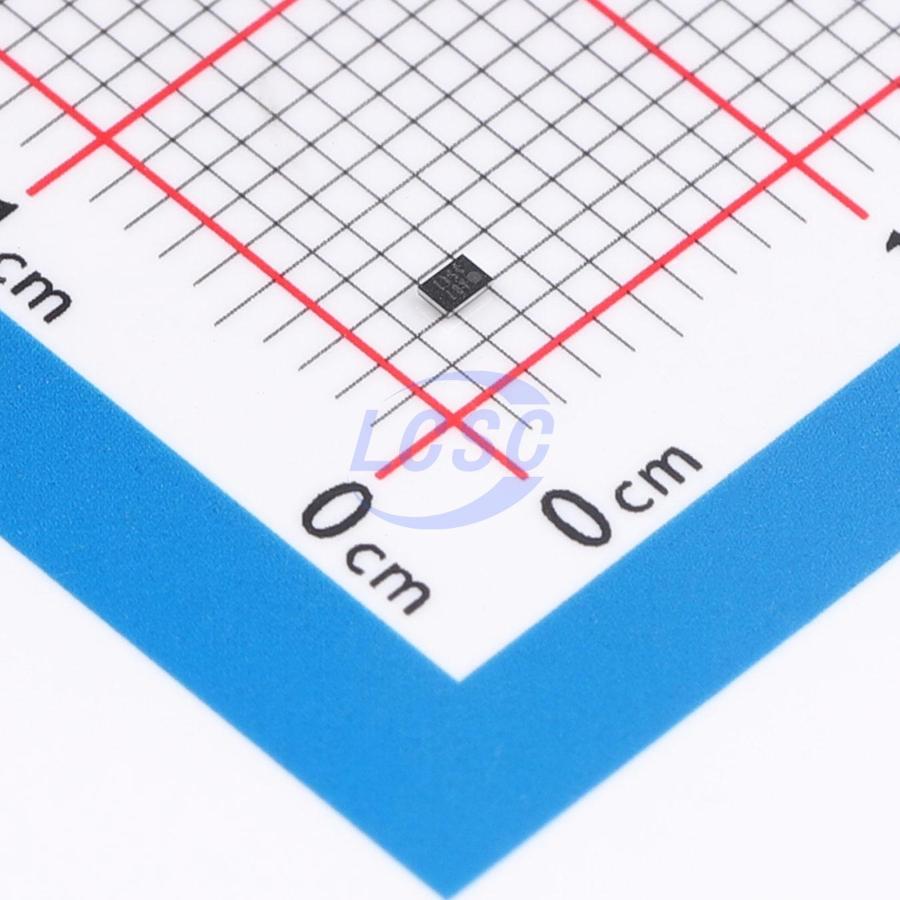

BU90004GWZ-E2
5.4MHz Step-down type Fixed 1A 1.8V WLCSP-6 Voltage Regulators - DC DC Switching Regulators RoHS
WLCSP-6ROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- BU90004GWZ-E2
- Store part #
- C2071796
- Package / case
- WLCSP-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29 in stock
#C2071796
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹151.68 | ₹151.68 |
| 10+ | ₹147.81 | ₹1,478.10 |
| 30+ | ₹145.23 | ₹4,356.90 |
| 100+ | ₹142.63 | ₹14,263.00 |
1 × ₹151.68
₹151.68
excl. GST
₹178.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BU90004GWZ-E2
₹151.68 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 5.4MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection
- Topology
- Buck
- Output Type
- Fixed
- Operating Voltage
- 2.3V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Output Voltage
- 1.8V
- Quiescent Current
- 45uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.005 g
Overview
Buck switching regulator with integrated power MOSFET. Delivers up to 1.0A load current with an input voltage range of 3.0V to 5.5V, suitable for battery-powered portable applications. The BU9000xGWZ features a mode control pin that allows users to select between forced PWM mode or automatic PFM/PWM switching mode for power-saving operation at light load currents. Features include: - Fast transient response - Automatic PFM/PWM operation - Forced PWM operation - Internal soft-start - Undervoltage lockout - Overcurrent protection - Thermal shutdown Package: UCSP35L1 Dimensions: 1.30mm x 0.90mm x 0.40mm (W x D x H) The BU9000xGWZ is a synchronous step-down DC/DC converter that achieves fast transient response from light to heavy loads via a hysteretic PWM control system and constant-current PFM control system.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| RP509Z181B-E2-F#C2473470Nisshinbo Micro Devices Inc. · WLCSP-6-P6 | Nisshinbo Micro Devices Inc. | WLCSP-6-P6 | On request | ₹164.81 · 0 in stock | View | |
| RP519Z181B-E2-F#C2476771Nisshinbo Micro Devices Inc. · WLCSP-6-P8 | Nisshinbo Micro Devices Inc. | WLCSP-6-P8 | On request | ₹191.97 · 0 in stock | View | |
| RP509Z161B-E2-F#C6986878Nisshinbo Micro Devices Inc. · WLCSP-6 | Nisshinbo Micro Devices Inc. | WLCSP-6 | On request | ₹116.29 · 0 in stock | View | |
| RP509Z151A-E2-F#C2473488Nisshinbo Micro Devices Inc. · WLCSP-6-P6 | Nisshinbo Micro Devices Inc. | WLCSP-6-P6 | On request | ₹164.81 · 0 in stock | View | |
| ADP2138ACBZ-1.5-R7#C659072ADI · WLCSP-6 | ADI | WLCSP-6 | On request | ₹226.47 · 0 in stock | View | |
