ROHM

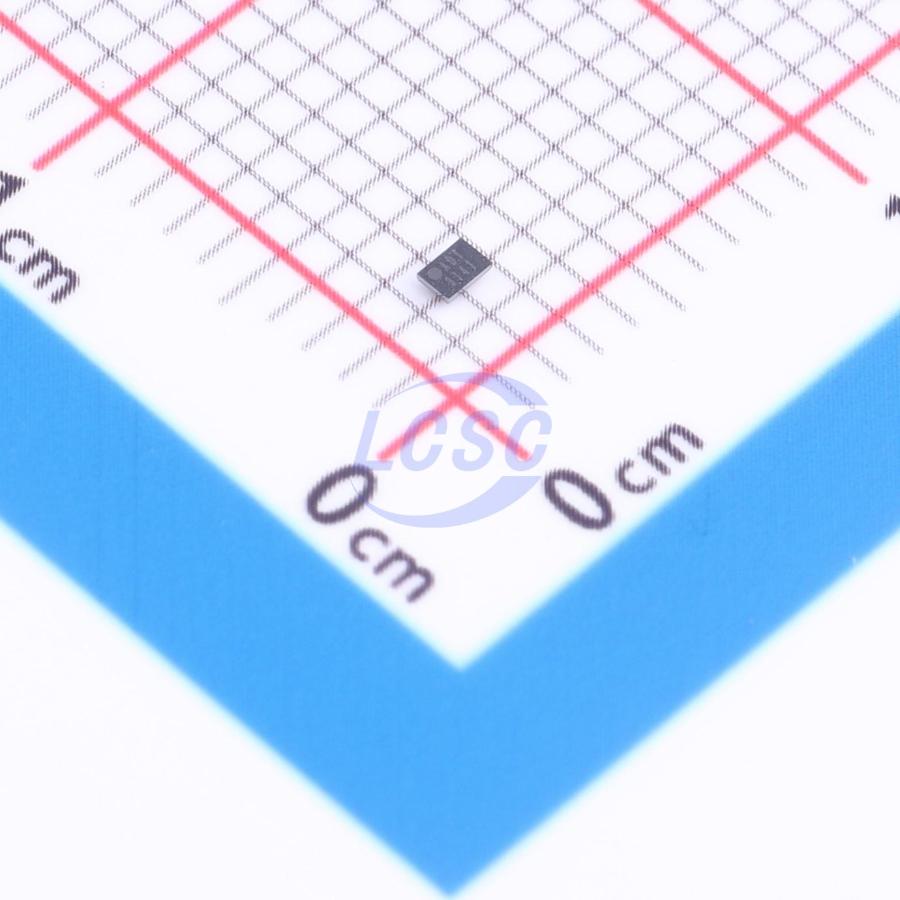

BU90104GWZ-E2

6MHz Step-down type Fixed 1A 1.8V UCSP35L1-6(0.9x1.3) Voltage Regulators - DC DC Switching Regulators RoHS

UCSP35L1-6(0.9x1.3)ROHS3 CompliantActive

High Efficiency Synchronous Step-Down Switching Regulator

Manufacturer: ROHM
Manufacturer part #: BU90104GWZ-E2
Store part #: C2071125
Package / case: UCSP35L1-6(0.9x1.3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25 in stock

#C2071125

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹119.07	₹119.07
10+	₹116.28	₹1,162.80
30+	₹114.56	₹3,436.80
100+	₹112.63	₹11,263.00

Quantity (min 1)

1 × ₹119.07

₹119.07

excl. GST

₹140.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

BU90104GWZ-E2

₹119.07 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 6MHz
Function: Step-down type
Number of Outputs: 1
Features: Light load efficient mode;Overcurrent Protection;Output discharge
Topology: Buck
Output Type: Fixed
Operating Voltage: 2.3V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 1A
Output Voltage: 1.8V
Quiescent Current: 45uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.164 g

Overview

The BU90104GWZ are a high efficiency 6MHz synchronous step-down switching regulator with ultra low current PFM mode. It provides up to 1.0A load current and an input voltage range from 3.0V to 5.5V, optimized for battery powered portable applications. BU90104GWZ has a mode control pin that allows the user to select Forced PWM(Pulse Width Modulation) mode or PFM(Pulse Frequency Modulation) and PWM auto change mode utilized power save operation at light load current.
