VBsemi ElecDatasheet (PDF)

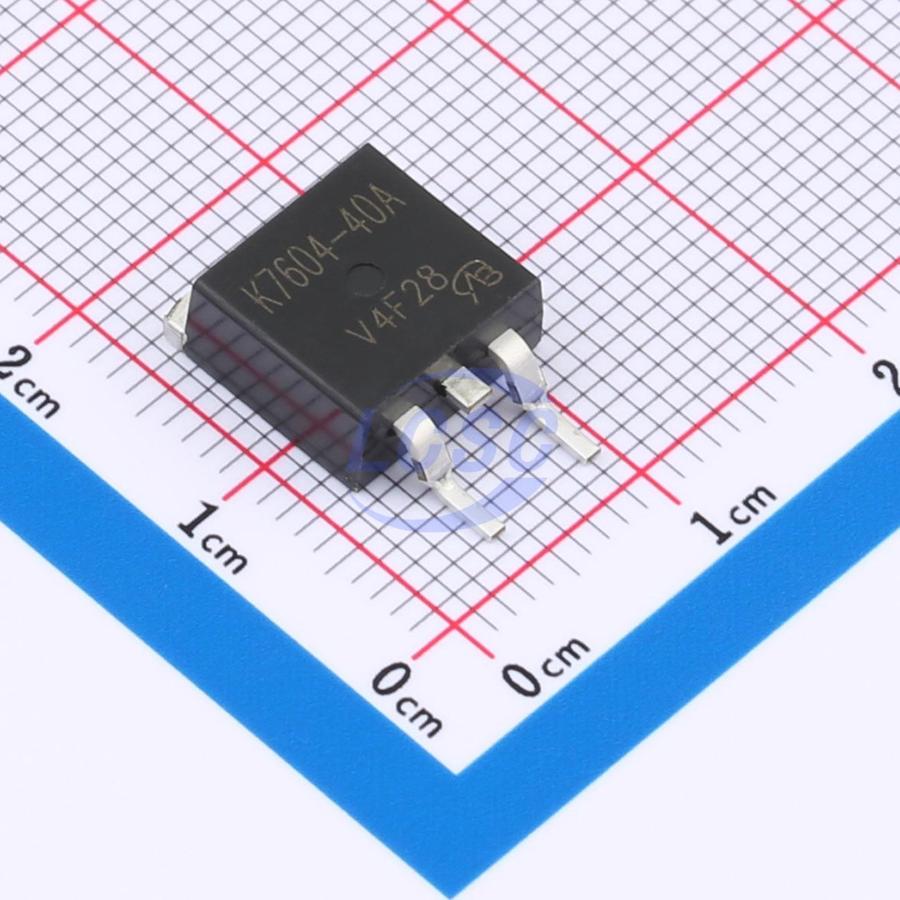

BUK7604-40A-VB
N-Channel 40V 100A 150W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 40V 100A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BUK7604-40A-VB
- Store part #
- C29778933
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29778933
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.93 | ₹102.93 |
| 10+ | ₹82.98 | ₹829.80 |
| 50+ | ₹72.90 | ₹3,645.00 |
| 100+ | ₹63.03 | ₹6,303.00 |
| 500+ | ₹56.93 | ₹28,465.00 |
| 1,000+ | ₹53.99 | ₹53,990.00 |
1 × ₹102.93
₹102.93
excl. GST
₹121.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
BUK7604-40A-VB
₹102.93 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 1.395nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 3.33nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 95pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 53.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.95 g
Overview
Key features
- Lightning Power MOSFET
- Maximum junction temperature 175°C
- 100% gate resistance (Rg) and unclamped inductive switching (UIS) tested
- Material category: See RoHS compliant and halogen-free for compliance definition
- N-channel MOSFET
