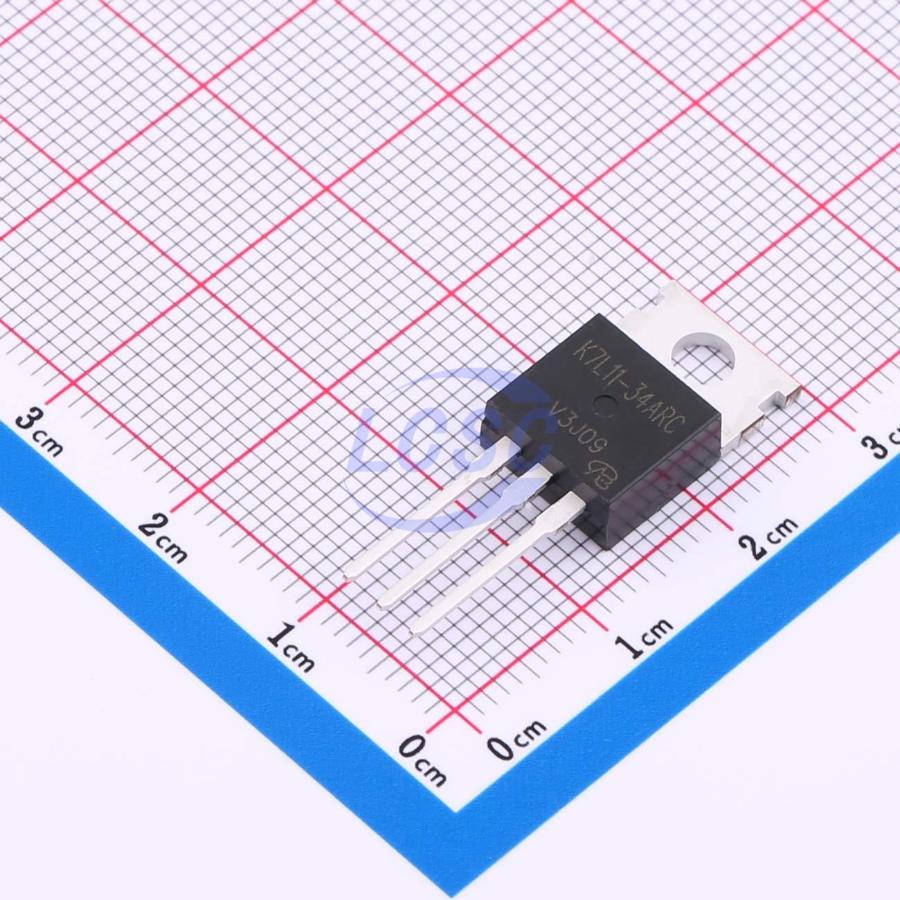

BUK7L11-34ARC-VB
N-Channel 30V 70A 71W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 30V 70A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BUK7L11-34ARC-VB
- Store part #
- C19190210
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
57 in stock
#C19190210
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.81 | ₹83.81 |
| 10+ | ₹69.23 | ₹692.30 |
| 50+ | ₹49.64 | ₹2,482.00 |
| 100+ | ₹41.81 | ₹4,181.00 |
| 500+ | ₹38.33 | ₹19,165.00 |
| 1,000+ | ₹36.36 | ₹36,360.00 |
1 × ₹83.81
₹83.81
excl. GST
₹98.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
BUK7L11-34ARC-VB
₹83.81 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 260pF
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 71W
- Reverse Transfer Capacitance (Crss)
- 95pF
- RDS(on)
- 10mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 75nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.1 g
Overview
Applications
- Motor Drive - Power Bank
Key features
- Trench power MOSFET
- Low thermal resistance package
- 100% Rg and UIS tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP72T03GP-VB#C22389257VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹68.28 · 10 in stock | View |
 | IRL3103D2PBF-VB#C22389319VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 1 | ₹65.75 · 1 in stock | View |
 | IPP10N03LBG-VB#C29779837VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹65.75 · 10 in stock | View |
 | IRL3102PBF-VB#C22389318VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 35 | ₹77.73 · 35 in stock | View |
 | STP60NE03L-10-VB#C29779366VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹65.75 · 10 in stock | View |
