NexperiaDatasheet (PDF)

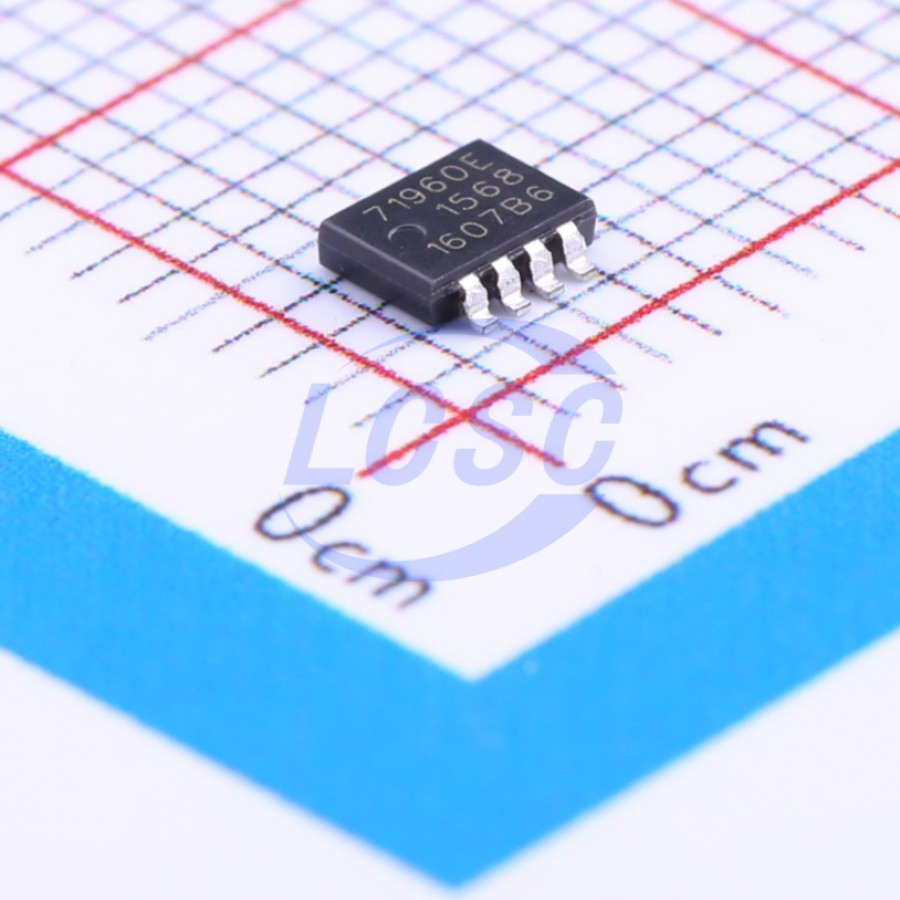

BUK7M19-60EX
55W 60V 36A 19mΩ@10V 1 N-channel N-Channel SOT1210 Single FETs, MOSFETs RoHS
SOT1210ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BUK7M19-60EX
- Store part #
- C179350
- Package / case
- SOT1210
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,499 in stock
#C179350
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.52 | ₹109.52 |
| 10+ | ₹88.88 | ₹888.80 |
| 30+ | ₹78.45 | ₹2,353.50 |
| 100+ | ₹68.24 | ₹6,824.00 |
| 500+ | ₹62.15 | ₹31,075.00 |
| 1,500+ | ₹58.90 | ₹88,350.00 |
1 × ₹109.52
₹109.52
excl. GST
₹129.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BUK7M19-60EX
₹109.52 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 141pF
- Ciss-Input Capacitance
- 1.055nF
- Pd - Power Dissipation
- 55W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 36A
- Reverse Transfer Capacitance (Crss)
- 104pF
- RDS(on)
- 19mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17.3nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
Standard-level N-channel MOSFET using TrenchMOS technology in LFPAK33 (Power33) package. This product has been designed and qualified to AEC Q101 standards for high-performance automotive applications.
Applications
- 12 V automotive systems
- Motor, lamp, and solenoid control
- Transmission control
- Ultra-high-performance power switching
Key features
- Q101 compliant
- Repetitive avalanche rated
- 175°C rated for high thermal demand environments
- True standard-level gate with VGS(th) > 1 V at 175°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK7M22-80EX#C549888Nexperia · SOT1210 | Nexperia | SOT1210 | 91 | ₹212.63 · 91 in stock | View |
 | BUK7M12-60EX#C179349Nexperia · SOT1210 | Nexperia | SOT1210 | On request | ₹54.28 · 0 in stock | View |
 | BUK9M12-60E,115#C179360Nexperia · SOT1210 | Nexperia | SOT1210 | On request | ₹214.51 · 0 in stock | View |
 | BUK9M12-60EX#C179361Nexperia · SOT1210 | Nexperia | SOT1210 | On request | ₹117.79 · 0 in stock | View |
